Brand Name : | ANC |
Model Number : | FC Male-Female Attenuator |
Certification : | RoHS |
Price : | please ask |
Payment Terms : | T/T, Western Union |
Supply Ability : | 5000pcs per day |
Delivery Time : | 3-5 working days |

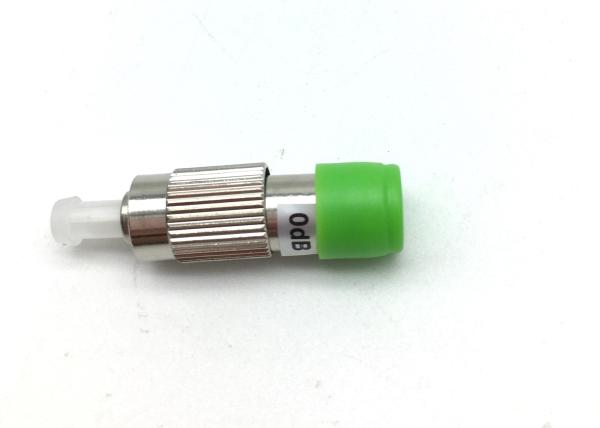

Single Mode FC/UPC Male to FC/APC Female Fiber Optic Attenuator 0dB
Description:
FC/UPC Male to FC/APC Female Fiber Optic Attenuator manufactured by
ANC International Co., Limited is a component installed in a fiber
optic transmission system that reduces the power in the optical
signal. And it is often used to limit the optical power received by
the photo detector to within the limits of the optical receiver.
The attenuation range of such fiber attenuator can be any dB from
0dB to 30dB at 1dB increment. The attenuator type has but not limit
to SC/UPC, SC/APC , FC/UPC, FC/APC, LC/UPC, LC/APC, ST/PC, MU fiber
optic attenuators.
Fiber optic attenuators are mainly used in fiber optic to debug
optical power performance & optical instrument calibration
correction & fiber signal attenuation to ensure the optical power
in a stable and desired leve in the link without any changes on its
original transmission wave. Doped fiber is used inside to provide
low wavelength sensitivity, high stability, high return loss and
good reliability.
ANC adopts mature attenuation fiber technology, and is able to
provide high quality fiber optic attenuators at favorable price and
fast delivery. In ANC, single mode and multimode 62.5/125 or 50/125
fiber optic attenuators are available.
Features:
Accurate tolerance;
Attenuation levels ranging from 0dB to 30dB
Low back reflection
High power endurance
Maximum stability, reliability and flat spectral response
100% IL, RL and visual inspection tested
UPC, APC option;
Good mechanical performance;
Easy to connect/disconnect (Push-Pull)
Application:
Optical system test
FTTH, CATV
High power device test
DWDM
EDFA loop tests and measurements
Specification:
Type | SM | MM |
Operation Wavelength | 1260nm~1650nm | |
Tested Wavelength | 1310nm/1550nm | 850nm |
Fiber Type | Single mode 9/125 | Multimode 50/125 or 62.5/125 or OM3 |
Attenuation | 0-5dB,±0.5dB; | 0-5dB, ±0.5dB |
5dB-20dB, ±10% | 5dB-20dB, ±10% | |
Return Loss (dB) | UPC≥50dB; APC ≥60dB | PC ≥ 35dB |
Optical Input Power | ≤200mw | |
Operating Temp. Range | -40℃ ~ 85℃ |
