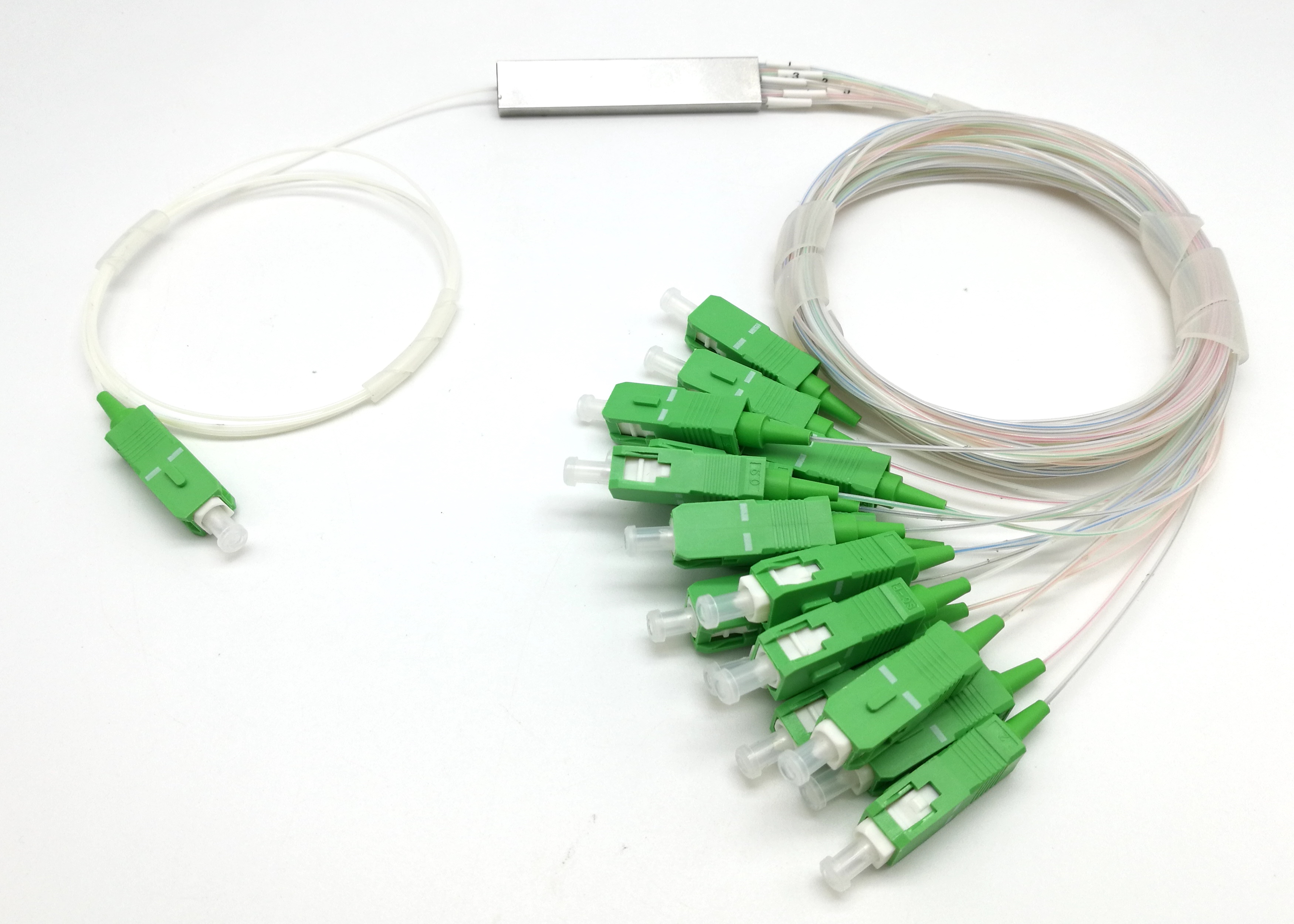

1x16 PLC Fiber Optic Splitter G657A1 Mini Tube with SC/APC
Connector
Description
1x16 PLC Fiber Optic Splitters manufactured by ANC International
Co., Limited is single mode splitters having one input fiber and 16
output fibers. This plc splitter can provide an even split ratio
across all fibers regardless of input wavelength. Mini tube PLC
Splitters are with 900µm loose tube G657A1 fiber and terminated or
unterminated as per your needs. Unconnectorized PLC splitters come
with no connectors for easy splicing or connectorization.
Connectorized PLC Splitters are available with your choice of Fiber
Optic Connectors: LC/UPC, LC/APC, SC/UPC, SC/APC, FC/UPC, FC/APC,
and ST/UPC. This mini tube PLC splitter has the advantages of small
volume, wide bandwidth, high reliability, excellent uniformity. PLC
fiber optic splitter is especially suitable for passive optical
networks (EPON, BPON, GPON) which is connected with the terminal
equipment and realize the optical power distribution.
ANC can produce full range of PLC splitters, such as 1×2, 1×4, 1×8,
1×16, 1×32, 1×64, 2×4, 2×8, 2×16, 2×32, 2×64 with following package
Bare fiber series
Mini loose tube package
ABS Module type
LGX box type
Rack and Wall Mount patch panel for PON application.
Inline fiber optic splice closure type
All products meet GR-1209-CORE-2001 and GR-1221-CORE-1999
requirements.
Features
Operating wavelength: 1260-1650 nm
Port: 1x16 (1 input, 16 output)
Split Ratio: Even ratio
Fiber type: 900μm ITU G.657A1 for fiber input/output
900µm loose tube fiber for easy stripping, splicing, or terminating
Pigtail: diameter 0.9mm, length 1m (length and color is customized)
Steel tube: 60x12x4 mm
High Quality PLC design features a protective metal casing around
the fibers
Connector type: SC/APC, SC, FC/APC or customized
Telcordia GR-1221 and 1209 compliant
Compact design, suitable for installation in optical equipments
Applications
Telecommunication
PON Networks
FTTH
CATV
Video Transmission
Compliance
Telcordia GR-1209-CORE-2001
Telcordia GR-1221-CORE-1999
RoHS

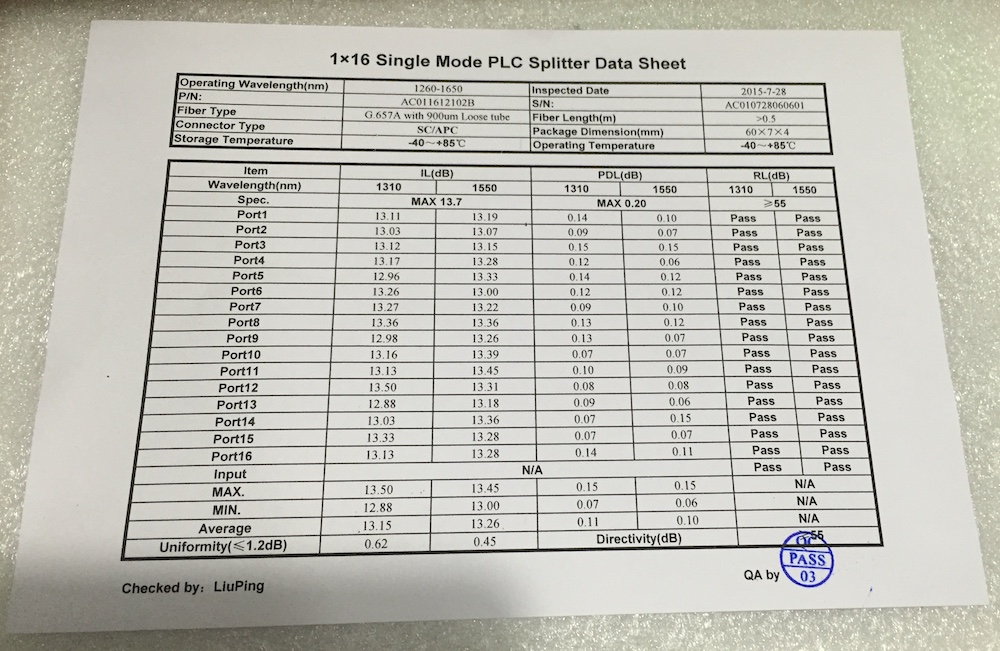

Technical Data
1xN Splitter
| Parameters | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 1×128 |
| Operating Wavelength | 1260～1650nm |
| Fiber Type | Default G657A1 or customer specified |
Max. Insertion Loss ( P/S Grade ) (dB) | 3.8 /4.0 | 7.2/7.4 | 10.3/10.5 | 13.5/13.7 | 16.5/16.9 | 20.5/21.0 | 23.8/24.2 |
| Max. Loss Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2.0 | 2.5 |
| Max. Polarization Dependent Loss (dB) | 0.1 | 0.1 | 0.1 | 0.2 | 0.25 | 0.3 | 0.4 |
| Return Loss (dB) | ≦-55 |
| Directivity (dB) | ≦-55 |
Temperature Stability (-40～85°C)(dB) | ≦0.3 | ≦0.5 |
| Operating Temperature | -40～85°C |
| Storage Temperature | -40～85°C |
* S/P : ‘S’ means ‘Standard Grade’, and, ‘P’ means ‘Premium Grade
* IL values are measured @1310&1550nm
* IL, PDL, Uniformity values are for “Without connectors”
1xN Splitter ( Dimension: LxWxH, mm )
| Parameters | 1x2,1x4,1x8 | 1x16 | 1x32 | 1×64 | 1×128 |
| SUS Case with Ribbon Fiber | 40x4x4 | 50x7x4 | 50x7x4 | 60x12x4 | N/A |
| SUS Case with 900um tube | 60x7x4 | 60x12x4 | 80x20x6 | 100x40x6 | N/A |
| Plastic Module Box | 100x80x10 | 120x80x18 | 140x115x18 |
| 19” Rack-mount distribution box or cabinet | 19" 1U | 19" 2U |
