MM 50/125 62.5/125 ST to ST Fiber Optic Patch Cord LSZH 3.0mm Duplex Jacket

Description

MM Duplex 3.0mm ST to ST Fiber Optic Patch Cord manufactured by ANC International Co., Limited combines duplex 62.5/125 multimode fiber cable with machine-polished ST connectors. MM ST fiber optic patch cord provides a cost-effective solution that offers high bandwidth and transmission rates over short distances. This high-quality multimode fiber optic patch cable is designed for ethernet applications. Each connection has great durability and is resistant to pulls, strains and impacts during installation. Each cable is 100% optically inspected and tested for insertion loss before you receive it. A pull-proof jacket design surrounds the 62.5/125 multimode fiber which is immune to electrical interference. The jackets are available in a variety of material, including standard PVC (OFNR), Plenum (OFNP), and Low-Smoke (LSZH).

Fiber optic patch cord is one of most commonly used components in fiber optic network. Fiber optic patch cords sometimes are also called fiber optic jumper or fiber optic patch cables. Generally there are two types of fiber optic patch cords: single mode fiber optic patch cords and multimode fiber optic patch cords. Here the word mode means the transmitting mode of the fiber optic light in the fiber optic cable core. Usually single mode fiber optic patch cord are with 9/125-fiber glass and is yellow jacket color, multi mode fiber optic patch cord are with 50/125 or 62.5/125 fiberglass and is orange color.

Features

Connectors: ST/ST
Core/Cladding Diameters: 62.5mm/125mm
Outer Diameter: 3mm
Minimum Return Loss @ 850nm/1310nm: 20dB/20dB
Max Attenuation (dB/km) at 850nm/1310nm: 0.7/0.6
Minimum Modal Bandwidth (MHz-km) at 850nm/1310nm: 200/600
100% tested for reliabilty and performance
Offers the optimal solution for high-speed data transmission
SC, ST, FC, LC, E2000, MU, MTRJ, DIN, MPO, MTP, D4, FDDI, LX.5, VF45, connector optional
RoHS compliant
3D Interferometer request optional

Meets ANSI/TIA/EIA 568-B.3 and ISO/IEC 11801 Standards.
Configurations with different length options.
Patch cords are easy-to-install and environmentally stable

Applications

Fast Ethernet

Fibre Channel

Data Network

LAN, FTTX

CATV

Technical Data

Parameter for Multimode ST to ST patch cord

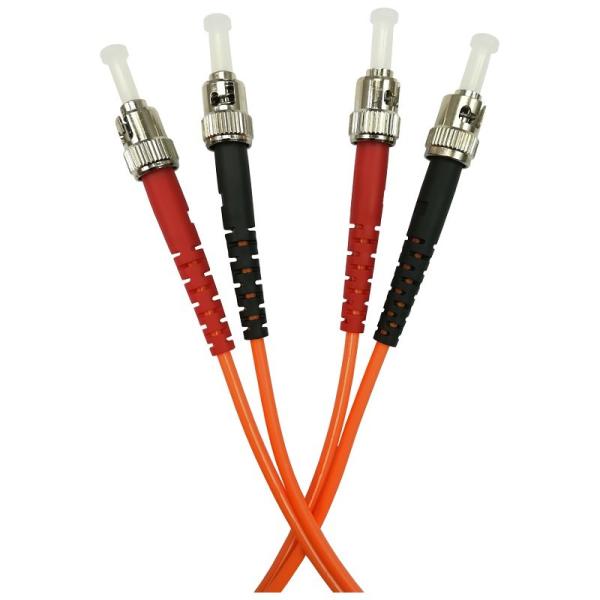

Product Pictures

ANC International Co., Limited is an experienced OEM & ODM manufacturer and supplier for fiber optic patch cord and pigtails, fiber optic adapters, attenuators, PLC Splitters, CWDM, DWDM, OADM, fiber switch, fiber isolator, circulator, SFP transceiver, media converter, fiber optic patch panel, termination boxes, fiber optic cleaners and tools in Shenzhen, China.

Established in year 2005, ANC has been growing with clients over pass 10 years. Right now, ANC has plastic and adapter production plant in Hangzhou, has patch cord & attenuator assembly line in Shenzhen. Its products have been selling to big companies in China and reputed clients worldwide.

ANC focus on fiber optic products only. It aims to provide high quality and low lost customized products to meet client request.
