Low PDL 1310 1550nm SM 3X3 Fiber Optic Coupler

3X3 SM Monolithic Fiber Optic Coupler 1310 1550nm with FC/APC Connector

Description

Even ratio 3x3 SM Monolithic Fiber Optic Coupler manufactured by ANC International Co., Limited is built by using fused biconical taper (FBT) technology. It can be used to split the input signal at 33:33:33 even ratios with low insertion loss. This fused monolithic configuration provides optimum loss performance and environmental stability in a range of application areas. These 3x3 fiber couplers were designed for optical modules and the fiber sensors, fiber testing instruments. The products are Telcodia GR-1221/1209-Core qualified and RoHS compliant.

Specification

Low excess loss

Low PDL

Mini size
High Reliability & Stability

Environmentally stable and reliable

High return loss

Features

Excellent uniformity

Telcordia (Bellcore) compliant

Usage

Optical communication systems
Testing instrument
Optical fiber sensors
Lab & Research

Technical Data

Parameter	3x3 SSC	4x4 SSC	3x3 DWC	4x4 DWC
Operating Wavelength (nm)	1310 or 1550 others on request		1310, 1550
Operating Bandwidth (nm)	±15		±40
Grade	P/S	P/S	P/S	P/S
Typical Excess Loss (dB)	0.1/0.15	0.1/0.15	0.1/0.15	0.1/0.15
Insertion Loss (dB)	≤5.6/5.8	≤7.5/8.0	≤5.8/6.2	≤7.5/8.0
PDL (dB)	≤0.15/0.20	≤0.20/0.30	≤0.15/0.20	≤0.20/0.30
Uniformity (dB)	≤1.0/1.4	≤1.0/1.4	≤1.3/1.6	≤1.3/1.6
Directivity (dB)	≥ 55
Operating Temperature (°C)	-40°C~+85°C

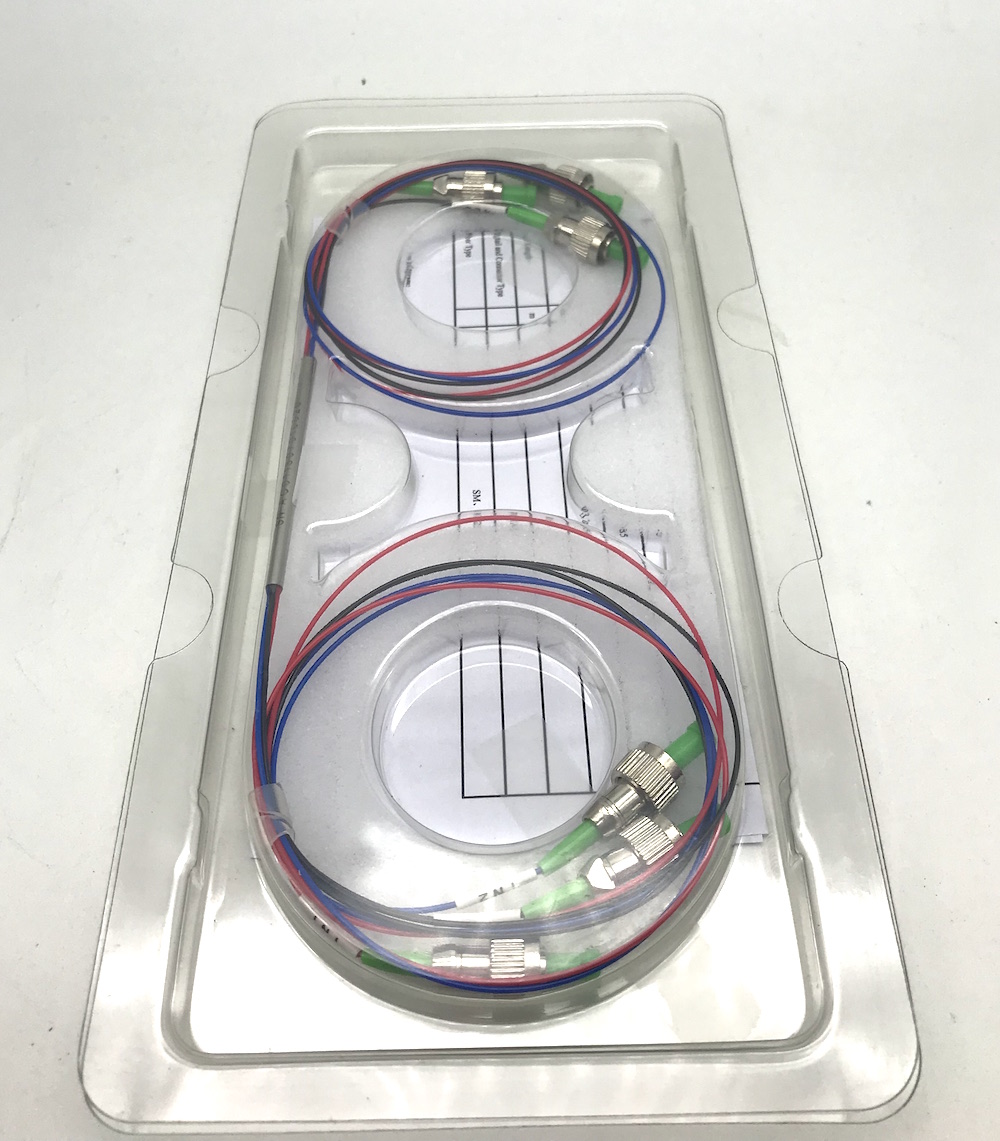

Product Picture

Ordering Information

PN# SMMC-AAAA-BB-CC-D-EE-FF

AAAA	BB	CC	D	EE	FF
Wavelength	Port	Fiber Type	Fiber Jacket	Fiber Length	Connector
1310	3x3	SM-SMF-28e	B-250um Bare	05-0.5m	NE-None
1550	SS-Specify	SS-Specify	L-900um Loose	08-0.8m	FA-FC/APC
SSSS- specify			C-3.0mm Cable	10-1.0m	FP-FC/PC
			S-Specify	15-1.5m	SA-SC/APC
				SS-Specify	LA-LC/APC
					SS-Specify
