2x2 Fiber Optic Coupler SM Dual Window 1310 / 1550nm 1m with FC/APC Connector

Description

2x2 Fiber Optic Coupler manufactured by ANC International Co., Limited is mainly used to distribute light from a main fiber into two or more fibers. Fused Biconical Taper (FBT) Splitter is made by wrapping two fiber cores together, putting tension on the optical fibers, and then heating the junction until the two fibers are tapered from the tension and fused together. This coupler features good uniformity, low excess loss, and very low polarization sensitivity.

Fiber optic coupler is one type of fiber optic component that allows for redistribution of optical signals. A fiber optic coupler is a device that can distribute the optical signal from one fiber among two or more fibers. A fiber optical coupler can also combine the optical signal from two or more fibers into a single fiber. A signal is attenuated more in a fiber optic coupler than in a connector or a splice, because the input signal is not directly transmitted from one fiber to another, but divided among the output ports. For instance, with a 1 x 2 fiber optic coupler, each output is less than one-half the power of the input signal. 50/50 or 40/60 or 30/70 or 10/90 or 2/98 or 1/99 customized coupling ratios are optional. FC/UPC or APC, SC/UPC or APC, LC/UPC or APC and ST/UPC or APC fiber optic connectors are available. The TWC coupler is ideal for splitting or combining light with exceptional performance over a wide wavelength range.

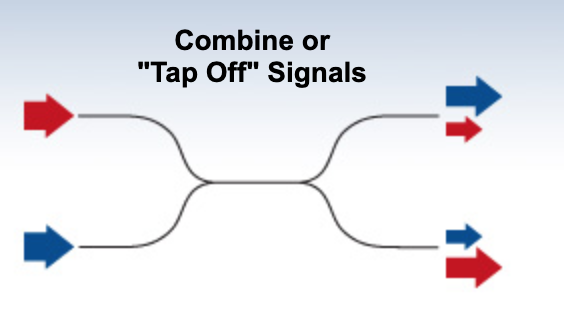

Fiber optic couplers have many different shapes, such as Y coupler, T coupler, X coupler, star coupler or tree coupler. 2x2 fiber optic coupler is X coupler. X coupler carries out the function of a splitter and a combiner in one package. The X coupler combines and divides the optical power from the two input fibers between the two output fibers.

Specification

Different combinations of coupling ratio
1310nm, 1550nm, 850nm, 1490nm or customized wavelength optional
Low crosstalk & excess loss
High optical return loss
Available in 250um & 900um fiber, 2mm or 3mm jacket optical cable.
Optional connectors termination upon request
Low polarisation dependent loss (PDL)
Excellent environmental and mechanical stability
Good directivity

Features

RoHS Compliant

Telecordia GR-1221 Compliant

Usage

FTTH network
Passive Optical Network
CATV Network
Optical Communication System
Optical Amplifier

Technical Data

Notes: All the data are tested without connectors. Insertion loss of one pair of connector is less than 0.3 dB.
Other specifications can be made on customer request.

Order Information

Product Picture

ANC International Co., Limited is an experienced OEM & ODM manufacturer and supplier for fiber optic patch cord and pigtails, fiber optic adapters, attenuators, PLC Splitters, CWDM, DWDM, OADM, fiber switch, fiber isolator, circulator, SFP transceiver, media converter, fiber optic patch panel, termination boxes, fiber optic cleaners and tools in Shenzhen, China.

Established in year 2005, ANC has been growing with clients over pass 10 years. Right now, ANC has plastic and adapter production plant in Hangzhou, has patch cord & attenuator assembly line in Shenzhen. Its products have been selling to big companies in China and reputed clients worldwide.

ANC focus on fiber optic products only. It aims to provide high quality and low lost customized products to meet client request.
