MM 50/125 MM 62.5/125 Fiber Optic Patch Cord LSZH 2.0mm Duplex SC
to LC Cable
Description
LSZH MM 50/125 Duplex 2.0mm SC to LC Fiber Optic Patch Cord
manufactured by ANC International Co., Limited is a cost-effective
solution that provides high bandwidth and transmission rates over
short distances. Fiber optic patch cord is one of most commonly
used components in fiber optic network. Fiber optic patch cords
sometimes are also called fiber optic jumper or fiber optic patch
cables. Generally there are two types of fiber optic patch cords:
single mode fiber optic patch cords and multimode fiber optic patch
cords. Here the word mode means the transmitting mode of the fiber
optic light in the fiber optic cable core. Usually single mode
fiber optic patch cord are with 9/125-fiber glass and is yellow
jacket color, multi mode fiber optic patch cord are with 50/125 or
62.5/125 fiberglass and is orange color.
Fiber optic patch cord are used for linking the equipment and
components in the fiber optic network, they are with various kinds
of fiber optic connector types. The fiber optic connector types
classify the fiber optic patch cord types, for example, we name LC
fiber optic patch cord because this cable is with LC fiber optic
connectors. There are also E2000 fiber optic patch cord, SC fiber
optic patch cord, ST fiber optic patch cord, FC fiber optic jumper,
MU fiber optic jumper, MTRJ fiber optic jumper, SMA fiber optic
jumper, MPO fiber patch cable, DIN fiber patch cable, FDDI fiber
patch cable, etc. There are PC, UPC, APC type fiber patch cord;
they are different because of the polish of fiber connectors.
Fiber optic patch cord are with various kinds of cables, PVC,
Riser, Plenum, OFNR, OFNP, LSZH (LSOH), 10 Gig Aqua, there are
simplex fiber optic patch cord and duplex fiber optic patch cord
and multi fiber cable assemblies, and there are ribbon fan out
fiber cable assemblies and bundle fiber optic cable assemblies.
Typical fiber optic patch cord cable diameter can be 0.9mm, 2mm,or
3mm.
Features
Blue, beige, green, yellow, white, black, red, etc boot color
optional
Excellent optical performance
SM, MM, OM3, OM4, simplex, duplex, breakout, micro-breakout cable
etc optional;
0.9mm, 1.6mm, 2.0mm, 2.4mm, 3.0mm cable diameter option
SC, ST, FC, LC, E2000, MU, MTRJ, DIN, MPO, MTP, D4, FDDI, LX.5,
VF45, connector optional
RoHS compliant
3D Interferometer request optional
Meets ANSI/TIA/EIA 568-B.3 and ISO/IEC 11801 Standards.
Configurations with different length options.
Patch cords are easy-to-install and environmentally stable
All patch cords are factory terminated and tested.
Applications
Fast Ethernet
Fibre Channel
Data Network
LAN, FTTX
CATV
Technical Data
Parameter for Muitimode SC to LC patch cord
| Characteristics | Unit | Value/Performance |
| Insertion Loss (IL) | dB | ≤0.2 (typical); ≤0.3 (maximum) |
| Return Loss (RL) | dB | PC≥35 typical |
| Operating Wavelength | nm | 850nm |
| Mating | | ≥500 times |
| Tensile | N | 100 |
| RoHS Compliant | | Yes |
| Operating Temperature | ℃ | -20~+80 |
100% Interferometer Pass is optional

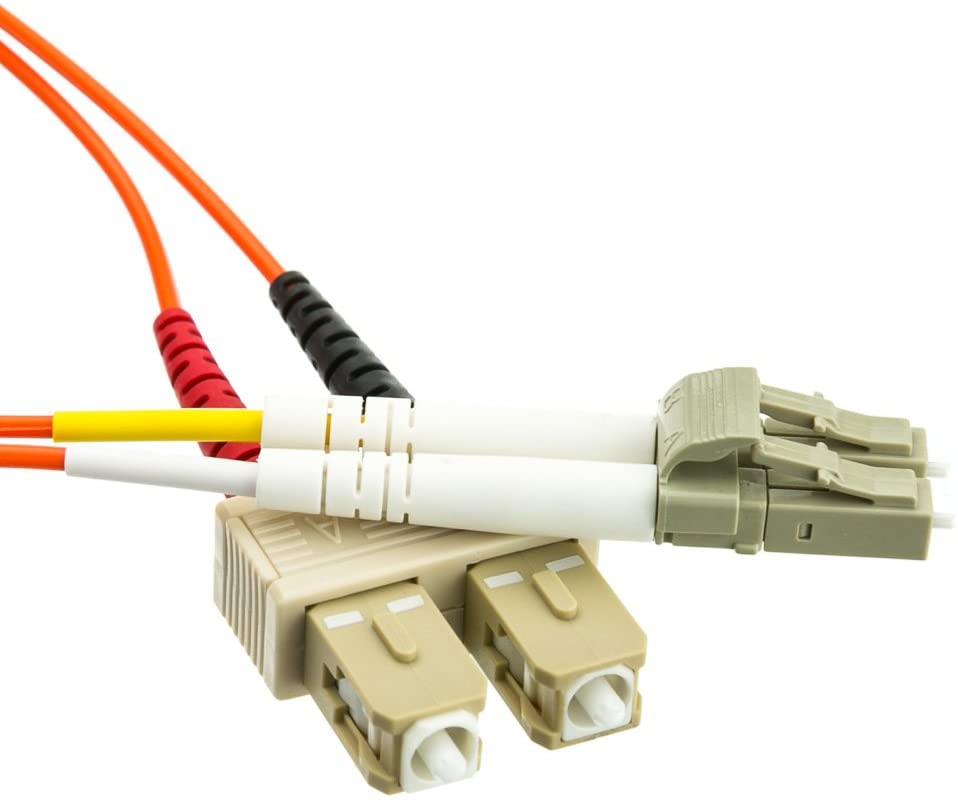

Product Pictures
