Optitap SC Fiber Optic Patch Cord Simplex with 3.0-5.0mm Cable or
Drop Cable
Description
Optitap SC Fiber Optic Patch Cord manufactured by ANC International
Co., Limited has SC houseless core, thread connection and
multilayer rubber cushions. It is compatible with H type Connector
and Corning Optitap connector. This optitap SC cable assemblies
provide a cost effective, easy, environmental seal and mechanical
protection for 1 fiber simple SC style connections. Optitap SC
connector is suitable for 3.0-5.0mm round cable and FTTH drop
cables, amored or non-amored. Compare with Huawei Mini SC
connector, Optitap biggest difference is the way of connection.
Huawei mini SC is spiral bayonet connection, while optitap is
thread connection.
We can provide 3.0mm, 5.0mm, 4.5*8.0mm, 4.5*9.8mm or other
customized cable diameter for Corning Optitap SC fiber optic patch
cord. The cable jacket material can be LSZH or PE. OEM & ODM
production is optional upon request.
ANC Fiber Optic is one of leading outdoor field fiber optic patch
cord manufacturer. Specialize in all type of field fiber optic
patch cord with waterproof connector, such as: Fullaxs Connector,
Huawei mini SC, PDLC, ODVA, Optitap, NSN, Military Connector, etc...
With more than 10 years of production exprerience, we supply
standard telecom and broadcast television grade of patch cord for
customers. All of goods are tested before shipment. We provide OEM
and ODM service.
Features
Fast deployment, plug and play
Easy to install and uninstall
Provides moisture and dust protection for use in harsh industrial
environments.
IP67 protection, salt-mist proof, humidity proof, dust proof.
Drastically reduces field splicing with a predetermined loss at
each waterproof access point.
Reduce installation time by as much as 50 percent per network
access point.
SCAPC IL<0.3 typically.
100% optically tested to ensure quality performance assemblies.
Available in single mode and multimode styles to work with any
common fiber type
Low insertion loss and high return loss
Cable lengths and cable types optional
OEM and ODM customized production
Applications
Telecom networks tower
CATV, LAN&WAN
Broadband
Outdoor FTTP, FTTA
Optitap SC Fiber Optic Patch Cord Pictures
Technical Data
| Item | Data |
| Insertion Loss | ≤0.3dB |
| Return Loss | ≥50dB for SM/PC; ≥60dB for SM/APC |
| Mechanical life | 500cycles |
| Working temperature | -40°C~+70°C |
| Storage temperature | -40°C~+70°C |
| Operating temperature | -10°C~+50°C |
| Protection Level | IP67 |
| Cable Diameter | 3.0-5.0mm round cable or FTTH drop cable |
| Cable Jacket Material | Black LSZH or customized |
| Authentication | Meet with RoHS |
Cable Structure for Optitap SC/APC Patch Cord (customized cable structure is also optional)
| Product Description | Single-Tube, Gel-Filling Cable, 1F, Single-mode (G657A2) |
| Fiber Count | 1 |
| Fiber Category | Single-mode G657A2 |
| Cable | Material | LSZH |
| Color | Black |
| Diameter (mm) | 5.0±0.2 |
| PBT Loose tube | Material | PBT |
| Color | WHITE |
| Diameter (mm) | 2.1±0.1 |
| Loose Buffer fiber | Material | PVC |
| Color | Green |
| Diameter (mm) | 0.9±0.05 |
| Tensile Strength Elements and/or Armoring - Layer 1 | Aramid yarn |
| Tensile Strength Elements and/or Armoring - Layer 2 | Water-swellable dielectric strength members |
| Nominal weight(kg/km) | 45 |
| Number of Ripcords | 1 |
| Max.tensile | Short-term | 800 |
| Strength(N) | Long-term | 250 |
| Min.Bending | Dynamic | 120 |
| Radius(mm) | Static | 75 |
| Max.Crush Resistance(N/100mm) | Short-term | 1000 |
| Long-term | 300 |
| Temperature range | Storage | -40℃~70℃ |
| Operation | -20℃~70℃ |
| Installation | -10℃~ 60℃ |

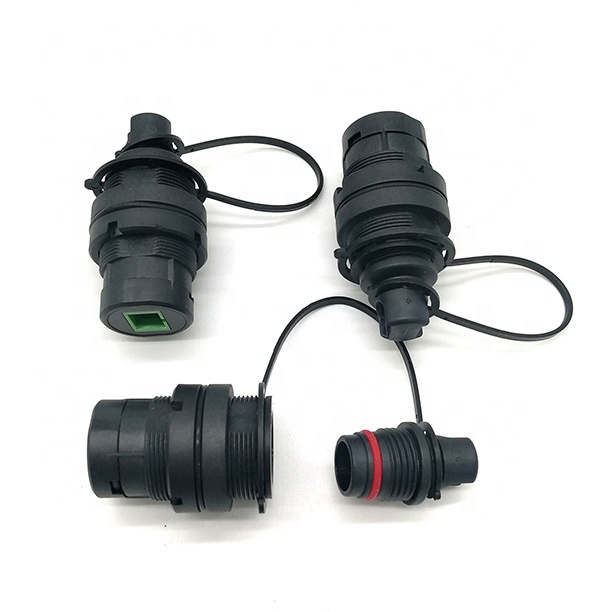

Optitap to SC Fiber Coupler Fiber Optic Adapter is also available
