Fullaxs to Fullaxs Duplex LC Fiber Optic Patch Cord Outdoor IP67 2M
for FTTA
Description
Fullaxs Duplex LC Fiber Optic Patch Cord manufactured by ANC
International Co., Limited is widely used for RRU, base station,
FTTA and outdoor waterproof conditions. Next generation WIMAX and
Long Term Evolution (LTE) Fiber To The Antenna (FTTA) connectivity
designs require rugged cable assemblies for outdoor use. For direct
connection these cable assemblies need to plug directly into the
optical transceivers though a bulkhead construction. For this
specific application the connector design will need to accommodate
for a large tolerance in Z-direction. Furthermore the connector
shell needs to allow for easy one handed mating. The FullAXS
connector system meets this requirement by allowing for a large
Z-direction tolerance while also offering the benefit of one-hand
installation of the connector shell. With this new product
offering, users can also conveniently remove and replace
transceivers through a cutout in the bulkhead that completely
eliminates the need to open the entire remote radio box and expose
its contents to hazardous weather conditions. For the optical
connection, the connector system includes an industry-standard
duplex LC interface for fast mating with all LC duplex SFP
transceivers.
With the development of distributed antenna syatems(DAS),
Fullaxs-LC connectors has become a standard interface for the new
generation wireless base station linked to the FTTA equipment that
set up outdoor environment.
The FullAXS connector can be designed for either single mode or
multimode optical transmission applications. The cable assembly
firmly establish themselves through the bulkhead adapte. Fullaxs
connector is directly inserted into the sfp transceiver, or is
directly connected to the WiMax and LTE in FTTA application.
Features
Open bulkhead for easy access to SFP
Positive feedback to operator when fully mated
One-hand mating
Duplex LC interface
Bulkhead cutouts allow for removal of transceiver through the
bulkhead (no need to open RRH for transceiver replacement)
Robust bayonet locking for easy, fast, and secure mating
Multimode and single mode
Water proof, dust proof and corrosion resistant
Can be used in a variety of optical fiber communication network
field army, military computer systems, airborne or ship borne
equipment, repair and other outdoor optical cable system temporary
connection.
Product is available in 2 core, 4-core, 6-core, 8-core, 12-core.
Low insertion loss and high return loss
Cable lengths and cable types optional
OEM and ODM customized production
Applications
Widely used in FTTA & FTTH
WIMAX and LTE Base Stations
Used for 3G 4G base station
BBU, RRU, RRH, LTE
Industrial outdoor applications
Aerospace & Defense
Fullaxs-LC Fiber Optic Patch Cord Drawing
1. 2 core outdoor fiber cable, 4.8mm diameter, LSZH, black
2. Fullaxs overmolded drop protection, black
3. Fullaxs overmolded LC Duplex plug assembly
4. heat shrink tubing, black
5. protective tubing, black or customized color
6. LC duplex connector, standard
Other Cable Structure is also optional upon request

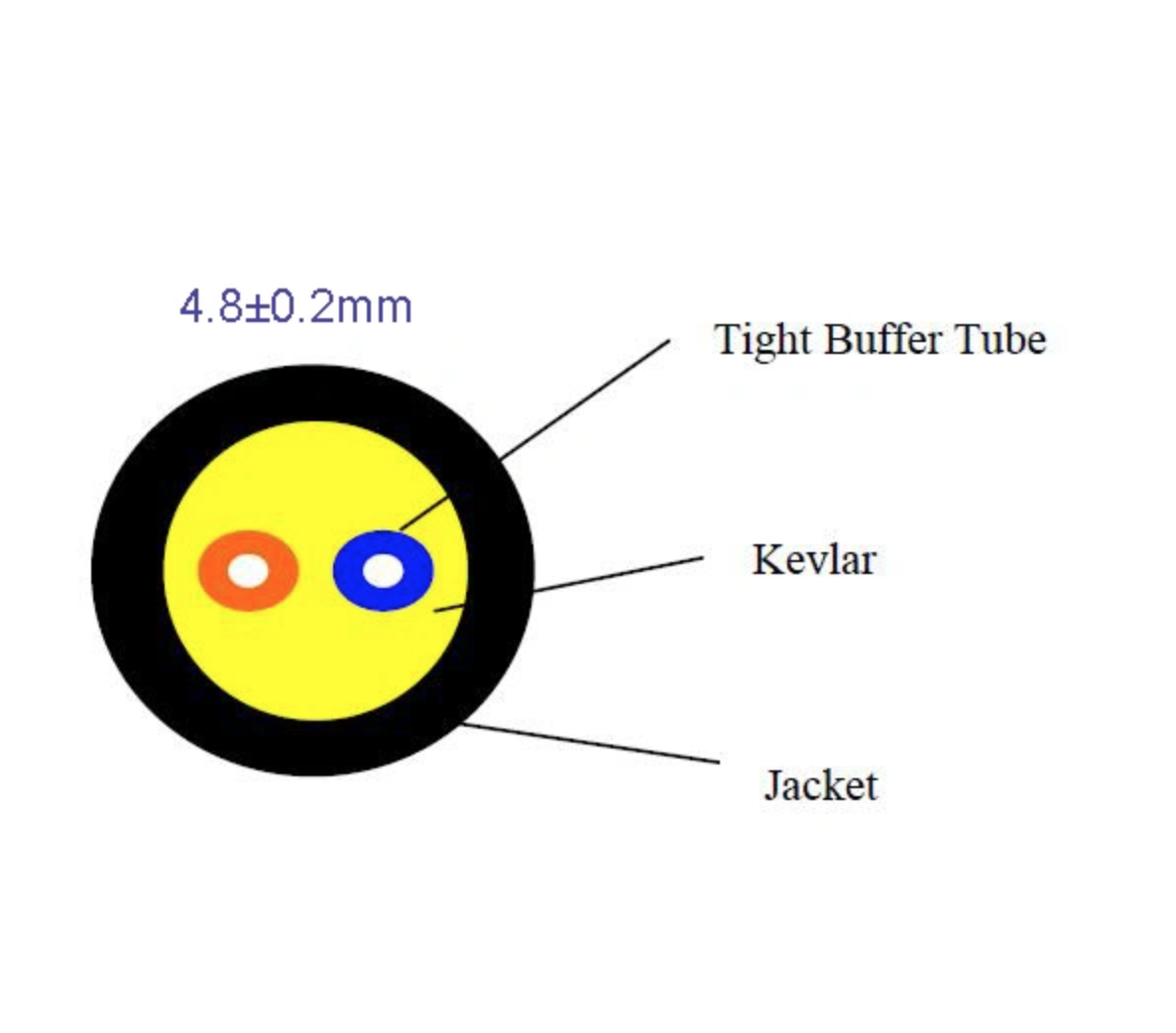

Type1: 2×Tight Buffer(0.9mm)+Kevlar+Jacket OD=4.8mm;
Type2: 2×Tight Buffer(0.9mm)+Kevlar+Spiral +Jacket OD=4.8mm
Type3: 0.9mm tight buffer*2 +2.0mm Jacket*2 +2×2.0mm Tube+Jacket
OD=7.0mm;
Type4: 0.9mm tight buffer*2 +2.0mm Jacket*2 +2×2.0mm Tube+power
cable 0.75M2 *2 Jacket OD=8.5.0mm;
Technical Data
| Item | Data |
| Insertion Loss | ≤0.3dB |
| Return Loss | ≥50dB for SM/PC; ≥60dB for SM/APC; ≥35dB for MM |
| Mechanical life | 500cycles |
| Working temperature | -40°C~+70°C |
| Storage temperature | -40°C~+70°C |
| Operating temperature | -10°C~+50°C |
| Protection Level | IP67 |
| Cable Diameter | 4.8mm or 7.0mm or 8.5mm or customized |
| Cable Jacket Material | Blakc LSZH or customized |
| Authentication | Meet with RoHS |
