Mini SC Outdoor Fiber Optic Patch Cord Simplex with 5.0mm Drop
Cable Compatible Huawei
Description
Outdoor Huawei compatible mini SC Fiber Optic Patch Cord
manufactured by ANC International Co., Limited provides a cost
effective, environmental seal and mechanical protection for 1 fiber
simplex SC style connections. This mini SC/APC connector is safe
and reliable and widely used for RRU, base station, FTTA and
outdoor waterproof conditions. It is small and easy to be
installed, and the waterproof grade can be IP67. Huawei mini SC
connector is suitable for 3.0-5.0mm round cables and FTTH drop
cables. The Huawei mini SC connector end incorporates an SC type
connection within a slim, sealed, threaded polymer housing allowing
easy connection to either a multi port terminal or in-line
extension receptecal. Inside cover can protect ferrule end face far
away scratch when mating with receptacle. One hand Bayonet-style
mechanical latch makes this mini SC connector easy to be installed.
ANC Fiber Optic is one of leading outdoor field fiber optic patch
cord manufacturer. Specialize in all type of field fiber optic
patch cord with waterproof connector, such as: Fullaxs Connector,
Huawei mini SC, PDLC, ODVA, Optitap, NSN, Military Connector, etc...
With more than 10 years of production exprerience, we supply
standard telecom and broadcast television grade of patch cord for
customers. All of goods are tested before shipment. We provide OEM
and ODM service.
Features
Cost effective solution for in house termination
IP67 Water immersion and Dust protection for hash environment ·
Chemical Resistance ·
Simple assembly requiring no special tools ·
Push-pull insertion with bayonet-style mechanical latch provides
easy installation and removal
Durable mechanical mating, minimum of 500 matings
Wide range of operational temperature for outside plant -40 to+85°C
SC/APC IL<0.3
100% optically tested to ensure quality performance assemblies
Low insertion loss and high return loss
Cable lengths and cable types optional
OEM and ODM customized production
Applications
Widely used in FTTA & FTTH
WIMAX and LTE Base Stations
Used for 3G 4G base station
BBU, RRU, RRH, LTE
Industrial outdoor applications
Aerospace & Defense

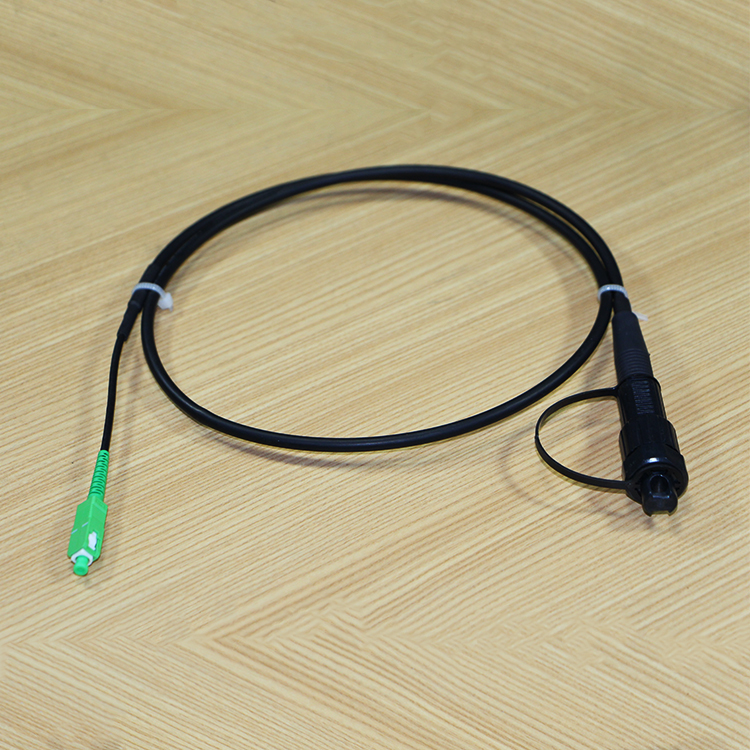

Huawei mini SC Fiber Optic Patch Cord Pictures
Technical Data
| Item | Data |
| Insertion Loss | ≤0.3dB |
| Return Loss | ≥50dB for SM/PC; ≥60dB for SM/APC |
| Mechanical life | 500cycles |
| Working temperature | -40°C~+70°C |
| Storage temperature | -40°C~+70°C |
| Operating temperature | -10°C~+50°C |
| Protection Level | IP67 |
| Cable Diameter | 3.0-5.0mm round cable or FTTH drop cable |
| Cable Jacket Material | Blakc LSZH or customized |
| Authentication | Meet with RoHS |
Cable Structure (one optional only, customized cable structure is
also optional) for Huawei Mini SC/APC Patch Cord
| Product Description | Single-Tube, Gel-Filling Cable, 1F, Single-mode (G657A2) |
| Fiber Count | 1 |
| Fiber Category | Single-mode G657A2 |
| Cable | Material | LSZH |
| Color | Black |
| Diameter (mm) | 5.0±0.2 |
| PBT Loose tube | Material | PBT |
| Color | WHITE |
| Diameter (mm) | 2.1±0.1 |
| Loose Buffer fiber | Material | PVC |
| Color | Green |
| Diameter (mm) | 0.9±0.05 |
| Tensile Strength Elements and/or Armoring - Layer 1 | Aramid yarn |
| Tensile Strength Elements and/or Armoring - Layer 2 | Water-swellable dielectric strength members |
| Nominal weight(kg/km) | 45 |
| Number of Ripcords | 1 |
| Max.tensile | Short-term | 800 |
| Strength(N) | Long-term | 250 |
| Min.Bending | Dynamic | 120 |
| Radius(mm) | Static | 75 |
| Max.Crush Resistance(N/100mm) | Short-term | 1000 |
| Long-term | 300 |
| Temperature range | Storage | -40℃~70℃ |
| Operation | -20℃~70℃ |
| Installation | -10℃~ 60℃ |
