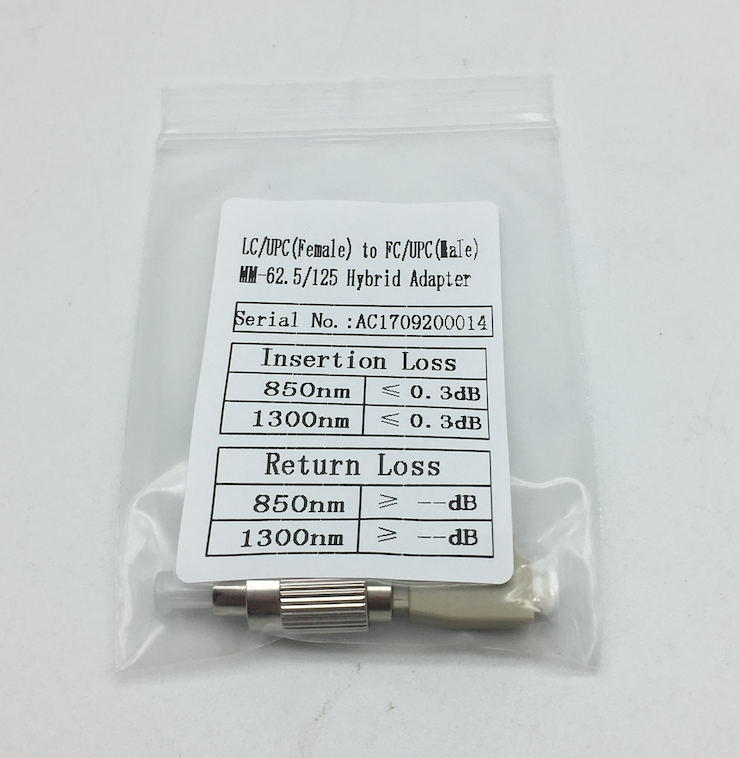

FC Male to LC Female Fiber Optic Adapter SM or MM62.5 or MM50
Optional
Description
FC Male to LC Female Fiber Optic Adapters manufactured by ANC
International Co., Limited is a regular type fiber-embedded
adapter. The fiber used inside can be SM, OM1, OM2, OM3, OM4 or other
customized. This hybrid FC Male to LC Female adapter inexpensively adapt
connector interfaces to new equipment, upgrade distribution panels
and eliminate the need to re-terminate cable assemblies. Fiber
optic adapter, sometimes also called coupler, is a small device
designed to terminate or link the fiber optic cables or fiber optic
connectors between two fiber optic lines. These hybrid SC Male to
FC Female adapters change the existing FC connector on your fiber
cable into an SC connector. The female to male fiber adapters have
embedded fiber and ceramic sleeves inside to make precise
connection.
ANC has big and automatic adapter production lines in Zhejiang
Province. It can supply full-lines of fiber optic adapters, such as
standard bulk head SC, LC, FC, ST, MU, MPO, E2000, MTRJ, DIN, SMA
etc fiber optic adapters;
female-female hybrid adapters, such as LC-SC, LC-FC, SC-FC, SC-ST,
MU-LC, etc;
female-male hybrid adapters, such as SC Male-LC Female; FC male-SC
female fiber optic adapters etc;
Various shutter adapters;
Bare fiber adapters;
Specification
Hybrid adapter type: LC(Female) to FC(Male)
Fiber type: SM 9/125 Fiber or MM 50/125 or MM 62.5 or customized
Insertion Loss(db): Less than 0.30
Repeatability(db): Greater than 0.20
Interchangeability(db): Less than 0.20
Working temperature: -25C to +75℃
Ultra thin and light weight
High precision instrument
High interface performance
High return loss
Easy to handle
Environmentally stable
Usage
FTTx
Telecommunication Networks
Ethernet Networks
Optical Communication Equipment
CATV Networks
Local Area Networks
Specifications
| Item | Parameter |
| Single Mode (SM-9/125) | Multi Mode(MM-50/125) or
Multi-Mode(MM-62.5/125) |
| Insertion Loss | ≤0.3dB |
| Durability (500 Mating) | 0.2dB Max. |
| Operating Temperature | -40℃~+75℃ |
| Storage Temperature | -40℃~+85℃ |
| Remark: FC Male to LC Female Hybrid Fiber Optic Adapte is ultra
reliable components featuring low insertion loss and back
reflection loss. You can select singlemode 9/125um or multimode
62.5/125um or multimode 50/125um. |
Optical Performance
| | Premium Grade | Standard Grade |
| Insertion Loss | ≤0.2dB | ≤0.3dB |
| Durability | 500 times | 500 times |
Environment and Mechanical
| Properties | Test condition | Compliant | Test result |
| Vibration | 10-55Hz, 1.5mm, 60min | IEC61300-2-1 | ≤0.2dB |
| Mating Durability | 1000 Mating, clean every 25 mating. | IEC61300-2-2 | ≤0.2dB |
| Impact | 1.5m, 8 drops | IEC61300-2-6 | ≤0.2dB |
| Strength of Coupling Mechanism | 40N, 10Min, L=22-28cm | IEC61300-2-12 | ≤0.2dB |
| Temperature Cycling | 40ºC to +75ºC, 40 cycles | IEC61300-2-22 | ≤0.2dB |
| Temperature humidty cycling | 40ºC, 95%, 96Hr | IEC61300-2-21 | ≤0.2dB |
| Operating Temperature | -40ºC to +85ºC | | ≤0.2dB |
| Storage Temperature | -40ºC to +85ºC | | ≤0.2dB |
