25G SFP28 LR SM 1310nm 10km Fiber Optic Transceiver For Industrial Temperature

Description
25G SFP28 LR single-mode 1310nm 10km transceiver is SFP28 module for duplex optical data communications support up to 25.78Gb/s. It is with the SFP+ 20-pin connector to allow hot plug capability. Digital diagnostic functions are available via an I2C. It has built-in clock and data recovery (CDR). This 25G SFP28 LR optics module features a highly reliable 1310nm DFB transmitter and PIN photo-detector into duplex LC optical connector, providing links up to 10km over single-mode fiber. It can be Cisco, Juniper, Brocade, HW etc compatible.
ANC 25G Transceivers include SFP28-SR, SFP28-LR, SFP28-ER, SFP28-BIDI, SFP28-CWDM and SFP28-DWDM. It offers connecting solution from 100m to 40km for data centers, high speed network and 5G. 25G SFP28 comes from the fact that it is a Small Form-factor Pluggable (SFP) and its electrical interface can handle a channel of 25G, potentially up to 28G.

Features
Up to 25.78 Gb/s bi-directional rate
Hot-pluggable SFP28 footprint
Built-in digital diagnostic functions
1310nm DFB laser transmitter
Duplex LC connector
RoHS compliant
Up to 10 km on 9/125μm SMF
Metal enclosure, for lower EMI

Single 3.3V power supply
Power dissipation <1.0W (0~70°C)
Power dissipation <1.2W (-40~85°C)
Industrial and Commercial operating temperature optional

Compliance
ESD to the Electrical PINs: compatible with MIL-STD-883 Method 3015
ESD to the Duplex LC Receptacle: compatible with IEC 61000-4-2
Immunity compatible with IEC 61000-4-3
EMI compatible with FCC Part 15 Class B EN55022 Class B (CISPR 22B) VCCI Class B
Laser Eye Safety compatible with FDA 21CFR 1040.10 and 1040.11 EN60950, EN (IEC) 60825-1,2
RoHS compliant with RoHS 2 (2011/65/EU)

Applications

25GBASE-LR Ethernet Data Center Networks
Ethernet
CPRI & eCPRI
Metro Area Networks

Optical Characteristics (TOP=25°C, Vcc=3.3 Volts)

Notes:

1. Measured with data rate at 25.78Gb/s, BER less than 5E-5 with PRBS 231-1. This value is informative and not the principal indicator of signal strength. A received power below this value cannot be compliant; however, a value above this does not ensure compliance.
2. Measured with data rate at 25.78Gb/s, BER less than 5E-5 with PRBS 231-1.

Mechanical Dimension
ANC Small Form Factor Pluggable (SFP28) transceivers are compatible with the dimensions defined by the SFP Multi-Sourcing Agreement (MSA). Dimensions are in mm.

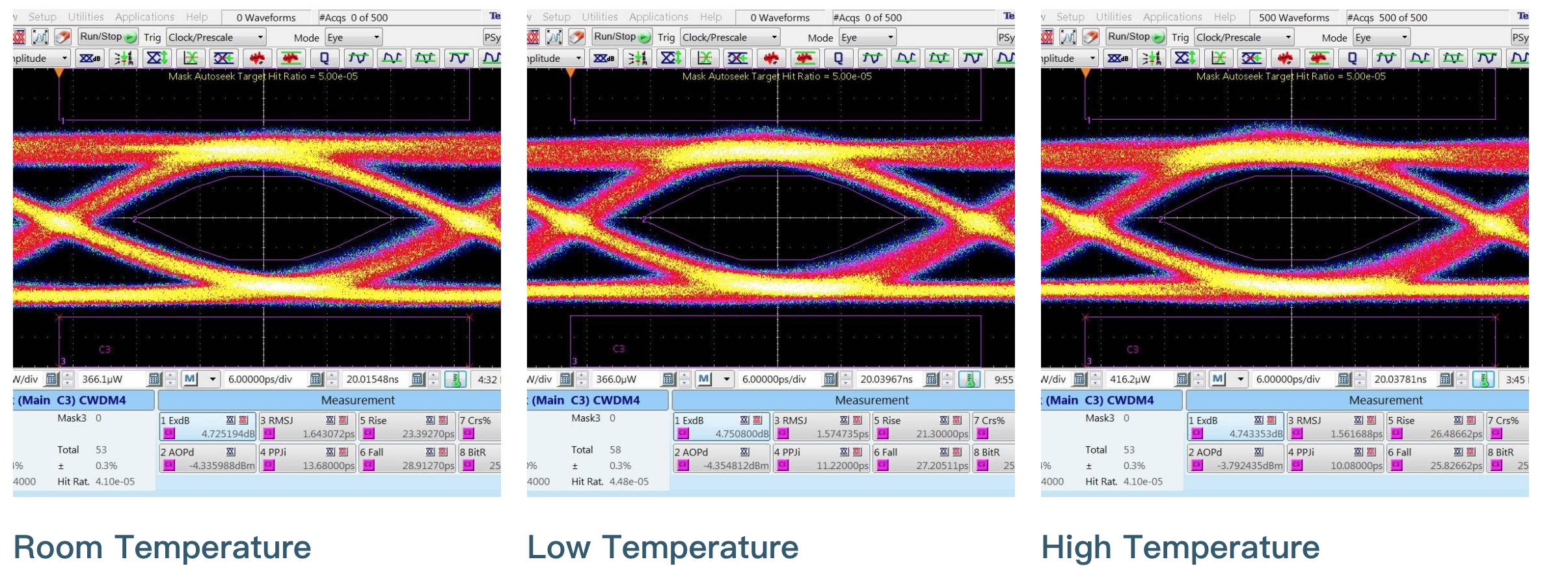

Eye Diagram
