1x2 Fiber Optic Splitter 1310nm 1490nm 1550nm Triple Window Coupler with SC/APC Connector

Description

1x2 Single Mode 1310/1490/1550nm Triple Window Coupler manufactured by ANC International Co., Limited is mainly to distribute light from a main fiber into two or more fibers. Fused Biconical Taper (FBT) Splitter is made by wrapping two fiber cores together, putting tension on the optical fibers, and then heating the junction until the two fibers are tapered from the tension and fused together. This coupler features good uniformity, low excess loss, and very low polarization sensitivity. Triple Window Coupler (TWC) employs bandwidth-extending techniques to change the wavelength and to make the coupler meet the requirement of light wave accurate distribution in 3 windows. The singel mode Three Window FBT Couplers are used to "combine 3 networks together", they can realize 2-way transmission of 2 / 3 waves by 1 single optical fiber. 50/50 or 40/60 or 30/70 or 10/90 or 2/98 or 1/99 customized coupling ratios are optional. FC/UPC or APC, SC/UPC or APC, LC/UPC or APC and ST/UPC or APC fiber optic connectors are available. The TWC coupler is ideal for splitting or combining light with exceptional performance over a wide wavelength range.

Specification

Three Operating Windows
Low insertion loss
Low polarisation dependent loss (PDL)
Vareties of coupling ratios available
Excellent environmental and mechanical stability
Good directivity

Features

RoHS Compliant

Telecordia GR-1221 Compliant

Usage

FTTH network
Passive Optical Network
CATV Network
Optical Communication System
Optical Amplifier

Technical Data

Notes: All the data are tested without connectors. Insertion loss of one pair of connector is less than 0.3 dB.
Other specifications can be made on customer request.

Order Information

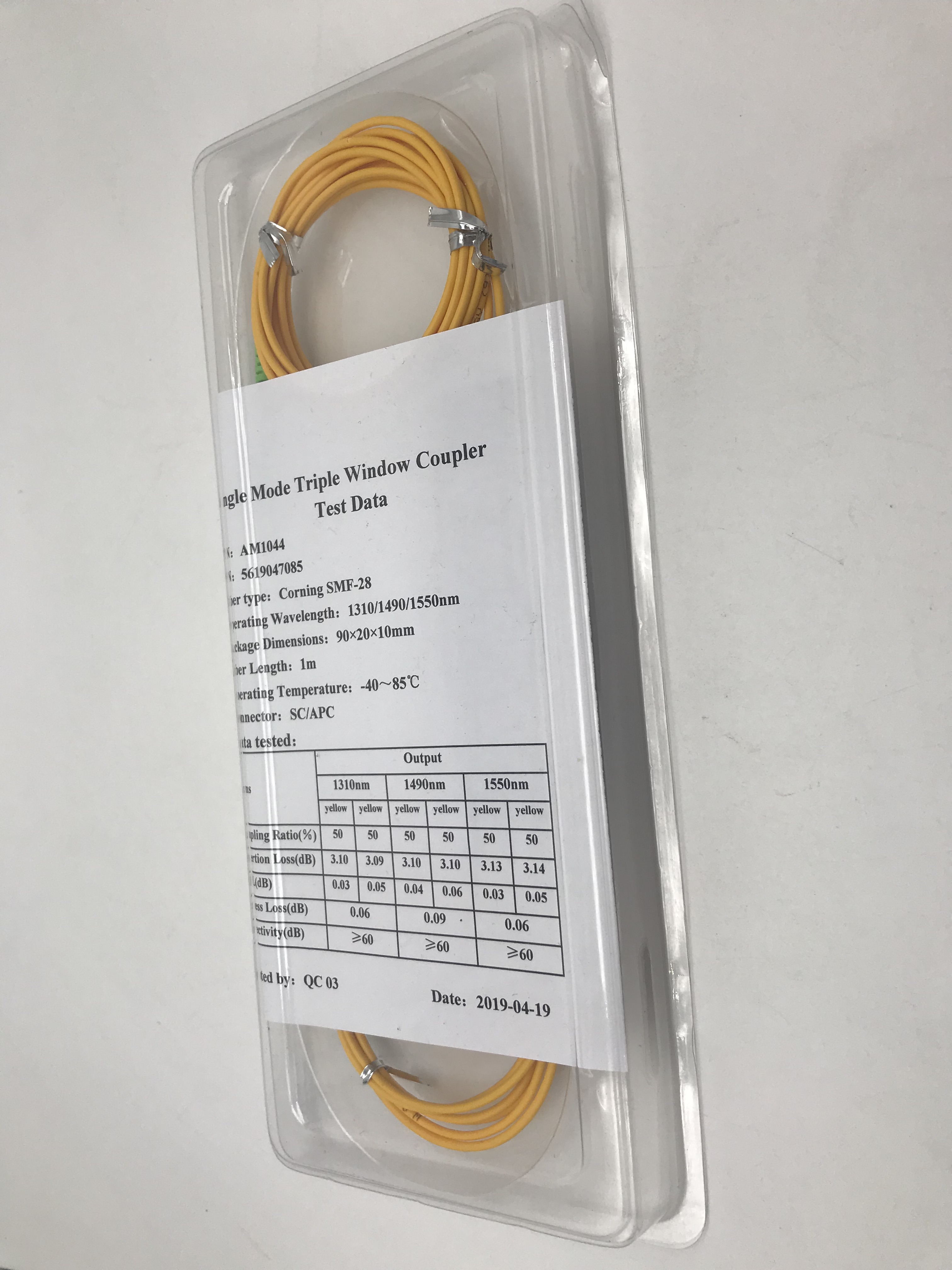

Product Picture

ANC International Co., Limited is an experienced OEM & ODM manufacturer and supplier for fiber optic patch cord and pigtails, fiber optic adapters, attenuators, PLC Splitters, CWDM, DWDM, OADM, fiber switch, fiber isolator, circulator, SFP transceiver, media converter, fiber optic patch panel, termination boxes, fiber optic cleaners and tools in Shenzhen, China.

Established in year 2005, ANC has been growing with clients over pass 10 years. Right now, ANC has plastic and adapter production plant in Hangzhou, has patch cord & attenuator assembly line in Shenzhen. Its products have been selling to big companies in China and reputed clients worldwide.

ANC focus on fiber optic products only. It aims to provide high quality and low lost customized products to meet client request.
