3 Port Polarization Insensitive Optical Circulator 1310nm, 1550nm or S, C, L Wideband

Description

3 Port Polarization Insensitive Optical Circulator manufactured by ANC International Co., Limited is a three-terminal device. Terminal 1 is the input port and terminal 2 is the output port, while the reflected signal back into terminal 2 will be redirected to terminal 3 instead of terminal 1. Optical circulator has become one of the indispensable elements in advanced optical communication systems, especially WDM systems.The function of an optical circulator is to transmit a lightwave from one port to the next sequential port with a maximum intensity, but at the same time to block any light transmission from one port to the previous port. Optical circulators are based on the nonreciprocal polarization rotation of the Faraday effect.

Polarization insensitive optical circulator utilizes proprietary designs and metal bonding micro optics packaging. It provides low insertion loss, broad band high isolation, low PDL, excellent temperature stability and optical path epoxy free. It can be used for wavelength add/drop, dispersion compensation and EDFA application

Features

Non-Reciprocating, Unidirectional Operation

1310nm, 1550nm or C+L or S+C+L Wideband Wavenelgth optional

Bare fiber or 900um tube optional

Low Insertion Loss

Wide Band High Isolation

Compact In-line Package

Epoxy-Free Optical Path

Exceptionally Stable and Reliable

Telcordia GR-1221 Compliant

Low Polarization Dependent Loss

Usage

Optical fiber amplifier

Medical and imaging fields

Use with FBG

Metro area network

WDM network

EDFA module

PON Networks

Technical Data

1310 or 1550nm 3 Port Optical Circulator

C+L Band 3 Port Optical Circulator

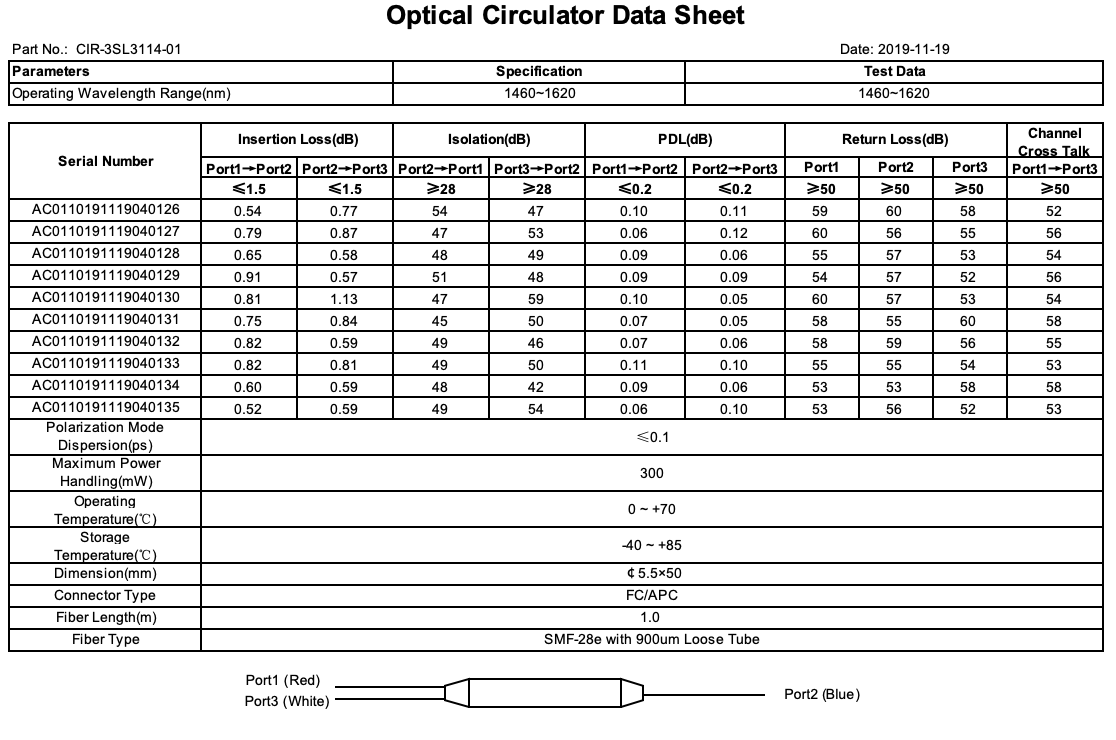

Related Pictures:

ANC International Co., Limited is an experienced OEM & ODM manufacturer and supplier for fiber optic patch cord and pigtails, fiber optic adapters, attenuators, PLC Splitters, CWDM, DWDM, OADM, fiber switch, fiber isolator, circulator, SFP transceiver, media converter, fiber optic patch panel, termination boxes, fiber optic cleaners and tools in Shenzhen, China.

Established in year 2005, ANC has been growing with clients over pass 10 years. Right now, ANC has plastic and adapter production plant in Hangzhou, has patch cord & attenuator assembly line in Shenzhen. Its products have been selling to big companies in China and reputed clients worldwide.

ANC focus on fiber optic products only. It aims to provide high quality and low lost customized products to meet client request.
