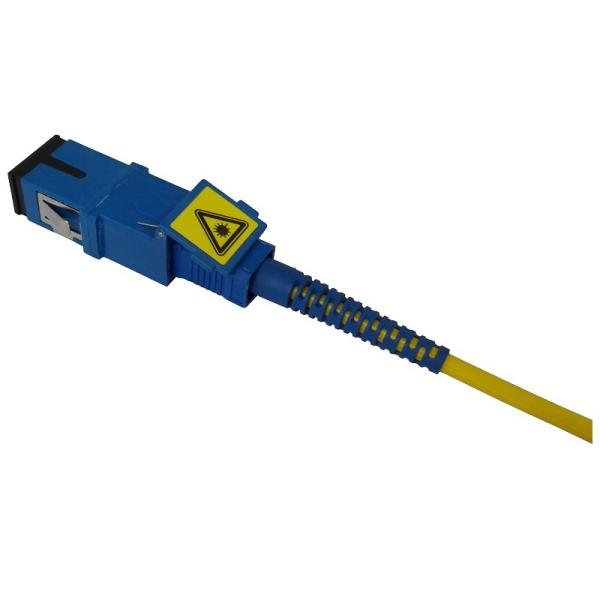

Simplex SC Shutter Fiber Optic Adapter without Flange
Description
Simplex SC Shutter Fiber Optic Adapter manufactured by ANC
International Co., Limited is the optimal solution for dust and
light protection. The automatic shutter prevents any light emission
when connectors are being removed, while it opens automatically if
connectors are plugged in. High quality ceramic sleeves are used
inside this adapter to ensure low insertion loss and high
stability. This adapter has different color optional and has
flanged or flangeless optional. This simplex shutter SC adapter can
be used with a regular SC adapter.
ANC has big and automatic adapter production lines in Zhejiang
Province. It can supply full-lines of fiber optic adapters, such as
standard bulk head SC, LC, FC, ST, MU, MPO, E2000, MTRJ, DIN, SMA
etc fiber optic adapters;
female-female hybrid adapters, such as LC-SC, LC-FC, SC-FC, SC-ST,
MU-LC, etc;
female-male hybrid adapters, such as SC Male-LC Female; FC male-SC
female, ST Male-LC female, LC Male-SC Female fiber optic adapters
etc;
Various shutter adapters;
Bare fiber adapters;
Specification
PC and APC SC shutter adapter available
SC Internal & External shuttered adapter optional
with and w/o flange available
High quality Zirconia sleeve is used inside
Low insertion loss & High return loss
Environment stability
Shutters open and close automatically
Flammability rating: UL 94V-0
TIA/EIA, IEC and Telcordia GR 326-CORE compliance
Meets with RoHS and REACH
Usage
Telecommunication
CATV applications
LAN & WAN and data center networks.
FTTH solution
Parts & Material
| Parts | Material | Remarks |
| Sleeve | Zirconia | |
| Metal Clip | SUS304 | |
| Housing | PBT | Flammability UL94 V-0 |
| Shutter Dust cap | PBT | Flammability UL94 V-0 |
| Inner Housing | PBT | Flammability UL94 V-0 |
Optical Performance
| | Premium Grade | Standard Grade |
| Insertion Loss | ≤0.1dB | ≤0.2dB |
| Durability | 1000 times | 1000 times |
Environment and Mechanical
| Properties | Test condition | Compliant | Test result |
| Vibration | 10-55Hz, 1.5mm, 60min | IEC61300-2-1 | ≤0.2dB |
| Mating Durability | 1000 Mating, clean every 25 mating. | IEC61300-2-2 | ≤0.2dB |
| Impact | 1.5m, 8 drops | IEC61300-2-6 | ≤0.2dB |
| Strength of Coupling Mechanism | 40N, 10Min, L=22-28cm | IEC61300-2-12 | ≤0.2dB |
| Temperature Cycling | 40ºC to +75ºC, 40 cycles | IEC61300-2-22 | ≤0.2dB |
| Temperature humidty cycling | 40ºC, 95%, 96Hr | IEC61300-2-21 | ≤0.2dB |
| Operating Temperature | -40ºC to +85ºC | | ≤0.2dB |
| Storage Temperature | -40ºC to +85ºC | | ≤0.2dB |
