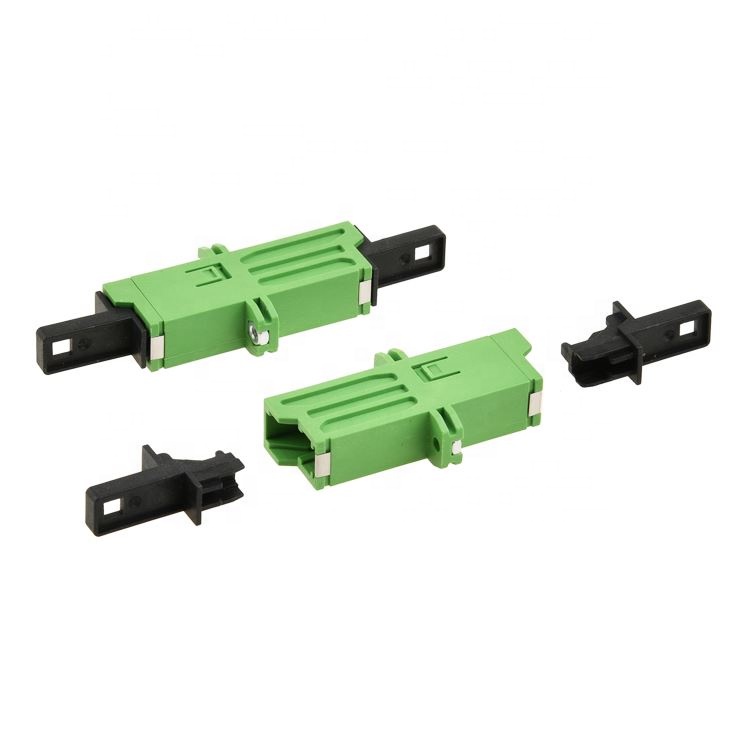

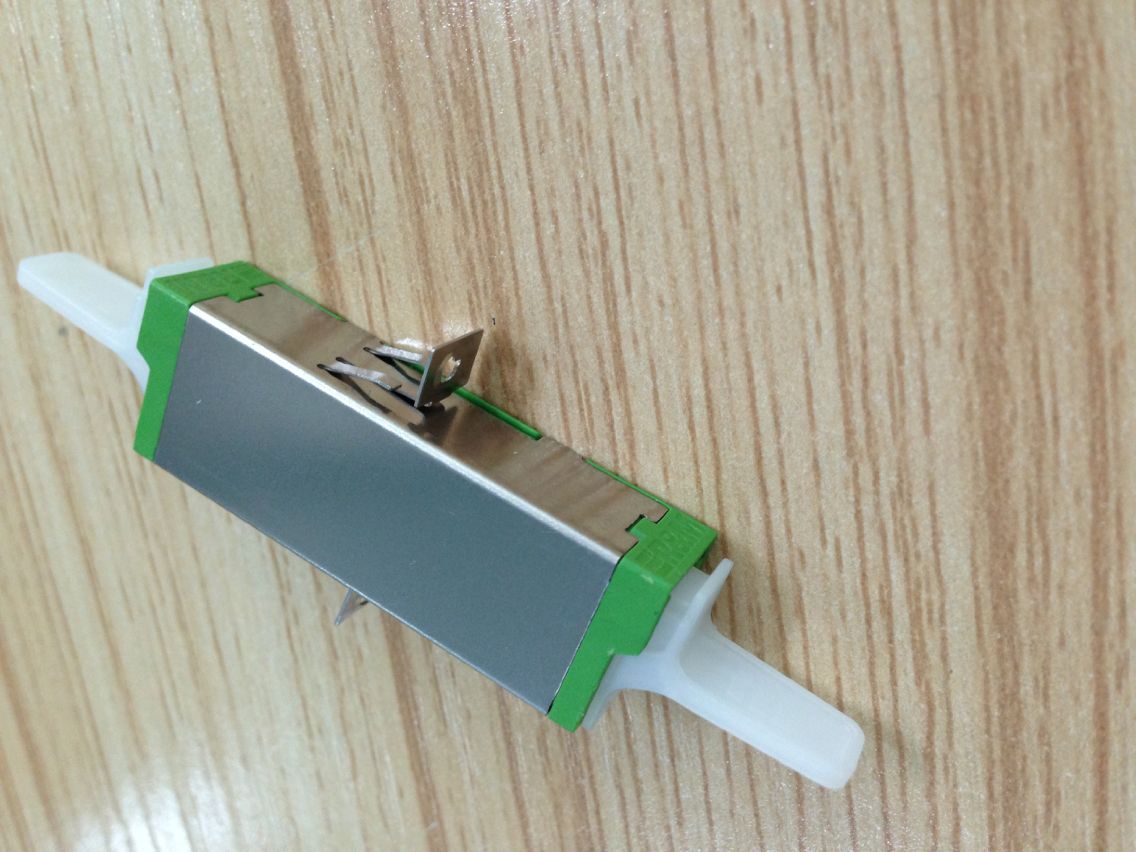

E2000 APC Fiber Optic Adapter, E2000 Simplex Coupler with Ceramic
Sleeve Inside
Description
Simplex E2000 fiber optic adapter manufactured by ANC International
Co., Limited is constructed with plastic body. The housing colors
for E2000 adapters are different for easy identification: blue for
SM, grey for MM and green for APC. This E2000 adapter features low
insertion loss and strong temperature stability by adopting high
precise ceramic sleeve. It is suitable for both PC and APC
applications and is mainly used in telecommunication and networking
systems. Please note this E2000 fiber optic adaptor is only
available in simplex version.
ANC has big and automatic adapter production lines in Zhejiang
Province. It can supply full-lines of fiber optic adapters, such as
Standard bulk head adapters, such as SC, LC, FC, ST, MU, MPO,
E2000, MTRJ, DIN, SMA fiber optic adapters etc;
Female-Female hybrid adapters, such as LC-SC, LC-FC, SC-FC, SC-ST,
MU-LC, fiber optic adapters etc;
Female-Male hybrid adapters, such as SC Male-LC Female; FC male-SC
female fiber optic adapters etc;
Various shutter adapters;
Bare fiber adapters;
Specification
Supplied with screw and nuts
Different color optional
Compliant with IEC 61754-15;
All adapters are supplied with ceramic sleeves inside;
High precision alighment sleeve is used;
Low insertion loss, high return loss
High precision of mechanical dimensions
Good repeatability and exchangeability
Genuine Reichle & deMassari (R&M) products
Huber+Suhner adapters available on request
RoHS, REACH SvHC compliant
Usage
FTTx
CATV
Local Area Network
Data processing networks
Telecommunication Networks
Parts & Material
| Parts | Material | Remarks |
| Sleeve | Zirconia | |
| Housing | ABS | Flammability UL94 V-0 |
| Dust cap | ABS | Flammability UL94 V-0 |
Optical Performance
| | Premium Grade | Standard Grade |
| Insertion Loss | ≤0.1dB | ≤0.2dB |
| Durability | 1000 times | 1000 times |
Environment and Mechanical
| Properties | Test condition | Compliant | Test result |
| Vibration | 10-55Hz, 1.5mm, 60min | IEC61300-2-1 | ≤0.2dB |
| Mating Durability | 1000 Mating, clean every 25 mating. | IEC61300-2-2 | ≤0.2dB |
| Impact | 1.5m, 8 drops | IEC61300-2-6 | ≤0.2dB |
| Strength of Coupling Mechanism | 40N, 10Min, L=22-28cm | IEC61300-2-12 | ≤0.2dB |
| Temperature Cycling | 40ºC to +75ºC, 40 cycles | IEC61300-2-22 | ≤0.2dB |
| Temperature humidty cycling | 40ºC, 95%, 96Hr | IEC61300-2-21 | ≤0.2dB |
| Operating Temperature | -40ºC to +85ºC | | ≤0.2dB |
| Storage Temperature | -40ºC to +85ºC | | ≤0.2dB |
