40mm Length Ribbon Fiber Fusion Splice Protection Sleeves
manufactured by ANC International Co., Limited are designed to
accommodate 2 to 12 ribbon fiber. Stock lengths are 40mm, but are
also available in a new 30mm length for smaller packaging
requirements. This product is constructed with an inner EVA
meltable adhesive tube, a polyolefin heat shrink outer tube and
either single or dual strength members. The ribbon fiber splice protection tubes are clear to allow viewing
of the fiber during and after splicing. The entire assembly is
designed to ensure that all members maintain perfect alignment
during shipping, handling and shrinking. The normal packing is
50pcs/bag.
Fiber Shrinkable Sleeve is applied to the optical fiber closure to
fix and protect the optical fiber when splicing.
The sleeve can be divided into two types (single and mass)
according to the function. The single type is used for the
single-fiber, and the mass type is used for the ribbon fiber. It is
different in the reinforcement between two types. The single one
realizes the reinforcement by the stainless steel needles, the
later one via the ceramic reinforcement member to realize the
function. Mass means there are several cores for the fiber. So the
mass sleeve includes 4cores, 6cores, 8cores and 12cores (for
types).
Features:
Protect connection point,improve the mechanical strength,it is most
reliable way to protect the fusion
Esay to operate,reducing the risk of fiber damage during
installation
Single ceramic or double ceramic strength member optional
6 fiber or 12 fiber ribbon protection sleeve optional
Transparent tube,it is easy to see the status of fiber optical
closure
Work temperature high (-55°C~100°C), widely used
Min.shrinks temperature:120°C,shrink very fast and very easy to
installation
Applications
Fiber Fusion Splicing
Fiber Optic Patch Panel
Optical Distribution Frame
Fiber Optic Terminal Box
Fiber Optic Splice Closure
Specifications
Single Ceramic Features
| Fiber Capacity | Ceramic Width * Height | Fusion Tube Width* Height | Heat Shrink Tube Length | Device O.D. Before Shrink | Device O.D After Shink |
| 6 | 3mm * 1.5mm | 3.0mm * 1.3mm | 40mm | 4.7±0.2mm | 3.8±0.2mm |
| 12 | 3.95mm *1.95mm | 4.5mm * 2.5mm | 40mm | 6.2±0.2mm | 4.8±0.2mm |
Double Ceramic Features
| Fiber Capacity | Ceramic Width * Height | Fusion Tube Width* Height | Heat Shrink Tube Length | Device O.D. Before Shrink | Device O.D After Shink |
| 4 | 3.05mm * 1.4mm | 2.0mm * 1.2mm | 40mm | 4.8±0.2mm | 3.8±0.2mm |
| 6 | 3.05mm * 1.4mm | 3.0mm * 1.3mm | 40mm | 5.0±0.2mm | 4.2±0.2mm |
| 8 | 3.95mm * 1.95mm | 3.6mm * 1.8mm | 40mm | 5.8±0.2mm | 4.6±0.2mm |
| 12 | 3.95mm * 1.95mm | 4.5mm * 2.5mm | 40mm | 6.6±0.2mm | 5.5±0.2mm |
Splice Protection Sleeve Technical Data:
| ITEM | Test Method | Typical Value |
| Working Temperature | IEC216 | -55℃-100℃ |
| Tensile | ASTM D 2671 | 18MPa |
| Break/Tensile Ratio | ASTM D 2671 | 700% |
| Density | ISO R1183D | 0.94g/cm 3 |
| Compression Strength | IEC243 | 25KV/mm |
| Volume Resistivity | ICE243 | 1015Ω.com |
| Dielectric Constant | IEC243 | 2.5 |
| Longitudinal Shrinkage Ratio | ASTM D 2671 | ≤ 5% |
| Tilted Wall Rate | ASTM D 2671 | 10% |

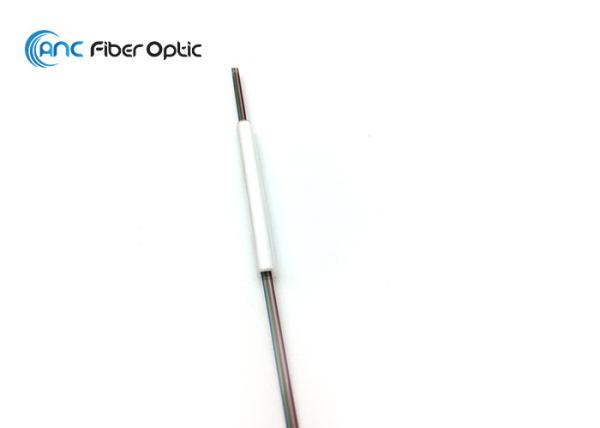

Ribbon Fiber Splice Protection Sleeve Pictures
