SC Male to LC Female Fiber Optic Adapters, SM / MM Optional ,
Simplex / Duplex Optional
Description

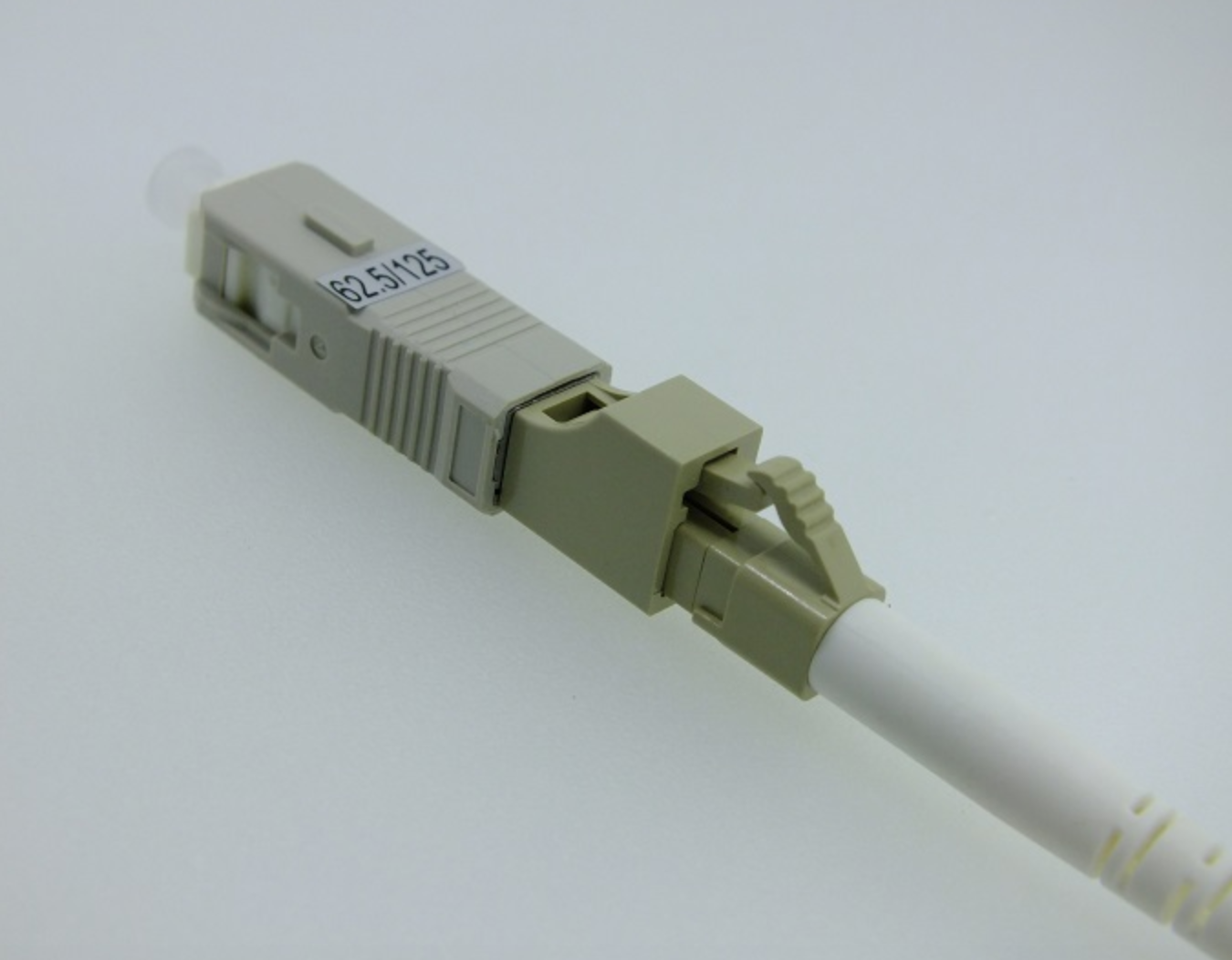

SC Male to LC Female Fiber Optic Adapters manufactured by ANC
International Co., Limited inexpensively adapt connector interfaces
to new equipment, upgrade distribution panels and eliminate the
need to re-terminate cable assemblies. Fiber optic adapter,
sometimes also called coupler, is a small device designed to
terminate or link the fiber optic cables or fiber optic connectors
between two fiber optic lines. These hybrid SC Male to LC Female
adapters are used to make connection between 1.25mm LC Connector
(male end) and 2.5mm SC adapter (female end). The female to male
fiber adapters have embedded fiber and ceramic sleeves inside to
make precise connection. The fiber used inside can be SM, OM1, OM2,
OM3, OM4 or other customized. The housing color can be blue, green,
beige, aqua, violot for easy fiber identification. These SC male to
LC female fiber adapters have simplex and duplex type optional.
ANC has big and automatic adapter production lines in Zhejiang
Province. It can supply full-lines of fiber optic adapters, such as
standard bulk head SC, LC, FC, ST, MU, MPO, E2000, MTRJ, DIN, SMA
etc fiber optic adapters;
female-female hybrid adapters, such as LC-SC, LC-FC, SC-FC, SC-ST,
MU-LC, etc;
female-male hybrid adapters, such as SC Male-LC Female; FC male-SC
female fiber optic adapters etc;
Various shutter adapters;
Bare fiber adapters;
Specification
Low insertion loss
High interface performance
High return loss
Easy to handle
Free-hanging or panel-mount design
Environmentally stable
Can be used with Visual Fault Locator
Usage
Telecommunication Networks
CATV Networks
Active Device Termination
Local Area Networks
Fiber to The Home
Test Instrument
Parts & Material
| Parts | Material | Remarks |
| LC Housing | Plastic | |
| SC Housing | PBT | Flammability UL94 V-0 |
| Dust cap | LDPE | |
| Ferrule and Sleeve inside | Ceramic | |
Optical Performance
| | Premium Grade | Standard Grade |
| Insertion Loss | ≤0.2dB | ≤0.3dB |
| Durability | 500 times | 500 times |
Environment and Mechanical
| Properties | Test condition | Compliant | Test result |
| Vibration | 10-55Hz, 1.5mm, 60min | IEC61300-2-1 | ≤0.2dB |
| Mating Durability | 1000 Mating, clean every 25 mating. | IEC61300-2-2 | ≤0.2dB |
| Impact | 1.5m, 8 drops | IEC61300-2-6 | ≤0.2dB |
| Strength of Coupling Mechanism | 40N, 10Min, L=22-28cm | IEC61300-2-12 | ≤0.2dB |
| Temperature Cycling | 40ºC to +75ºC, 40 cycles | IEC61300-2-22 | ≤0.2dB |
| Temperature humidty cycling | 40ºC, 95%, 96Hr | IEC61300-2-21 | ≤0.2dB |
| Operating Temperature | -40ºC to +85ºC | | ≤0.2dB |
| Storage Temperature | -40ºC to +85ºC | | ≤0.2dB |

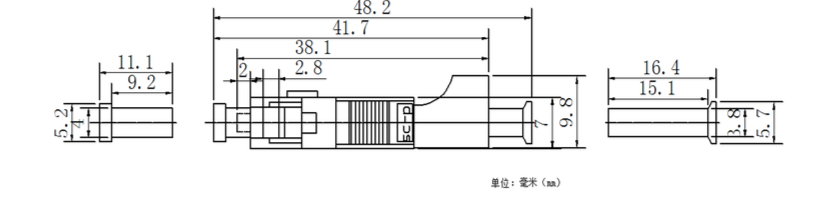

Product Drawing

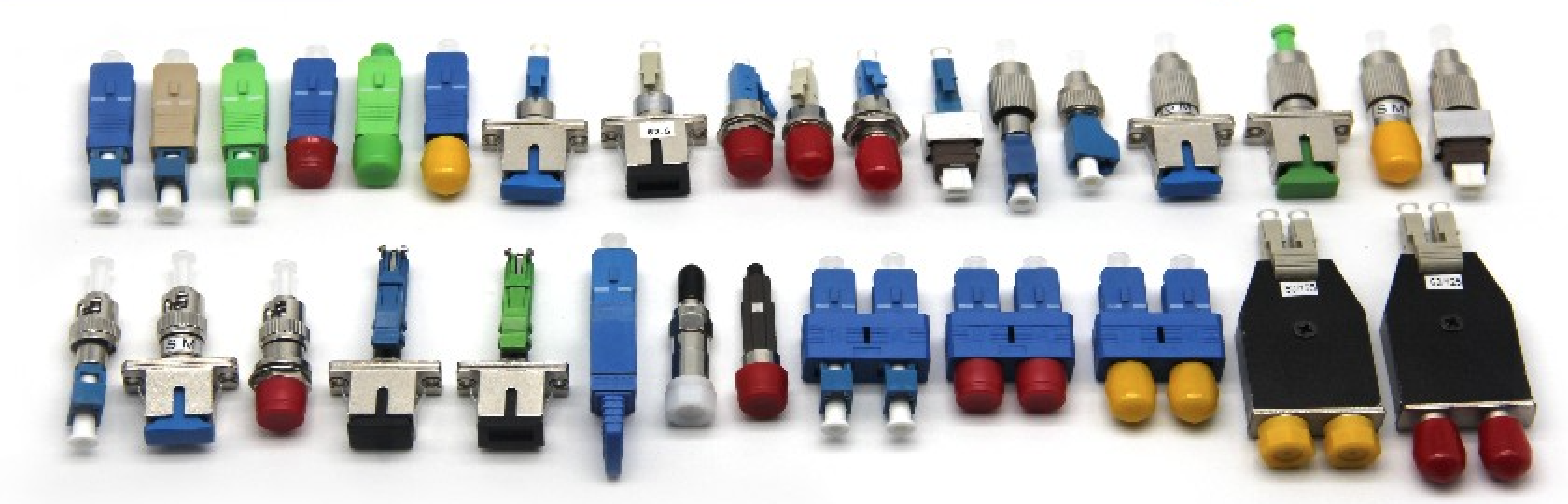

Related Products Pictures
