0.9mm ST Fiber Optic Connector, Single mode or Multi mode Optional,
100pcs/Pack
Description

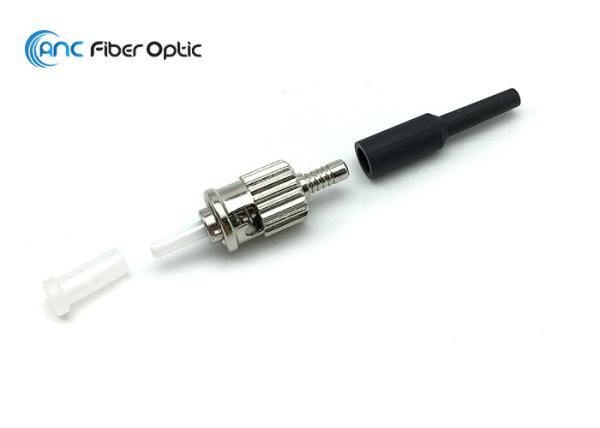

0.9mm ST Fiber Optic Connector manufactured by ANC International
Co., Limited are especially designed to provide low insertion loss
and back reflection, along with high precision and mechanical
stability. ST Means (Straight Tip) It has a bayonet mount that
allows for quick connects and disconnects and a long cylindrical
2.5 mm ceramic ferrule to hold the fiber. The ST Connector body is
made of nickel plated metal, which resist corrosion. They come with
boots suitable for 0.9mm fiber cable diameters. ST connectors
feature a screw-on collet that ensures precise connections in high
vibration environments. These fiber optic connector kit comply with
IEC 61754-13 and TIA 604-4-B, FOCIS-4 intermateability standards
and conform to RoHS environmental requirements.
ANC fiber optic connectors kits are available in a variety of
optical fiber connectors including, SC, LC, ST, FC, MT-RJ, MU, MPO,
LX.5, FDDI, ESCON etc.
Specification
Recommended Cable Diameter: 0.9mm
Polishing: PC
SM and MM ST connectors optional
ST Boot Color: Black, Blue, Yellow, Green, Red, White etc.
Insertion Loss: < 0.3dB
Operating Temperature: -20° to +70° C

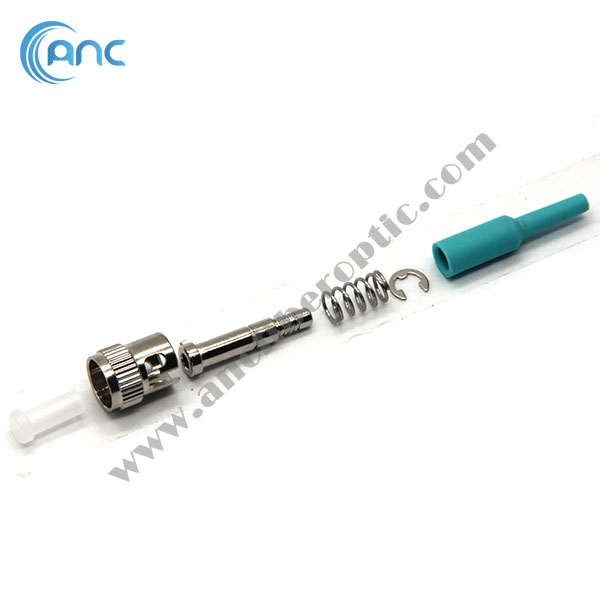

One-piece or Multi-piece ST Fiber Optic Connectors available
Features
Accurate mechanical dimensions
Low insertion loss, high return loss,
0.3um, 0.5um, 1.0um, 4.0um ferrule concentricity optional
Excellent compatibility and repeatability
Connector body is made of nickel plated metal, which resist
corrosion.
Usage
Local Area Network (LANs)
Wide Area Networks (WAN),
Metropolitan Area Networks (MAN)
Data center, business, premises, FTTH and commercial applications
Optical Access Network
Optical CATV
Technical Data
| Parameter | Unit | LC, SC, FC, ST, E2000, MU, LX.5 |
| SM | MM |
| UPC | APC | PC |
| Insertion Loss (Typical) | dB | ≤ 0.2 | ≤ 0.2 | ≤ 0.2 |
| Return Loss | dB | ≥ 50 | ≥ 60 | ≥ 30 |
| Ferrule Concentricity | um | <0.5um or <1.0um | <4.0um |
| Ferrule Inner Diameter | um | 125.3um~126.3um | 127um or 126um |
| Exchangeability | dB | ≤ 0.2 |
| Repeatability | dB | ≤ 0.2 |
| Durability | Time | ≥ 1000 |
| Operating Temperature | ℃ | -40 ~ 75 |
| Storage Temperature | ℃ | -40 ~ 85 |
