MTRJ to MTRJ Fiber Optic Adapters, Duplex, with SC Simplex Mounting
Hole
Description
Duplex MTRJ to MTRJ Fiber Optic Adapters with SC Simplex Mounting
Hole manufactured by ANC International Co., Limited can fit into
the rectangular hole used with traditional SC couplers. These MTRJ
fiber optic adapters feature a lightweight yet durable plastic
body, they are normally used to connect two duplex MTRJ fiber optic
cables (Each single MTRJ connector is actually duplex, containing
two fibers). Instead of alignment sleeves in the adapter, MTRJ
connectors are designed to mate with alignment pins. There are two
holes visible in the face of the connector. Contrary to first
impressions, these are not for the light signals, but are to accept
the alignment pins. When using a MTRJ-MTRJ adapter, it is necessary
to insert two alignment pins in (only) one of the connectors. These
pins will mate with the holes in the MTRJ connector inserted from
the other side of the adapter, ensuring proper alignment of the two
(almost invisible) fibers. The singlemode and multimode MT-RJ
adapters are used in two fiber optical interconnects and are
therefore well suited for high density applications. The MT-RJ
Adapter comes standard in black, with additional colors available
upon request.
ANC has big and automatic adapter production lines in Zhejiang
Province. It can supply full-lines of fiber optic adapters, such as
Standard bulk head adapters, such as SC, LC, FC, ST, MU, MPO,
E2000, MTRJ, DIN, SMA fiber optic adapters etc;
Female-Female hybrid adapters, such as LC-SC, LC-FC, SC-FC, SC-ST,
MU-LC, fiber optic adapters etc;
Female-Male hybrid adapters, such as SC Male-LC Female; FC male-SC
female fiber optic adapters etc;
Various shutter adapters;
Bare fiber adapters;
Specification
Used to connect two MTRJ connectors together (one MTRJ male
connector and one MTRJ female connector)
TIA/EIA568-A compliant
Plastic body provides a light weight yet durable solution
Innovative body design fits into standard SC panel cut outs
Available in black and beige colored body
Dust caps protect against debris and contamination
Low insertion loss
High precision of mechanical dimensions
High reliability & stability
RoHS compliant
Usage
FTTx
Gigabit Ethernet, Asynchronous Transmission Method (ATM)
LAN
Telecommunication Networks
Premise installations
Parts & Material
| Parts | Material | Remarks |
| Sleeve | none | use alignment pins |
| Housing | Plastic PBT | SC Simplex Style |
| Dust cap | PC | Flammability UL94 V-0 |
Optical Performance
| Insertion Loss (Typ) | 0.2dB | IEC 61300-3-4 |
| Mating Durability | 500 matings | IEC 61300-2-2 |
| Receptacle Retention Force | 2N – 5.9N | IEC 61754-13 |
| Vibration Test | 10 - 55Hz 0.75 amplitude | IEC 61300-2-1 |
| Drop Test | Drop height 1m, 5 drops | IEC 61300-2-12 |
| Operating Temperature | -25 to +70, 12 cycles | IEC 61300-2-22 |

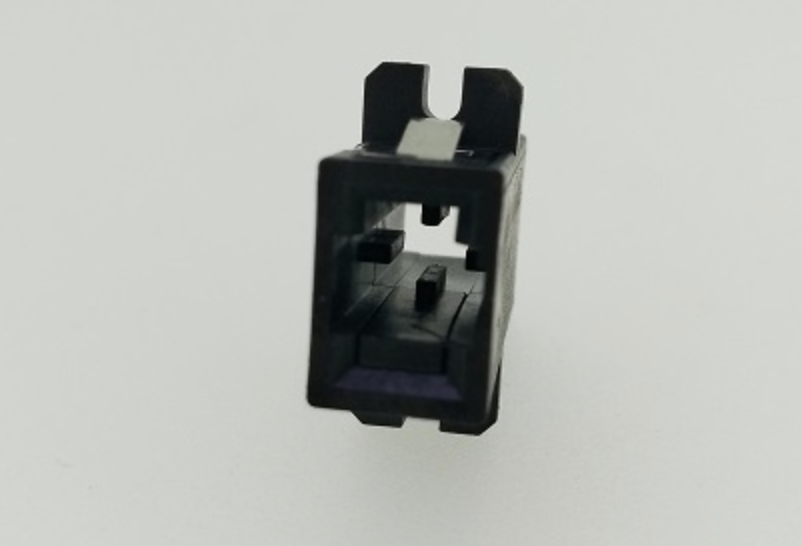

Product Drawing

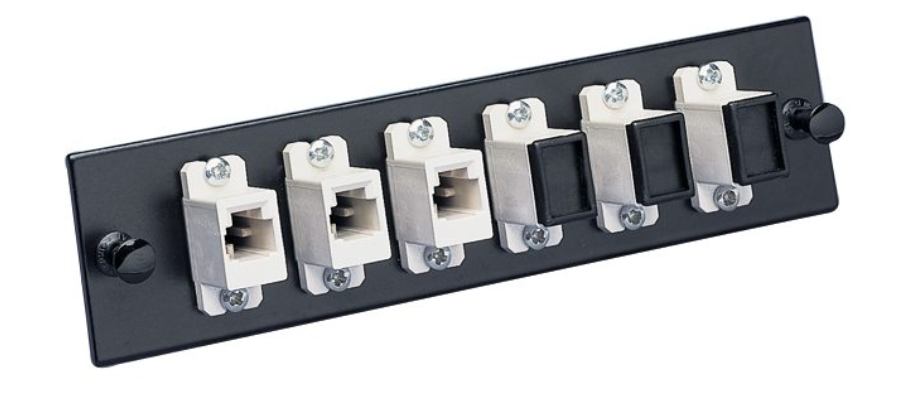

Related Products Pictures
