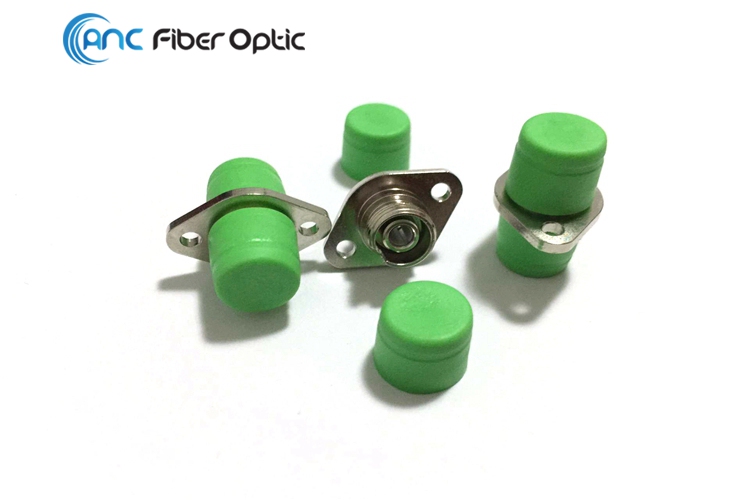

Metal Housing FC FC/APC Oval Fiber Optic Adapters With Different
Color Dust Cap
Description
FC Oval Fiber Optic Adapter manufactured by ANC International Co.,
Limited features nickel plated brass or zinc alloy metal housing
for corrosion resistance. These FC Oval Fiber Optic Adapters have
phos. bronze or zirconia sleeves optional. They are also available
in UPC or APC style.
ANC can produce full range of FC fiber optic adapters, such as big
D (13mm diameter), small D (11mm diameter), rectangle SC outout FC
fiber optic adapter, square shape FC adapter, oval shape FC
adapter, etc. These mentioned FC adapters are with metal housing,
except metal housing FC adapter, ANC has also plastic housing FC
adapters optional to meet different environment.
ANC has big and automatic adapter production lines in Zhejiang
Province. It can supply full-lines of fiber optic adapters, such as
Standard bulk head adapters, such as SC, LC, FC, ST, MU, MPO,
E2000, MTRJ, DIN, SMA fiber optic adapters etc;
Female-Female hybrid adapters, such as LC-SC, LC-FC, SC-FC, SC-ST,
MU-LC, fiber optic adapters etc;
Female-Male hybrid adapters, such as SC Male-LC Female; FC male-SC
female fiber optic adapters etc;
Various shutter adapters;
Bare fiber adapters;
Specification
FC Fiber Adapter Type: SM FC/PC, SM FC/APC, MM FC/PC adapter
available
Oval types
FC Adapter Cap Color: Red, Green, etc.
Corrosion resistant body
Ultra low insertion loss
Precision alignment mechanism
RoHS compliant
NTT-FC compatibility
Usage
Telecommunication networks
Local Area Networks (LANs)
Data processing networks
Industrial, military and medical
CATV
Optical Performance
| | Premium Grade | Standard Grade |
| Insertion Loss | ≤0.1dB | ≤0.2dB |
| Durability | 1000 times | 1000 times |
Environment and Mechanical
| Properties | Test condition | Compliant | Test result |
| Vibration | 10-55Hz, 1.5mm, 60min | IEC61300-2-1 | ≤0.2dB |
| Mating Durability | 1000 Mating, clean every 25 mating. | IEC61300-2-2 | ≤0.2dB |
| Impact | 1.5m, 8 drops | IEC61300-2-6 | ≤0.2dB |
| Strength of Coupling Mechanism | 40N, 10Min, L=22-28cm | IEC61300-2-12 | ≤0.2dB |
| Temperature Cycling | 40ºC to +75ºC, 40 cycles | IEC61300-2-22 | ≤0.2dB |
| Temperature humidty cycling | 40ºC, 95%, 96Hr | IEC61300-2-21 | ≤0.2dB |
| Operating Temperature | -40ºC to +85ºC | | ≤0.2dB |
| Storage Temperature | -40ºC to +85ºC | | ≤0.2dB |
