3.0mm LC Flexible Boot Fiber Optic Cable Assemblies in White Black
Red Blue Colors
Description
3.0mm LC Flexible Boot Fiber Optic Cable Assemblies manufactured by
ANC International Co., Limited utilize specialized flexible boots
that can be bent in a variety of angles including 90° without
exceeding the recommended bend tolerances of the cable. The
Flex-Angle boot is designed to bend and maintain any angle or
direction from straight to 90°. The boot is molded over a single
stainless steel wire and can be easily positioned by hand. The
internal wire holds the boot at the desired angle or direction.
Bend them into the angle that best fits your application! Our fiber
optic cables are functionally tested to guarantee top performance
upon delivery. Custom lengths, connector combinations and polishes
are available.
Our company has more than 100 workers in Shenzhen to produce
36000pcs terminators per day. Our skilled workers and quality
control department work closely together to guarantee every piece
of our fiber optic patch cord is excellent stable quality and fine
looking.
In LC family product, we can produce Standard LC patch cord, grade
B LC patch cord, LC uniboot Patch Cord; LC Switchable Patch cord,
LC Armored Patch Cord, LC IP67 Patch Cord, LC Pigtail, Multi-fiber
LC Patch cord, Waterproof LC patch cord optional;
The fiber optic patch cord can be customized in production, color,
label, packing, etc. We are very good at OEM and ODM production for
various fiber optic patch cords;
Features
Custom labeling available
Available in a wide variety of connector types, cable designs, and
lengths
Multiple boot size, colors and angle options available
Custom configurations available upon request
SM G652D, G655, G657A1, G657A2, G657B3 fiber optional
Low insertion loss and high return loss
3D pass rate optional;
Applications
Telecommunication
Data Network
LAN, FTTX
CATV
Technical Data
Parameter for single mode patch cord
| Characteristics | Unit | Value/Performance |
| Insertion Loss (IL) | dB | ≤0.2 (typical); ≤0.3 (maximum) |
| Return Loss (RL) | dB | UPC≥50/APC≥60 typical |
| Operating Wavelength | nm | 1310 & 1550 |
| Mating | | ≥500 times |
| Tensile | N | 100 |
| RoHS Compliant | | Yes |
| Operating Temperature | ℃ | -20~+80 |
Parameter for OM1/OM2/OM3/OM4 multi-mode patch cord
| Characteristics | Unit | Value/Performance |
| Insertion Loss (IL) | dB | ≤0.2 (typical); ≤0.3 (maximum) |
| Return Loss (RL) | dB | PC≥35 typical |
| Operating Wavelength | nm | 850nm |
| Mating | | ≥500 times |
| Tensile | N | 100 |
| RoHS Compliant | | Yes |
| Operating Temperature | ℃ | -20~+80 |
Boot Pictures

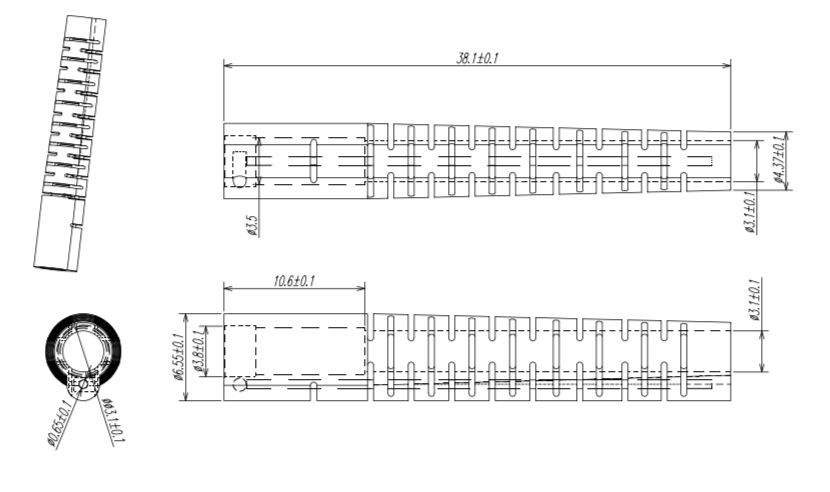

Boot Drawing
