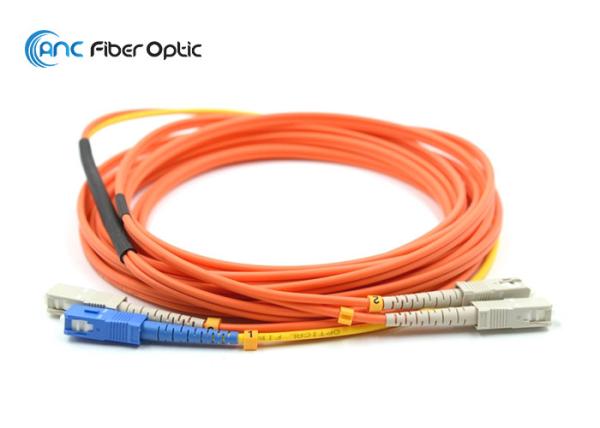

Mode Conditioning Fiber Optic Patch Cord with LC SC FC ST MU
Connectors
Description
Mode Conditioning Fiber Optic Patch Cord (MCP) manufactured by ANC
International Co., Limited is used typically when client wants to
run Gigabit Ethernet (LX) over some multi mode fiber optic plant.
Launching a singlemode laser into the center of a multimode fiber
can cause multiple signals to be generated that confuses the
receiver at the other end of the fiber. These multiple signals,
caused by Differential Mode Delay (DMD) effects, severely limit the
cable distance lengths for operating Gigabit Ethernet. A mode
conditioning patch cable eliminates these multiple signals by
allowing the singlemode launch to be offset away from the center of
a multimode fiber. Mode Conditioning Patch Cable utilizes both
singlemode and multimode fiber enabling a singlemode signal to be
correctly sent through a multimode network. For this application,
the singlemode end of a mode conditioning cable should always be
connected to the equipment side, while the multimode end should be
connected to the plant side. ANC supplies standard and customized
mode conditioning patch cables (MCP) in 62.5/125 and 50/125 with
various connector combination, such as SC, LC, LC/APC, SC/APC, FC,
ST, MU etc, which are specified for 1000BASE-LX/LH and 10GBASE-LRM
transceivers transmitting in the 1300nm window and applicated over
multimode plants.
Our company has more than 100 workers in Shenzhen to produce
36000pcs terminators per day. Our skilled workers and quality
control department work closely together to guarantee every piece
of our fiber optic patch cord is excellent stable quality and fine
looking.
In LC family product, we can produce Standard LC patch cord, grade
B LC patch cord, LC uniboot Patch Cord; LC Switchable Patch cord,
LC Armored Patch Cord, LC IP67 Patch Cord, LC Pigtail, Multi-fiber
LC Patch cord, Waterproof LC patch cord optional;
The fiber optic patch cord can be customized in production, color,
label, packing, etc. We are very good at OEM and ODM production for
various fiber optic patch cords;
Features
IEEE 802.3Z standard compliant
Different fiber optic connectors, such as LC, SC, FC, ST, SC/APC,
LC/APC optional
Available with 62.5/125µm OM1 and 50/125µm OM2 multimode cable
Different jacket material and customized cable length optional
Permanent offset closure
Eliminates issues related to Differential Mode Delay (DMD)
OEM and ODM customized production
Applications
Long Haul to Short Haul LX Gigabit Systems
Recommended for Multimode cable runs greater than 50 feet
Gigabit Ethernet 1000Base-LX (1300nm wavelength)
Technical Data
| Mode conditioning cable technique data | |
| Connector types available | SC,FC,ST,LC,MU |
| Transmit insertion loss | Typical 0.35dB |
| Receive insertion loss | Typical 0.15dB |
| Return loss | ≧55dB |
| Working temperature | 45 to +85 ℃ |
| Standard | IEEE 802.3 Z |
