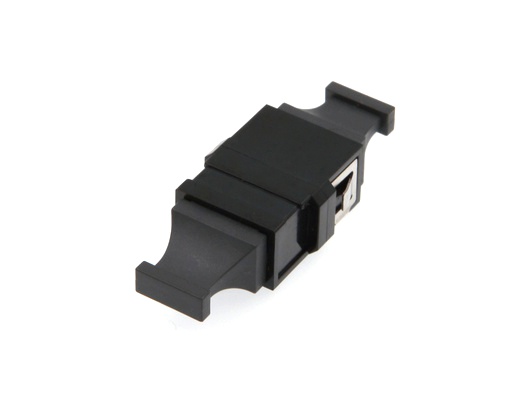

MTP MPO Fiber Optic Adapter / Mating Sleeve
Description
MTP MPO Fiber Optic Adapter manufactured by ANC International Co.,
Limited is made in both die-cast and thermoplastic. The MPO
adapters are precision manufactured to ensure intermateability with
industry standard assemblies and connectors. MTP MPO adapters have
full flange or reduced flange type optional. The footprint of this
MPO fiber optic adapter can be standard mpo footprint or sc simplex
footprint. The MTP/MPO adapter has two types alignment, that's
key-up to key-down and key-up to key-up. It provides the connection
between cable to cable or cable to equipment in the MTP/MPO style.
It works for any MTP MPO Connector from 4 fiber to 72 fiber, widely
used in trunk cabling and cassettes. The MPO Adapter comes standard
in black, with additional colors available upon request.
ANC has big and automatic adapter production lines in Zhejiang
Province. It can supply full-lines of fiber optic adapters, such as
standard bulk head SC, LC, FC, ST, MU, MPO, E2000, MTRJ, DIN, SMA
etc fiber optic adapters;
female-female hybrid adapters, such as LC-SC, LC-FC, SC-FC, SC-ST,
MU-LC, etc;
female-male hybrid adapters, such as SC Male-LC Female; FC male-SC
female, ST Male-LC female, LC Male-SC Female fiber optic adapters
etc;
Various shutter adapters;
Bare fiber adapters;
Specification
Accepts industry standard MPO/MTP® interfaces
Full flange or reduced flange optional
One-piece design or two-piece design optional
Black color or customized color optional
Compact size and precision design
Low insertion loss & good exchangebility
Small Size but Excellent Performance
Usage
10G/40G/100G networks
Data center
Optical fiber communication system
Cable television network
Fiber optic access network and video transmission.
Parameters
| Body material | Polymer |
| Color | Black or customized |
| Flange | Full flange or reduced flange optional |
| Keyway | up-down or up-up |
| Footprint | Standard MPO footprint or SC footprint |
| Alignment sleeve material | none, uses alignment pins on one connector to mate with alignment
holes on the other connector. |
| Insertion loss | <0.2dB |
| Durabilty | <0.2dB change after 500 matings |
| Operating Temperature | -40° to +75°C |

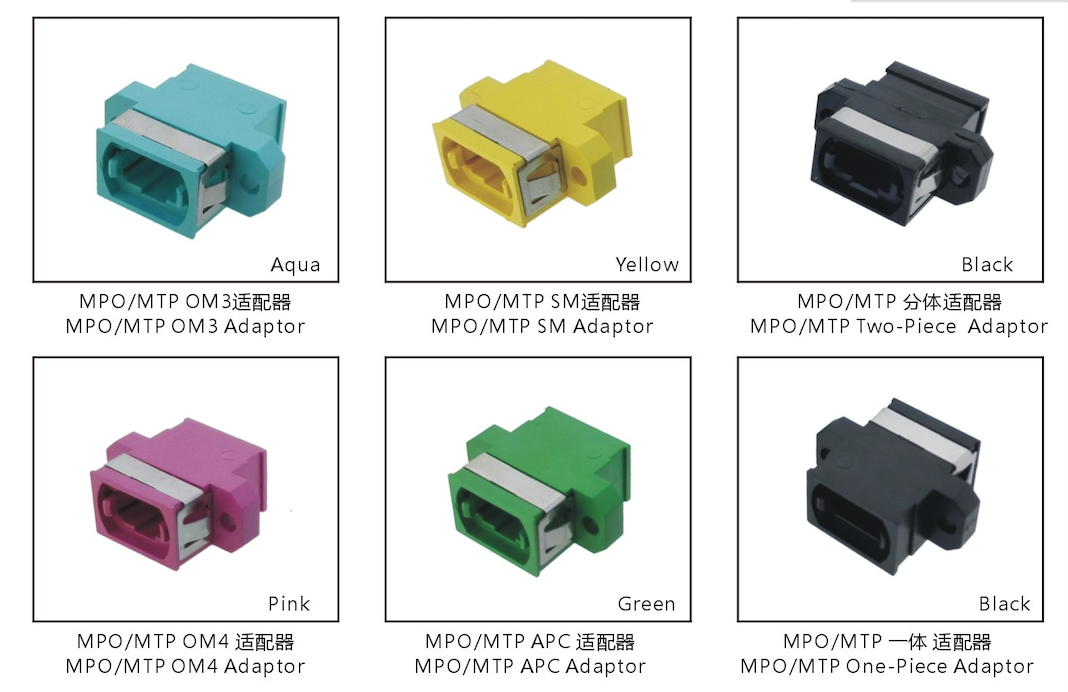

Related Products Pictures
