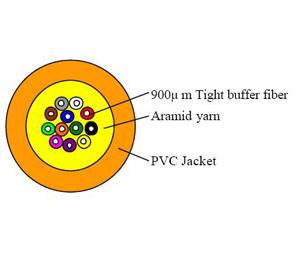

Distribution Fiber Optic Cable PVC LSZH Jacket 4F 6F 12F 16F 24F
36F 48F
Description
PVC LSZH Jacket 4F 6F 12F 16F 24F 36F 48F Indoor Distribution Fiber
Optic Cable manufactured by ANC International Co., Limited is
designed to support today's data needs while meeting tomorrow's
ever-advancing network requirements. ANC Fiber Optic Distribution
Cable is used within buildings to provide high-density connectivity
and ease of installation. Applications include intra-building
backbones, routing between telecommunications rooms and
connectorized cables in riser and plenum environments.
Specification
Good mechanical and environmental properties
Soft, flexible, easy to splice
With big capacity data transmission
Meet various requirements of market and clients
Flame retardant characteristics meet the requirements of relevant
standards
Usage
Use in pigtails and patch cords
Used as interconnect lines of equipment
Used in optical connections in optical communication rooms and
optical distribution frames
Used in indoor cabling, especially used as distribution cable
Technical Data
| Cable Type | Fiber Count | O.D. (mm) | Weight (kg/km) | Max. Tension | Crush Resistance |
| Long/Short Term | Long/Short Term |
| N | N/100mm |
| GJFJV (Y) | 4 | 4.8±0.2 | 18 | 270/90 | 1000/300 |
| GJFJV (Y) | 6 | 5.2±0.2 | 23 | 330/110 | 1000/300 |
| GJFJV (Y) | 8 | 6.2±0.2 | 29 | 480/160 | 1000/300 |
| GJFJV (Y) | 12 | 6.8±0.3 | 37 | 600/200 | 1000/300 |
| GJFJV (Y) | 16 | 7.6±0.3 | 46 | 600/200 | 1000/300 |
| GJFJV (Y) | 24 | 8.4±0.5 | 61 | 720/240 | 1000/300 |
| GJFJV (Y) | 32 | 10.2±0.3 | 98 | 1000/330 | 1000/300 |
| GJFJV (Y) | 36 | 10.5±0.5 | 110 | 1000/330 | 1000/300 |
| GJFJV (Y) | 48 | 12.5±0.5 | 126 | 1200/520 | 1000/300 |
Types of fiber: G.652 A/B/C/D or G.655 A/B/C Single-mode fiber, A1a
or A1b multimode fiber, or other types of fiber
Material of jacket: Flame-retardant polyvinyl chloride (PVC), low
smoke zero halogen flame retardant polyolefin (LSZH),
thermoplastics polyurethane (TPU), or other contracted material
Color of Jacket: (including the color of fiber in cable core) meets
the requirements of relevant standards, or other contracted color
Cable dimension: The nominal diameter, or other contracted
Delivery Length: 1km or 2km, or other contracted length
Other requirements: Other contracted individual requirements
