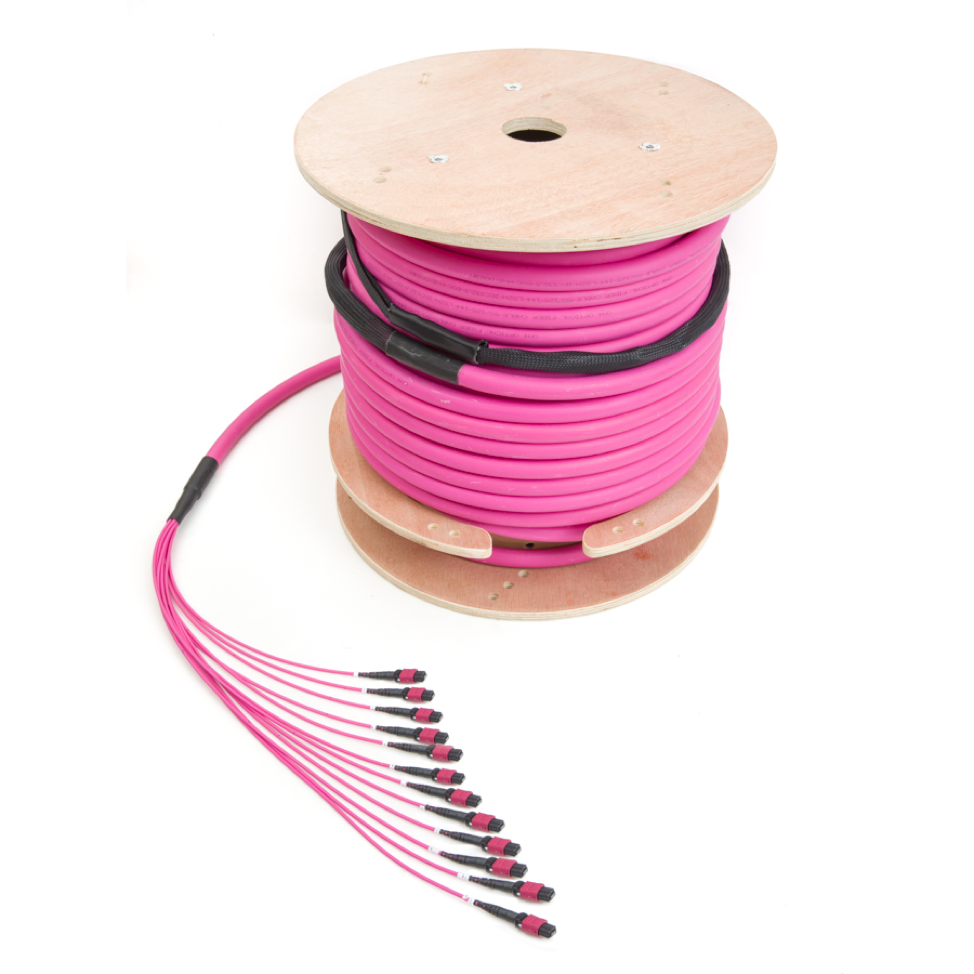

Ribbon Fiber Optic Cable Types SM OM3 12 Fiber MPO Female To MPO Female

Description:

SM OM3 Ribbon 12 Fiber 24Fiber MPO Female to MPO Female Fiber Cable manufactured by ANC International Co., Limited terminated 12F or 24F Senko MPO female connector on both ends of customized ribbon cable; The single mode MPO and MTP Fiber Cable normally uses an 8 degree APC angle polish to mitigate back reflection as per industry standards. MPO Connectors have Male and Female Connectors optional. 1pcs Male and 1pc Female connector are required to mate properly. MPO connectors use a “barrel sleeve” adapter that simply holds one male and one female MPO “plug” together. The male guide pins fit into the female holes to ensure precise fiber alignment. Attempting to mate two female connectors will result in a seemingly secure connection, but with extremely high loss. Attempting to mate two male connectors will most likely damage one or both connectors due to the guide pins clashing.

Features:

SM (9/125 G657A1), MM (50/125 or 62.5/125), OM3, OM4, OM5 fiber optional;
Female and Male MPO MTP connectors optional
8Fiber, 12Fiber, 24Fiber MPO MTP Connectors optional;
Standard Loss and Low Loss optional
High density connections between network equipment in telecommunication rooms;

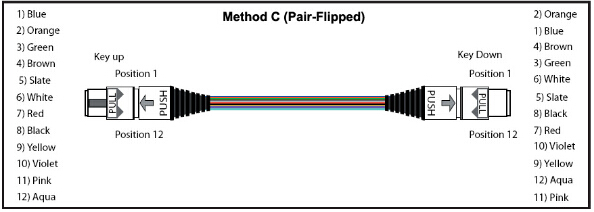

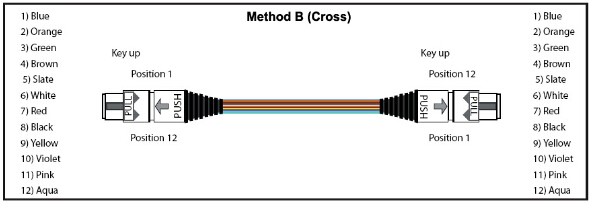

Type A or Type B or Type C optional;
LSZH, OFNR, OFNP Jacket optional;
Easy installation and removal with push-pull latching

Applications:

Telecommunication
Data Network
LAN, FTTX
CATV

Optical Performance:

Interferemeter Test:

ANC International Co., Limited is an experienced OEM & ODM manufacturer and supplier for fiber optic patch cord and pigtails, fiber optic adapters, attenuators, PLC Splitters, CWDM, DWDM, OADM, fiber switch, fiber isolator, circulator, SFP transceiver, media converter, fiber optic patch panel, termination boxes, fiber optic cleaners and tools in Shenzhen, China.

Established in year 2005, ANC has been growing with clients over pass 10 years. Right now, ANC has plastic and adapter production plant in Hangzhou, has patch cord & attenuator assembly line in Shenzhen. Its products have been selling to big companies in China and reputed clients worldwide.

ANC focus on fiber optic products only. It aims to provide high quality and low lost customized products to meet client request.
