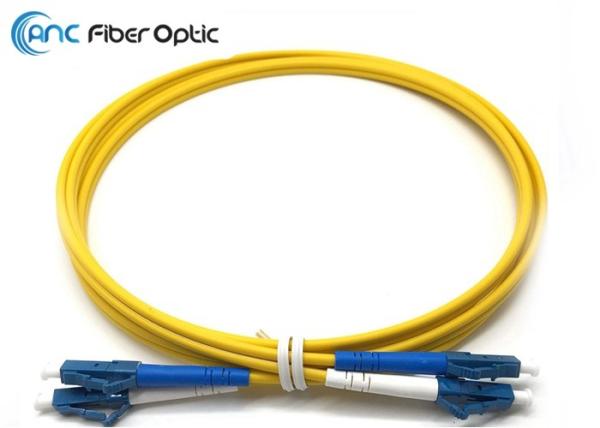

LSZH Singlemode Fiber Optic Patch Cables LC/UPC to LC/UPC Yellow 3
Meter
Description
LSZH SM Duplex LC/UPC-LC/UPC Patch Cord 1m, 3m with 2.0mm or 3.0mm
cable manufactured by ANC International Co., Limited has low
insertion loss and high return loss. LC connector uses 1.25mm
diameter ceramic ferrule inside, it is smaller in size compared
with SC, FC, ST, etc. The SM fiber can transport data for up to
10km at 1310nm, or up to 40km at 1550nm. This SM LC-LC Duplex Fiber
Optic Patch Cord is ideal for fast Ethernet, Fiber Channel, Gigabit
Ethernet Speeds, data center, premises, educational, LAN, SAN,
commercial, 10GBASE-L (1310 nm), 10GBASE-E (1550 nm), 1000BASE-LX
(1300 nm) and Asynchronous Transfer Mode (ATM) applications. It
supports video, data and voice services.
Our company has more than 100 workers in Shenzhen to produce
36000pcs terminators per day. Our skilled workers and quality
control department work closely together to guarantee every piece
of our fiber optic patch cord is excellent stable quality and fine
looking.
In LC family product, we can produce Standard LC patch cord, grade
B LC patch cord, LC uniboot Patch Cord; LC Switchable Patch cord,
LC Armored Patch Cord, LC IP67 Patch Cord, LC Pigtail, Multi-fiber
LC Patch cord, Waterproof LC patch cord optional;
The fiber optic patch cord can be customized in production, color,
label, packing, etc. We are very good at OEM and ODM production for
various fiber optic patch cords;
Features
SM G652D, G655, G657A1, G657A2, G657B3 fiber optional
Low insertion loss and high return loss
3D pass rate optional;
Cable lengths and cable types optional
PC or UPC or APC termination types
OEM and ODM customized production
Applications
Telecommunication
Data Network
LAN, FTTX
CATV
Technical Data
Parameter for single mode patch cord
| Characteristics | Unit | Value/Performance |
| Insertion Loss (IL) | dB | ≤0.2 (typical); ≤0.3 (maximum) |
| Return Loss (RL) | dB | UPC≥50/APC≥60 typical |
| Operating Wavelength | nm | 1310 & 1550 |
| Mating | | ≥500 times |
| Tensile | N | 100 |
| RoHS Compliant | | Yes |
| Operating Temperature | ℃ | -20~+80 |
Parameter for OM1/OM2/OM3/OM4 multi-mode patch cord
| Characteristics | Unit | Value/Performance |
| Insertion Loss (IL) | dB | ≤0.2 (typical); ≤0.3 (maximum) |
| Return Loss (RL) | dB | PC≥35 typical |
| Operating Wavelength | nm | 850nm |
| Mating | | ≥500 times |
| Tensile | N | 100 |
| RoHS Compliant | | Yes |
| Operating Temperature | ℃ | -20~+80 |
3D pass rate is optional
