    SUS304 Fiber Splice Protection Sleeves

    Ask Lasest Price
    Brand Name : ANC
    Model Number : Heat-shrinkable Sleeve
    Certification : RoHS
    Price : please ask
    Payment Terms : T/T, Western Union
    Supply Ability : 200000pcs per day
    Delivery Time : 3-5 working days
    • Product Details
    • Company Profile

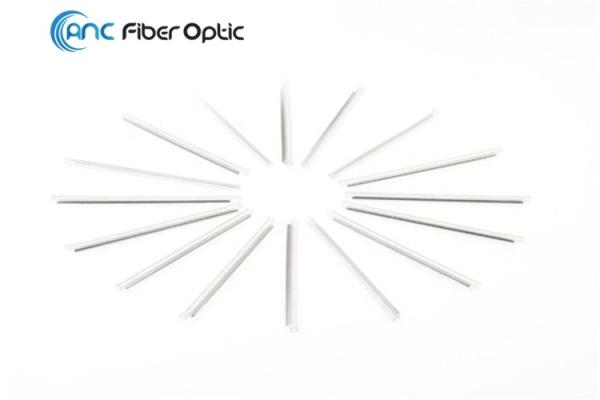

    SUS304 Fiber Splice Protection Sleeves

    60mm 45mm 40mm Length Fiber Optic Fusion Splice Protection Sleeves


    Description


    60mm 45mm 40mm Length Fiber Optic Fusion Splice Protection Sleeves Manufactured by ANC International Co., Limited intends to protect (mechanically) fiber optic splices. The protection sleeve is built from shrinkable plastic tube with metal cylinder inside. The fibers are inserted before splicing into the plastic tube. After making the splice, the shrinkable tube is heated and is shrinked on the splice. The result is optic splice that protected from breaks and unwanted bends and is coated with the plastic tube. It gives to the installer flexibility while using the spliced fibers during installation. Fiber Shrinkable Sleeve is applied to the optical fiber closure to fix and protect the optical fiber when splicing.

    The sleeve can be divided into two types (single and mass) according to the function. The single type is used for the single-fiber, and the mass type is used for the ribbon fiber. It is different in the reinforcement between two types. The single one realizes the reinforcement by the stainless steel needles, the later one via the ceramic reinforcement member to realize the function. Mass means there are several cores for the fiber. So the mass sleeve includes 4cores, 6cores, 8cores and 12cores (for types).


    Features:


    Single fiber & ribbon fiber fusion optional

    60mm 45mm 40mm length optional

    1.0mm 1.2mm 1.5mm steel O.D. optional


    Applications


    Fiber Fusion Splicing

    Fiber Optic Patch Panel

    Optical Distribution Frame
    Fiber Optic Terminal Box

    Fiber Optic Splice Closure


    Specifications


    SpecFusion Tube I.D. & LengthSteel Rod O.D & LengthDevice O.D. & Length (After shrink)Packing
    1.5 x 60mm1.7 & 60mm1.5 & 55mm3.0 & 60mm100pcs/bag
    1.5x 45mm1.7 & 45mm1.5& 40mm3.0 & 45mm100pcs/bag
    1.5 x 40mm1.7 & 40mm1.5 & 35mm3.0 & 40mm100pcs/bag
    1.2 x 60mm1.4 & 60mm1.2 & 55mm2.7 & 60mm100pcs/bag
    1.2 x 45mm1.4 & 45mm1.2 & 40mm2.7 & 45mm100pcs/bag
    1.2 x 40mm1.4 & 40mm1.2 & 35mm2.7 & 40mm100pcs/bag
    1.0 x 60mm1.2 & 60mm1.0 & 56mm2.4 & 60mm100pcs/bag
    1.0 x 40mm1.2 & 40mm1.0 & 35mm2.4 & 40mm100pcs/bag
