PON Networks Fiber Optic Coupler Splitter 1x8 Mini Tube Colored Or
White
Description

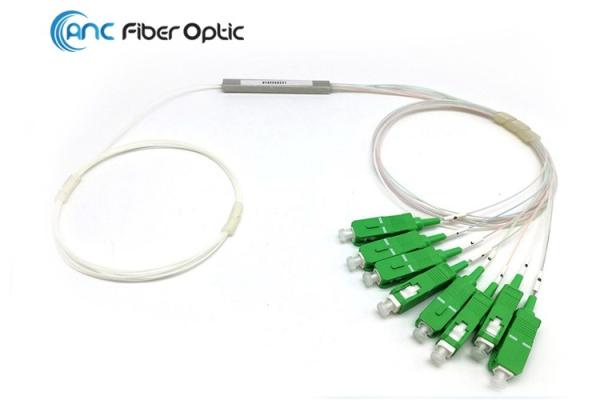

1x8 Mini Tube 60x7x4mm 0.9mm Fiber Optic PLC Splitters manufactured
by ANC International Co., Limited have stronger fiber protection
than bare fiber splitter, which is a miniaturization result of
cassette splitter. It's mainly used for various connection and
distribution boxes or network cabinets. This 1x8 mini tube PLC
Splitter is stable quality, low cost and largely demanded fiber
optic products.
Planar lightwave circuit (PLC) splitter is a type of optical power
management device that is fabricated using silica optical waveguide
technology to distribute optical signals from Central Office (CO)
to multiple premise locations.
ANC can produce full range of PLC splitters, such as 1×2, 1×4, 1×8,
1×16, 1×32, 1×64, 2×4, 2×8, 2×16, 2×32, 2×64 with following package
Bare fiber series
Mini loose tube package
ABS Module type
LGX box type
Rack and Wall Mount patch panel for PON application.
Inline fiber optic splice closure type
All products meet GR-1209-CORE-2001 and GR-1221-CORE-1999
requirements.
Features
Operating wavelength: 1260-1650 nm
Port: 1x8 (1 input, 8 output)
Fiber type: 900μm ITU G.657A1 for fiber input/output
Pigtail: diameter 0.9mm, length 1m (options)
Steel tube: 60x7x4 mm
Connector type: SC/APC, SC, FC/APC or customized
Telcordia GR-1221 and 1209 compliant
Compact design, suitable for installation in optical equipments
Applications
FTTX Systems
PON Networks
CATV Links
DWDM and CWDM System
Compliance
Telcordia GR-1209-CORE-2001
Telcordia GR-1221-CORE-1999
RoHS
Technical Data
1xN Splitter
| Parameters | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 1×128 |
| Operating Wavelength | 1260～1650nm |
| Fiber Type | Default G657A1 or customer specified |
Max. Insertion Loss ( P/S Grade ) (dB) | 3.8 /4.0 | 7.2/7.4 | 10.3/10.5 | 13.5/13.7 | 16.5/16.9 | 20.5/21.0 | 23.8/24.2 |
| Max. Loss Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2.0 | 2.5 |
| Max. Polarization Dependent Loss (dB) | 0.1 | 0.1 | 0.1 | 0.2 | 0.25 | 0.3 | 0.4 |
| Return Loss (dB) | ≦-55 |
| Directivity (dB) | ≦-55 |
Temperature Stability (-40～85°C)(dB) | ≦0.3 | ≦0.5 |
| Operating Temperature | -40～85°C |
| Storage Temperature | -40～85°C |
* S/P : ‘S’ means ‘Standard Grade’, and, ‘P’ means ‘Premium Grade
* IL values are measured @1310&1550nm
* IL, PDL, Uniformity values are for “Without connectors”
1xN Splitter ( Dimension: LxWxH, mm )
| Parameters | 1x2,1x4,1x8 | 1x16 | 1x32 | 1×64 | 1×128 |
| SUS Case with Ribbon Fiber | 40x4x4 | 50x7x4 | 50x7x4 | 60x12x4 | N/A |
| SUS Case with 900um tube | 60x7x4 | 60x12x4 | 80x20x6 | 100x40x6 | N/A |
| Plastic Module Box | 100x80x10 | 120x80x18 | 140x115x18 |
| 19” Rack-mount distribution box or cabinet | 19" 1U | 19" 2U |
