Outdoor Fullaxs-LC Fiber Optic Patch Cord IP67 Waterproof 4.8mm
Cable Diameter
Description
Outdoor IP67 Fullaxs-LC Fiber Optic Patch Cord manufactured by ANC
International Co., Limited is widely used for RRU, base station,
FTTA and outdoor waterproof conditions. Next generation WIMAX and
Long Term Evolution (LTE) Fiber To The Antenna (FTTA) connectivity
designs require rugged cable assemblies for outdoor use. For direct
connection these cable assemblies need to plug directly into the
optical transceivers though a bulkhead construction. For this
specific application the connector design will need to accommodate
for a large tolerance in Z-direction. Furthermore the connector
shell needs to allow for easy one handed mating.
The FullAXS connector system meets this requirement by allowing for
a large Z-direction tolerance while also offering the benefit of
one-hand installation of the connector shell. With this new product
offering, users can also conveniently remove and replace
transceivers through a cutout in the bulkhead that completely
eliminates the need to open the entire remote radio box and expose
its contents to hazardous weather conditions. For the optical
connection, the connector system includes an industry-standard
duplex LC interface for fast mating with all LC duplex SFP
transceivers.
Features
* Quick, highly repeatable, low-loss connections
* Simplex & Duples
* Singlemode & Multimode
* PC, UPC & APC polishing
* Various boot (cable) sizes available
* FC/ LC/ SC/ ST/ MTR/ MPO connectors available
* Interferential parameters
* Hybrid patch-cords are available upon request
* Low Insertion loss
* Low PDL
* Excellent channel-to-channel uniformity
* High return loss and Good repeatability
Applications
Widely used in FTTA & FTTH
WIMAX and LTE Base Stations
Used for 3G 4G base station
BBU, RRU, RRH, LTE
Industrial outdoor applications
Aerospace & Defense
Fullaxs-LC Fiber Optic Patch Cord Drawing
1. 2 core outdoor fiber cable, 4.8mm diameter, LSZH, black
2. Fullaxs overmolded drop protection, black
3. Fullaxs overmolded LC Duplex plug assembly
4. heat shrink tubing, black
5. protective tubing, black or customized color
6. LC duplex connector, standard
Technical Data
| Item | Data |
| Insertion Loss | ≤0.3dB |
| Return Loss | ≥50dB for SM/PC; ≥60dB for SM/APC |
| Mechanical life | 500cycles |
| Working temperature | -40°C~+70°C |
| Storage temperature | -40°C~+70°C |
| Operating temperature | -10°C~+50°C |
| Protection Level | IP67 |
| Cable Diameter | 4.8mm or customized |
| Cable Jacket Material | Blakc LSZH or customized |
| Authentication | Meet with RoHS |

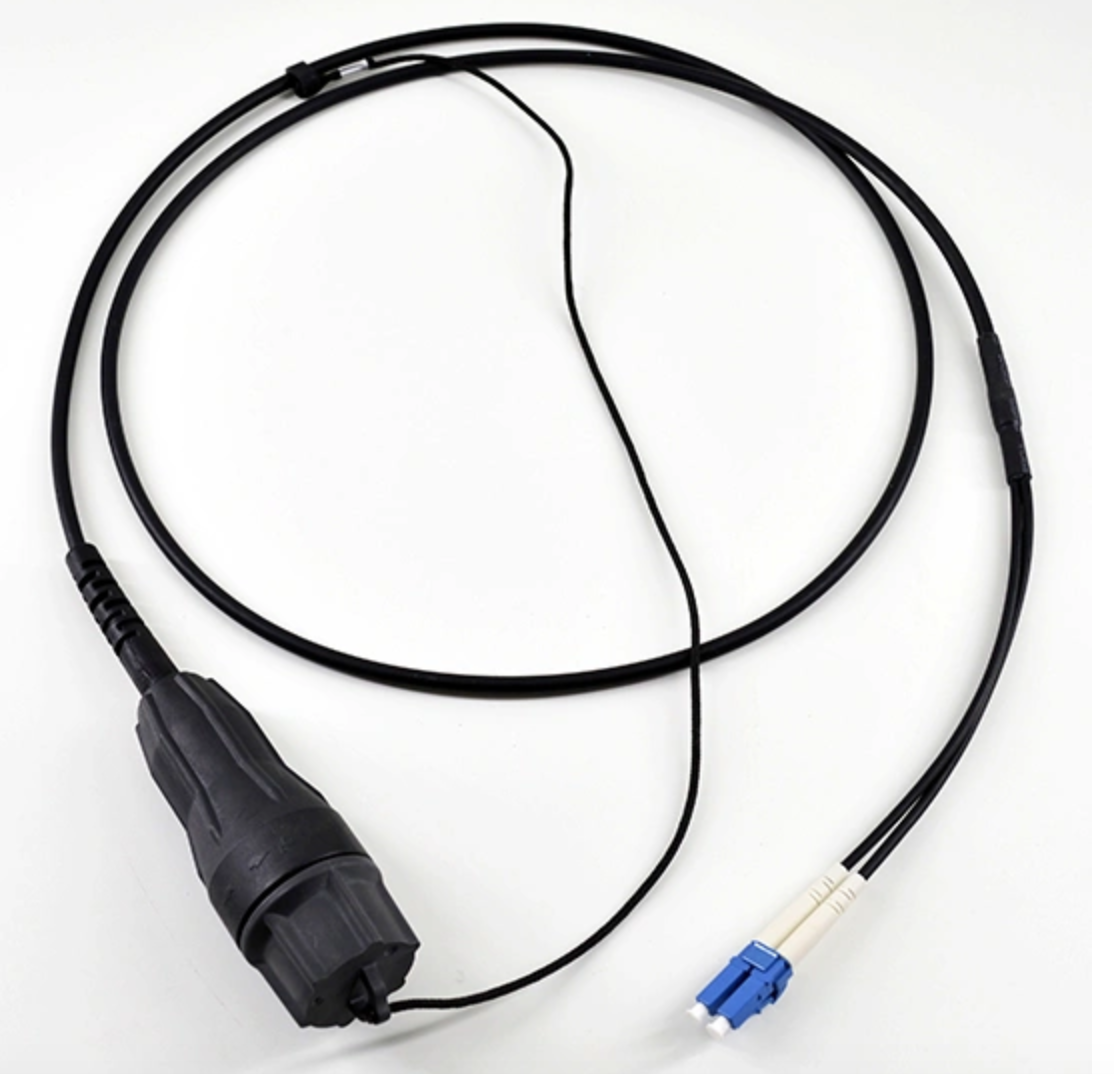

Fullaxs-LC Patch Cord Related Pictures
