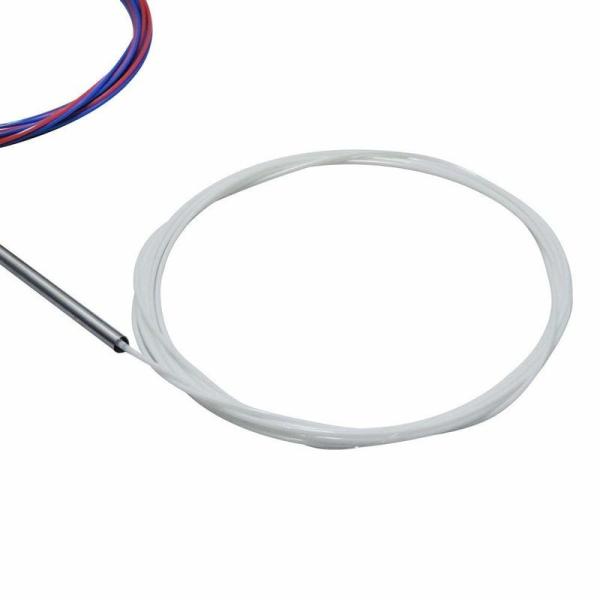

1550nm FBT Fiber Optic Coupler Single Mode Fiber Splitter 1x2

1x2 FBT Fiber Optic Coupler SM 1310 1550nm 50/50 0.9mm Without Connector

Description

1x2 Single Mode 1310/1550nm Dual Window Fiber Optic Coupler manufactured by ANC International Co., Limited is manufactured using the fused biconical taper process on fully software controlled automatic fabrication stations. The process consists of placing two or more fibers adjacent to each other, then fusing and stretching them to create a central coupling region. A fused coupler is a structure formed by two independent optical fibers. The FBT fiber optic coupler is used to split light with minimal optical loss from one to two fibers or to combine light from two fibers into one fiber. FBT SM couplers are availble with 900µm loose tube single-mode fiber or 250µm bare fiber and are terminated or unterminated as required. Unconnectorized SM Splitters/Couplers are available and come with no connectors for easy splicing or connectorization. These fiber optic couplers are excellent for duplex transmission on a single fiber, CATV systems or within fiber optic test sets. Single mode Fused Fiber Optic Couplers are manufactured using Corning SMF-28® Fiber and available in various coupling ratios such as 50/50, 40/60, 30/70, 20/80, 10/90, 05/95 & 1/99 with operating wavelengths 1270, 130, 1350, 1400, 1480, 1550 & 1630. Other coupling ratio & wavelength options are available upon request. Available connector options are ST, FC, SC, LC, FC/APC & SC/APC.

Specification

Low Excess Loss (EL)
Low Optical Insertion Loss (IL)
Low Polarization Dependent Loss
Available in1x2, 2×2 port Configurations
Protective Metal Tube
Bare 250 Fiber or 900 Micron Loose Tube
Without connector or with connector
50/50, 40/60, 30/70, 20/80, 10/90, 5/95, 1/99 or customized split ratio optional
Vareties of coupling ratios available
Excellent environmental and mechanical stability
Good directivity

Technical Data

Notes: All the data are tested without connectors. Insertion loss of one pair of connector is less than 0.3 dB.
Other specifications can be made on customer request.

Order Information

Product Picture

ANC International Co., Limited is an experienced OEM & ODM manufacturer and supplier for fiber optic patch cord and pigtails, fiber optic adapters, attenuators, PLC Splitters, CWDM, DWDM, OADM, fiber switch, fiber isolator, circulator, SFP transceiver, media converter, fiber optic patch panel, termination boxes, fiber optic cleaners and tools in Shenzhen, China.

Established in year 2005, ANC has been growing with clients over pass 10 years. Right now, ANC has plastic and adapter production plant in Hangzhou, has patch cord & attenuator assembly line in Shenzhen. Its products have been selling to big companies in China and reputed clients worldwide.

ANC focus on fiber optic products only. It aims to provide high quality and low lost customized products to meet client request.
