E2000/APC Fiber Optic Attenuator Male to Female Single Mode 2dB 5dB
10dB
Description:
Male-female E2000/APC fiber optic attenuator manufactured by ANC
International Co., Limited is used in the fiber optic links to
reduce the optical power at a certain level. Commonly used fiber
optic attenuators are the female to male type, which is also called
a plug fiber attenuator and the female to female type, which is
also called adapter-type fiber attenuator. SM E2000/APC male to
female attenuator is available from 1 to 20dB attenuation with 1dB
step.
As optical passive devices, fiber optic attenuators are mainly used
in fiber optic to debug optical power performance & optical
instrument calibration correction & fiber signal attenuation to
ensure the optical power in a stable and desired level in the link
without any changes on its original transmission wave.
ANC can produce below fiber optic attenuators
Male to Female fixed plug-type attenuators, such as SC/APC, SC/PC,
MM SC/PC, LC/APC, LC/PC, MU/PC, FC/APC etc fiber optic attenuators;
Female to Female attenuators, such as SC/APC, SC/PC, LC/APC, LC/PC,
FC Square type, E2000/APC, MU fiber optic attenuator
Variable Fiber optic attenuator, such as adapter-type VOA
attenuator, inline VOA attenuator, Collimator VOA, etc
Features:
Available from 1 to 20dB attenuation with 1dB step and 25dB and
30dB, each with low tolerance
Accommodates up to 200mw high power
60dB or more typical return loss
Imported attenuating fiber, always ensure the fixed attenuation in
the link
IEC, TIA/EIA standards compliance
Easy installation
High power endurance
RoHS compliant for all E2000 Male-Female Attenuator material
Application:
CWDM&DWDM
CATV systems
Data center networks
Test equipment and other high power applications
Specification:
| Type | SM | MM |
| Operation Wavelength | 1260nm～1650nm |
| Tested Wavelength | 1310nm/1550nm | 850nm |
| Fiber Type | Single mode 9/125 | Multimode 50/125 or 62.5/125 or OM3 |
| Attenuation | 1-5dB,±0.5dB; | 1-5dB, ±0.5dB |
| 5dB-20dB, ±10% | 5dB-20dB, ±10% |
| Return Loss | UPC≥50dB; APC ≥65dB | PC≥35dB |
| Optical Input Power | ≤200mw |
| Operating Temp. Range | -40℃ ～ 85℃ |

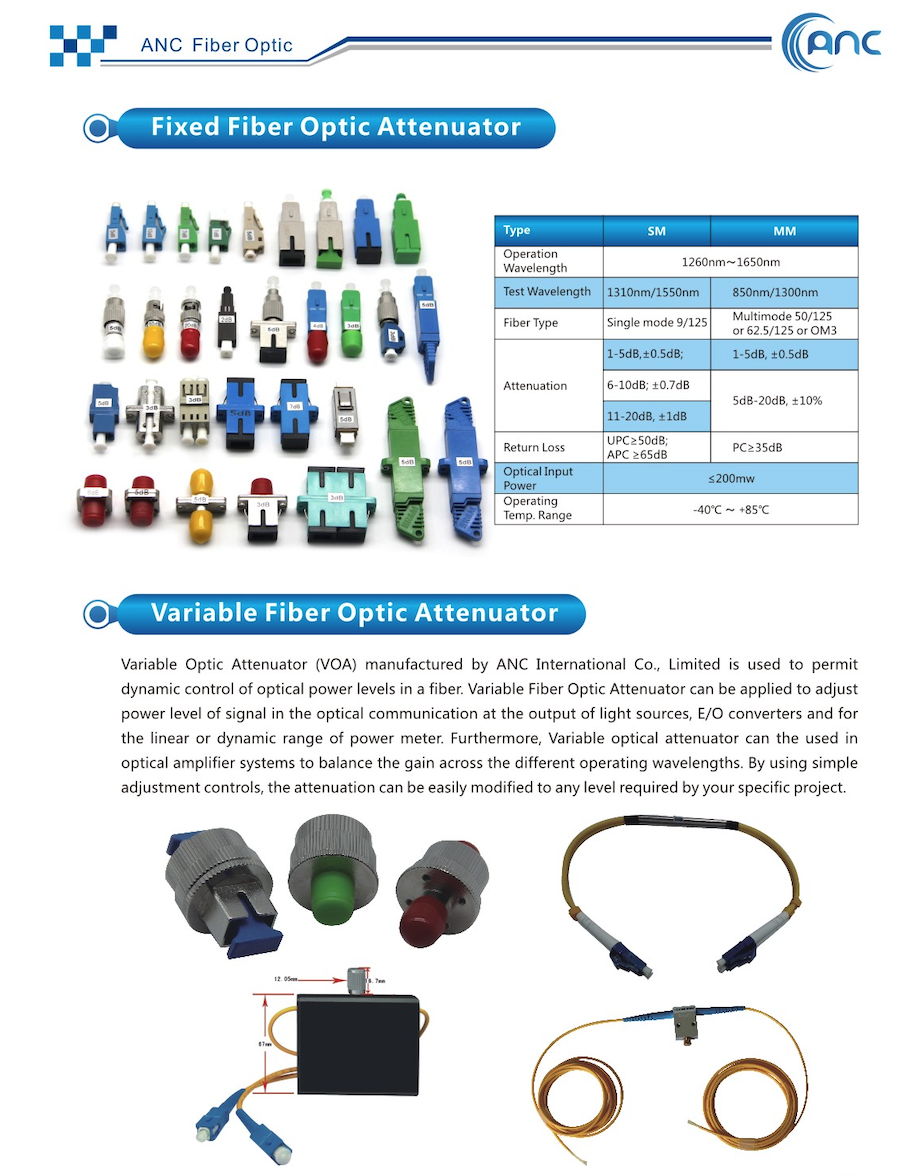

ANC Fiber Optic Attenuators Catalogue
E2000/APC Fiber Optic Attenuator Drawing
