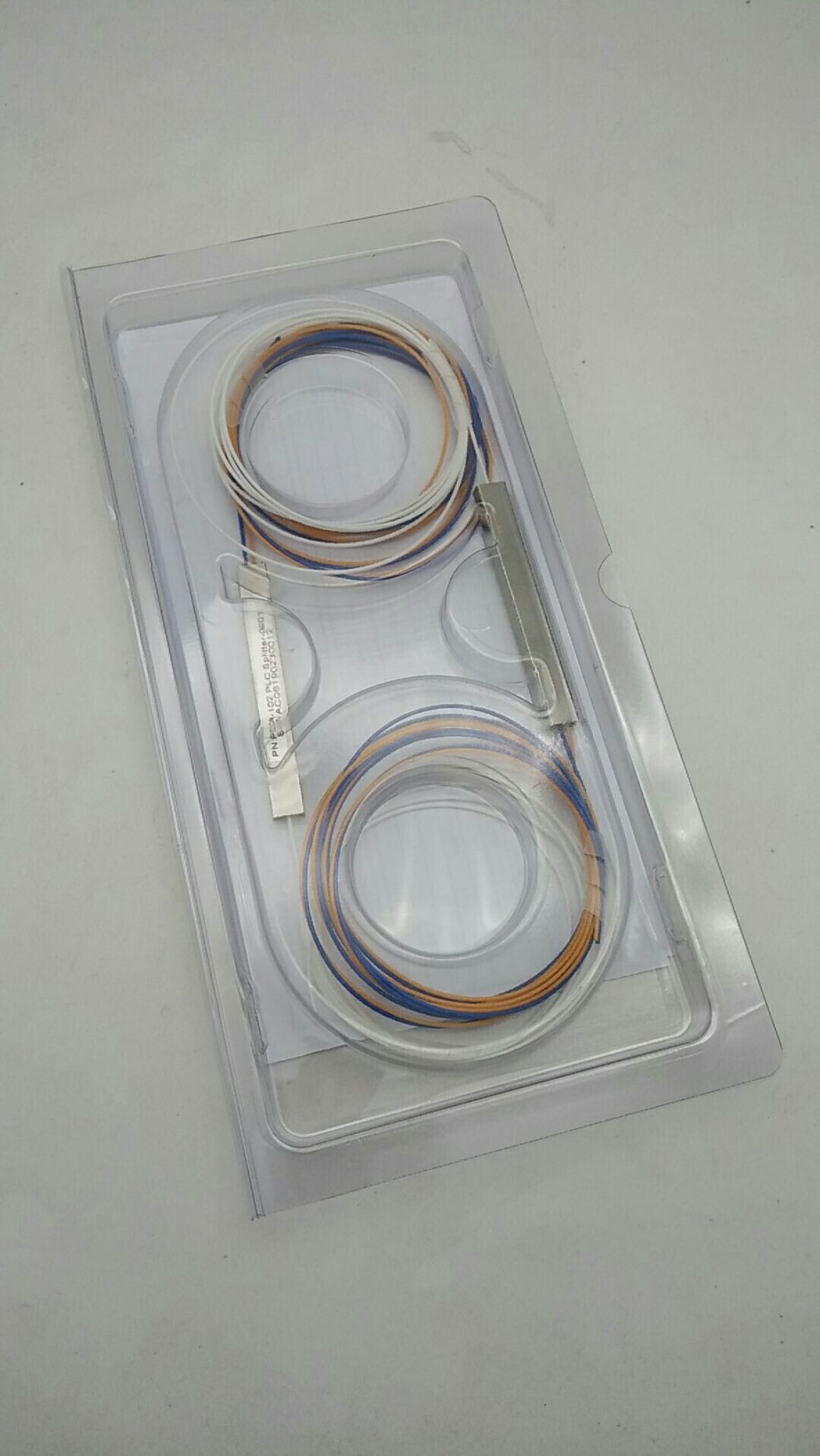

1x2 MIni Tube 60x7x4mm PLC Splitters W/O Connector or With SC LC FC
Connector
Description
1x2 MIni Tube 60x7x4mm Fiber Optic PLC Splitters manufactured by
ANC International Co., Limited are stable quality, low cost and
largely demanded fiber optic products, used mainly inside closure
or ODF to split one wavelength into many ports; 1x2 fiber optic
splitter can be made by Planar lightwave circuit (PLC) or fused
fiber (Coupler) technology.
ANC can produce full range of PLC splitters, such as 1×2, 1×4, 1×8,
1×16, 1×32, 1×64, 2×4, 2×8, 2×16, 2×32, 2×64 with following package
Bare fiber series
Mini loose tube package
ABS Module type
LGX box type
Rack and Wall Mount patch panel for PON application.
Inline fiber optic splice closure type
All products meet GR-1209-CORE-2001 and GR-1221-CORE-1999
requirements.
Features
Good Uniformity and Low Insertion Loss
Low Polarization Dependent Loss
Customized packaging and configuration
Good channel-to-channel uniformity
Wide Operating Wavelength: From 1260nm to 1650nm
Wide Operating Temperature: From -40℃ to 85℃
High Reliability and Stability
Applications
FTTX Systems
PON Networks
CATV Links
Optical Signal Distribution
Compliance
Telcordia GR-1209-CORE-2001
Telcordia GR-1221-CORE-1999
RoHS
Technical Data
1xN Splitter
| Parameters | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 1×128 |
| Operating Wavelength | 1260～1650nm |
| Fiber Type | Default G657A1 or customer specified |
Max. Insertion Loss ( P/S Grade ) (dB) | 3.8 /4.0 | 7.2/7.4 | 10.3/10.5 | 13.5/13.7 | 16.5/16.9 | 20.5/21.0 | 23.8/24.2 |
| Max. Loss Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2.0 | 2.5 |
| Max. Polarization Dependent Loss (dB) | 0.1 | 0.1 | 0.1 | 0.2 | 0.25 | 0.3 | 0.4 |
| Return Loss (dB) | ≦-55 |
| Directivity (dB) | ≦-55 |
Temperature Stability (-40～85°C)(dB) | ≦0.3 | ≦0.5 |
| Operating Temperature | -40～85°C |
| Storage Temperature | -40～85°C |
* S/P : ‘S’ means ‘Standard Grade’, and, ‘P’ means ‘Premium Grade
* IL values are measured @1310&1550nm
* IL, PDL, Uniformity values are for “Without connectors”
1xN Splitter ( Dimension: LxWxH, mm )
| Parameters | 1x2,1x4,1x8 | 1x16 | 1x32 | 1×64 | 1×128 |
| SUS Case with Ribbon Fiber | 40x4x4 | 50x7x4 | 50x7x4 | 60x12x4 | N/A |
| SUS Case with 900um tube | 60x7x4 | 60x12x4 | 80x20x6 | 100x40x6 | N/A |
| Plastic Module Box | 100x80x10 | 120x80x18 | 140x115x18 |
| 19” Rack-mount distribution box or cabinet | 19" 1U | 19" 2U |
