1x16 LGX Box Cassette PLC Splitter with SC Connector for Rack Mount
Description
1x16 LGX Box Cassette Fiber Optic Splitter manufactured by ANC
International Co., Limited is branching devices that is used to
distribute optical signals to multiple locations for processing. In
optical networks, it is often necessary to split an optical signal
into many identical signals, or to combine many signals into a
single signal. PLC Splitter (Planar lightwave circuit splitter) is
a type of optical power management device that is fabricated using
silica optical waveguide technology. They are designed for FTTx
Passive Optical Networks, CWDM, DWDM and optical cable TV System.
PLC Splitter is responsible to distribute the signal from CO to
numbers of premises. ANC provides whole series of 1*N and 2*N
splitter products that are tailored for specific applications. All
prodcts meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements.
ANC can produce full range of PLC splitters, such as 1×2, 1×4, 1×8,
1×16, 1×32, 1×64, 2×4, 2×8, 2×16, 2×32, 2×64 with following package
Bare fiber series
Mini loose tube package
ABS Module type
LGX box type
Rack and Wall Mount patch panel for PON application.
Inline fiber optic splice closure type
All products meet GR-1209-CORE-2001 and GR-1221-CORE-1999
requirements.
Features
LGX Compatible, fit in customized panels
Silk screened port number for easy identification
Eliminate the need for splicing machines and skilled personnel for
deployment
Connector type: SC/APC, SC or customized
Insertion Loss: ≤13.5 dB (without connector or adapter)
Polarization Dependent Loss (PDL): ≤0.02 dB
Return Loss: ≥55 dB
Directivity: ≥55 dB
Low Insertion Loss
Low PDL (Polarization Dependent Loss)
Compact Design
Exceptional Reliability and Stability
Wide Operating Wavelength: From 1260nm to 1650nm
Wide Operating Temperature: From -40°C to 85°C
Conformed to Telcordia GR-1221, GR-1209 standard and RoHS
Applications
Central office/head end
Network monitoring and testing
Passive Optical Networks
CATV, LAN, WAN
Test Instrument
Technical Data
1xN Splitter
| Parameters | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 1×128 |
| Operating Wavelength | 1260～1650nm |
| Fiber Type | Default G657A1 or customer specified |
Max. Insertion Loss ( P/S Grade ) (dB) | 3.8 /4.0 | 7.2/7.4 | 10.3/10.5 | 13.5/13.7 | 16.5/16.9 | 20.5/21.0 | 23.8/24.2 |
| Max. Loss Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2.0 | 2.5 |
| Max. Polarization Dependent Loss (dB) | 0.1 | 0.1 | 0.1 | 0.2 | 0.25 | 0.3 | 0.4 |
| Return Loss (dB) | ≦-55 |
| Directivity (dB) | ≦-55 |
Temperature Stability (-40～85°C)(dB) | ≦0.3 | ≦0.5 |
| Operating Temperature | -40～85°C |
| Storage Temperature | -40～85°C |
* S/P : ‘S’ means ‘Standard Grade’, and, ‘P’ means ‘Premium Grade
* IL values are measured @1310&1550nm
* IL, PDL, Uniformity values are for “Without connectors”

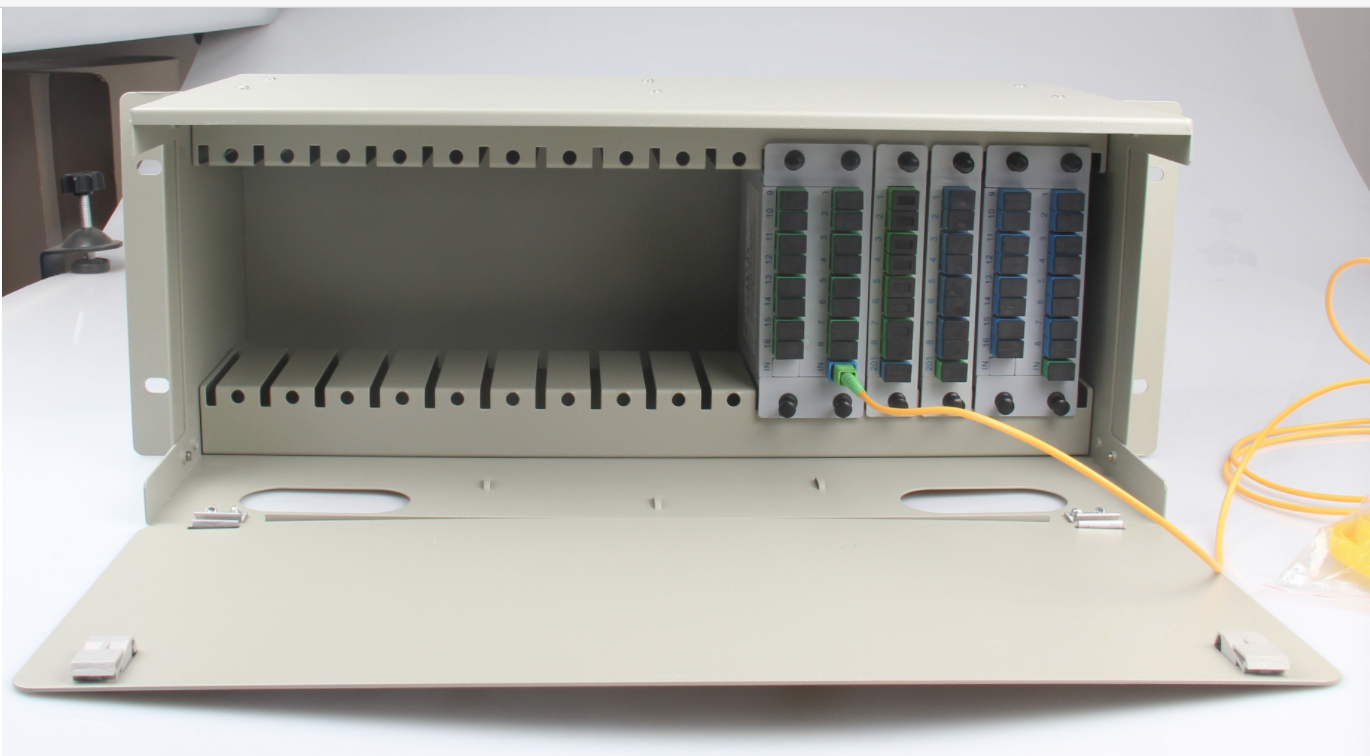

Related Product Pictures
