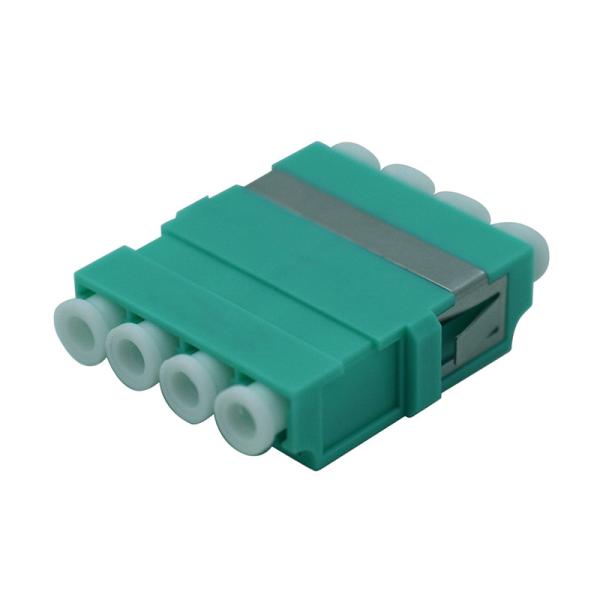

LC Quad Flangeless Fiber Optic Adapter Blue Green Beige Aqua Violet
Color Optional
Description
LC Quad Flangeless Fiber Optic Adapter manufactured by ANC
International Co., Limited is designed for high-density
applications. The Quad LC Flangeless Adapter provides a 4-position
LC simplex adapter solution. It can be used to connect four duplex

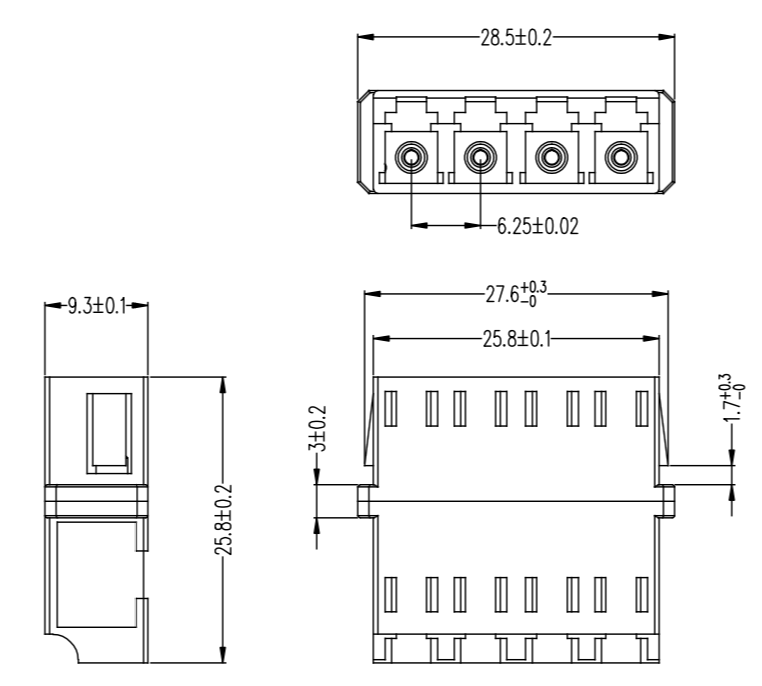

or eight simplex LC fiber optic cables. Mounting dimensions of the
quad LC adapter are identical to the duplex SC adapter and can be
used as direct a drop-in replacement. Different LC Quad Adapter
color codes allow for rapid fiber mode identification and reduce
errors with connector and mode mismatch. We have blue color for
SM/PC, beige color for MM, green color for SM/APC, aqua color for
OM3, violet color for OM4 optional for LC quad adapters. The quad
LC adapter can be flanged or flangeless style.

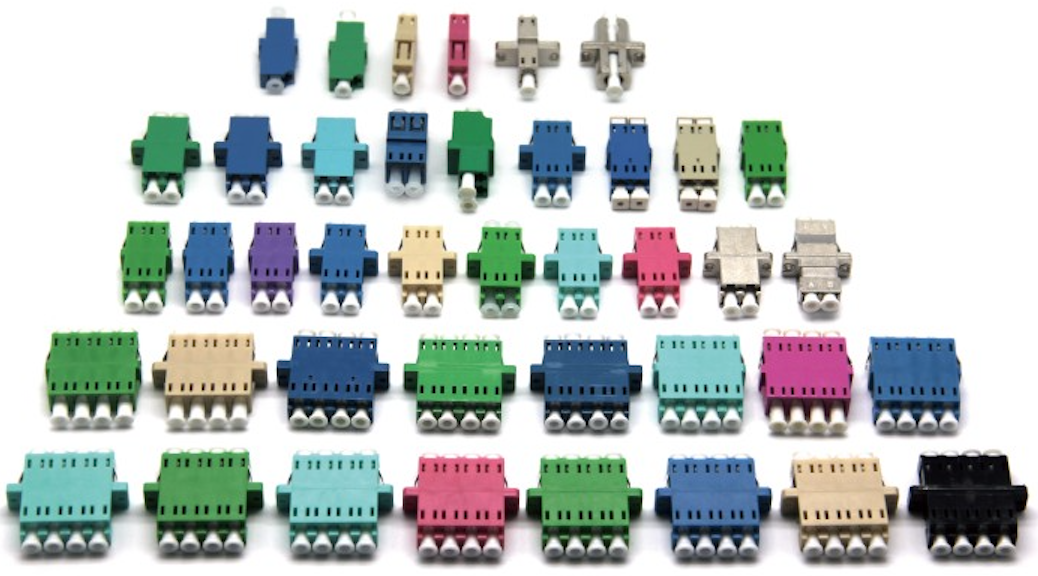

Our LC adapters include LC simplex adapter, LC duplex adapter both
flanged and flangeless, LC quad adapter both flanged and
flangeless, duplex lc shutter adapter, quad lc shutter adapter,
etc. All of our LC adapters have high precision alignment sleeves
for improved reliability and better re-connectability. The LC
adapters come with ceramic sleeves for both single mode and
multimode.
Specification
Channels- Quad (4 port)
Color- Blue for SM/PC, beige for MM, green for SM/APC, aqua for
OM3, violet for OM4
Body material- PC
Alignment sleeve material- Zirconia Ceramic
Complies with IEC 61754-20
Mounting- Duplex SC footprint
Insertion Loss (IL)- <0.1dB (Typical)
Durability- <0.1dB change after 500 matings
With flange or flangeless optional
RoHS Compliance
REACH SvHC compliant
Low insertion loss and good durability
Available in simplex, duplex and quad adapters
Usage
Telecommunications networks
CATV, LAN, MAN and WAN application
Data processing networks
Cable television
Fiber-To-The-Home
Premises distribution
Parts & Material
| Parts | Material | Remarks |
| Sleeve | Zirconia | |
| Housing | PC | Flammability UL94 V-0 |
| Dust cap | PE | Flammability UL94 V-0 |
| Metal Shutter | SUS304 | |
Optical Performance
| | Premium Grade | Standard Grade |
| Insertion Loss | ≤0.1dB | ≤0.2dB |
| Durability | 1000 times | 1000 times |
Environment and Mechanical
| Properties | Test condition | Compliant | Test result |
| Vibration | 10-55Hz, 1.5mm, 60min | IEC61300-2-1 | ≤0.2dB |
| Mating Durability | 1000 Mating, clean every 25 mating. | IEC61300-2-2 | ≤0.2dB |
| Temperature Cycling | 40ºC to +75ºC, 40 cycles | IEC61300-2-22 | ≤0.2dB |
| Temperature humidty cycling | 40ºC, 95%, 96Hr | IEC61300-2-21 | ≤0.2dB |
| Operating Temperature | -40ºC to +85ºC | | ≤0.2dB |
| Storage Temperature | -40ºC to +85ºC | | ≤0.2dB |
