SC Side Shutter Fiber Optic Adapter Flanged And Flangeless Simplex
Description
SC Side Shutter Fiber Optic Adapter manufactured by ANC
International Co., Limited comes with outer shutter to prevent
harmful laser light from entering the eye and to prevent dust and
other contaminants from entering the adapter. The SC adapter is a
standard square structure, which is easy and quick to install.
High-precision ceramic sleeves are selected to achieve
high-precision alignment of the connectors to ensure long-term
stable mechanical and optical performance. The optical fiber
adapter provided by ANC meets the working environment of -40~85 °C,
with an average of more than 500~1000 insertion and removal tests,
with stable performance and reliable quality. This adapter has
different color optional and has flanged or flangeless optional.
ANC has big and automatic adapter production lines in Zhejiang
Province. It can supply full-lines of fiber optic adapters, such as
standard bulk head SC, LC, FC, ST, MU, MPO, E2000, MTRJ, DIN, SMA
etc fiber optic adapters;
female-female hybrid adapters, such as LC-SC, LC-FC, SC-FC, SC-ST,
MU-LC, etc;
female-male hybrid adapters, such as SC Male-LC Female; FC male-SC
female, ST Male-LC female, LC Male-SC Female fiber optic adapters
etc;
Various shutter adapters;
Bare fiber adapters;
Specification
Low Insertion Loss
Compliant with Telcordia GR-326-Core, IEC,TIA
High Precision of Mechanical Dimensions
RoHS Compliance
PC and APC SC shutter adapter available
with and w/o flange available
High quality Zirconia sleeve is used inside
Environment stability
Usage
CATV System
Local Area Networks
Telecommunication Networks
FTTH and FTTx
Testing Equipment
Fiber LAN
Parts & Material
| Parts | Material | Remarks |
| Sleeve | Zirconia | |
| Metal Clip | SUS304 | |
| Housing | PC | Flammability UL94 V-0 |
| Shutter Dust cap | PC | Flammability UL94 V-0 |
| Inner Housing | PBT | Flammability UL94 V-0 |
Optical Performance
| | Premium Grade | Standard Grade |
| Insertion Loss | ≤0.1dB | ≤0.2dB |
| Durability | 1000 times | 1000 times |
Environment and Mechanical
| Properties | Test condition | Compliant | Test result |
| Vibration | 10-55Hz, 1.5mm, 60min | IEC61300-2-1 | ≤0.2dB |
| Mating Durability | 1000 Mating, clean every 25 mating. | IEC61300-2-2 | ≤0.2dB |
| Impact | 1.5m, 8 drops | IEC61300-2-6 | ≤0.2dB |
| Strength of Coupling Mechanism | 40N, 10Min, L=22-28cm | IEC61300-2-12 | ≤0.2dB |
| Temperature Cycling | 40ºC to +75ºC, 40 cycles | IEC61300-2-22 | ≤0.2dB |
| Temperature humidty cycling | 40ºC, 95%, 96Hr | IEC61300-2-21 | ≤0.2dB |
| Operating Temperature | -40ºC to +85ºC | | ≤0.2dB |
| Storage Temperature | -40ºC to +85ºC | | ≤0.2dB |

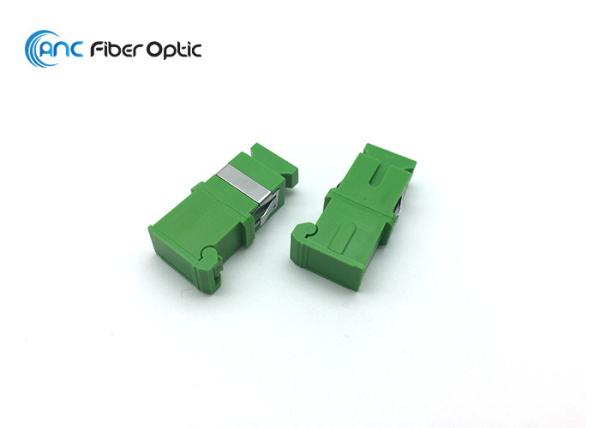

Related Products Pictures

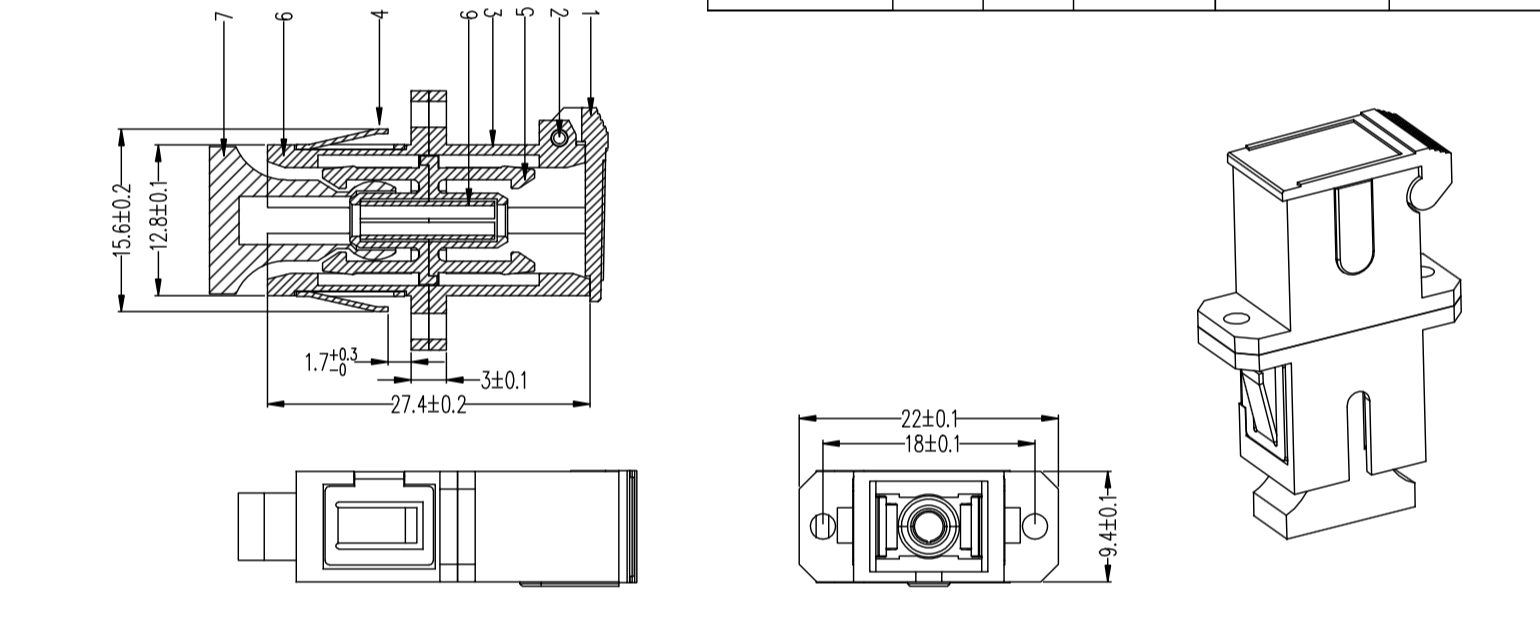

Flanged SC Side Shutter Adapter Drawing
Flangeless SC Side Shutter Adapter Drawing
