FTTx 2 Core Fiber Optic Outlet New ABS Material Desk or Wall Mount
Box
Description
FTTx 2 Core Fiber Optic Outlet FP-006 Manufactured by ANC
International Co., Limited is used to terminate fiber cable
straight to the work station in FTTD Fibre to the Desk
applications. FP-006 Fiber Wall Outlet (also called faceplate) is
suitable for use with SC simplex or LC duplex adapters.
This Wall Outlet Termination Box is used for splicing and
termination between indoor fiber optic cable and pigtails with SC
or LC connectors. The termination box is used for wall mounted or
desk mount applications. Made of new ABS material, it is easy to
install in home or office. ANC provides various FTTH fiber optic
wall plate outlets which employ a compact plug-in design, combine a
modern design concept to create a fiber demarcation point inside
the home or office. LC, SC, FC, ST adapters (or hybrid with RJ45
port) are also available according customer's specific
requirements.
Features:
Material: ABS plastic
Supplied with screws and wall plugs for standard wall fixing
Supplied with 2 splice protectors, cable protecting tube, cable
ties and port blanks
The wall outlet termination box is designed with a large arc shape
to ensure that the fiber optic cable placed in it will not be
damaged when subjected to external forces, affecting the quality of
communication.
Support MM or SM fiber connection
The wall outlet termination box is easy to operate and has low
construction intensity.
2 ports for SC simplex, LC duplex adapters
Capable to handle fiber fusion, fiber pigtails;
Suitable for FC, LC, SC, ST… adapters
Applications
The telecommunication network, metropolitan area network, optical
fiber communication system;
Optical testing equipment/instrument;
CATV optical fiber, optical fiber sensor;
Optical fiber broadband access network, FTTH optical fiber;
Optical fiber distribution frame, frame type and wall type optical
fiber distribution unit;
Specifications
| Name | FP-006 Optical Outlet |
| Material | ABS |
| Number of Adapter port | 2 port |
| Adapter Type | SC Simplex or LC Duplex |
| Dimension | 100*80*22mm |
| Weight | 75g |
| Color | White |
| Fiber Mode | SM & MM |
| RoHS Compliant | Yes |
| Working Temperature | -40℃~+65℃ |

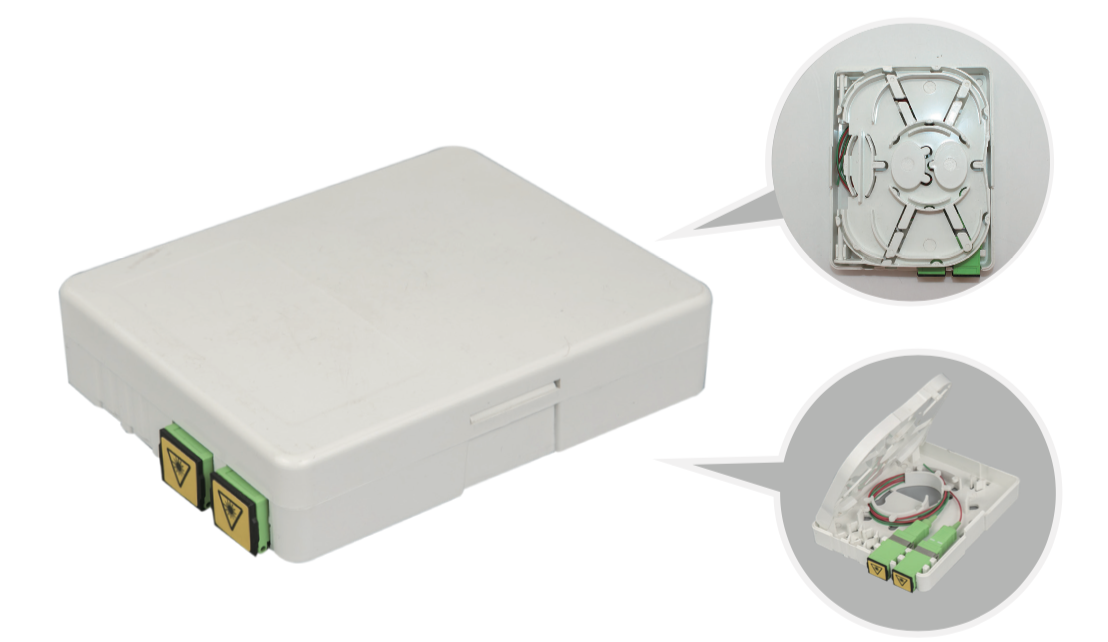

FP-006 2 Core Outlet Related Pictures
