10km 20km XFP Fiber Optic Transceiver Module 10G XFP LR For Cisco /
Alcatel
Description
XFP-10GB-LR manufactured by ANC International Co., Limited is
compliant with the 10G Small Form-Factor Pluggable (XFP)
Multi-Source Agreement (MSA), supporting data-rate of
10.3125Gbps(10GBASE-LR) or 9.953Gbps 10GBASE-LW), SONET/SDH,
Ethernet Fiber Channel and IEEE 802.3 based
applications.Transceivers are offered in SR (850 nm wavelength) and
LR (1310 nm wavelength) configurations and are well suited for
single channel (per I/O port), storage network, and SONET
transmission applications. Each transceiver has a duplex LC optical
interface for the optical cable. Both SR and LR configurations
feature a hot-pluggable 30-position board side connector interface.
Operating case temperature range is 0°C to 70°C. All transceiver
products are fully RoHS 6 compliant.
The transceiver module comprises a transmitter with 1310nm uncooled
EML laser and a receiver with a PIN photodiode. Transmitter and
receiver are separate within a wide temperature range of 0℃ to +70℃
and offers optimum heat dissipation and excellent electromagnetic
shielding thus enabling high port densities for 10 GbE systems.
Features
Supports 9.95Gb/s to 11.1Gb/s bit rates
Hot-pluggable XFP footprint
1310nm Uncooled EML laser and PIN photodiode
XFP MSA package with duplex LC connector
No reference clock required
+5V, +3.3V power supply
Power dissipation <2.5W
Compatible with RoHS
Built-in digital diagnostic functions
Temperature range 0°C to 70°C
Applications
SDH STM I-64.1 at 9.953Gbps
10GBASE-LR/LW 10G Ethernet
1200-SM-LL-L 10G Fibre Channel
10GE over G.709 at 11.09Gbps
OC192 over FEC at 10.709Gbps
Other optical links, up to 11.1Gbps
Optical Characteristics
| Parameter | Symbol | Min | Typ | Max | Unit | Ref. |
| Transmitter |
| Optical output Power | P | -6.5 | | +0.5 | dBm | |
| Optical Wavelength | λ | 1260 | | 1355 | nm | |
| Side Mode Suppression Ratio | SMSR | 30 | | | dB | |
| Optical Extinction Ratio | ER | 6 | | | dB | 1 |
| Average Launch power of OFF transmitter | POFF | -30 | | | dBm | |
| Tx Jitter | Tx | Compliant with each standard requirements | |
| Receiver |
| Receiver Sensitivity | RSENS | | -16 | -14.5 | dBm | 2 |
| Receiver Sensitivity in OMA | RSENS | | | -12.5 | dBm | 2 |
| Maximum Input Power | PMAX | +0.5 | | | dBm | |
| Optical Center Wavelength | λC | 1260 | | 1600 | nm | |
| LOS De-Assert | LOSD | | | -15 | dBm | |
| LOS Assert | LOSA | -25 | | | dBm | |
| LOS Hysteresis | | 1 | | 4 | dB | |
Notes:
1, PRBS 231-1 test pattern @10.3125Gbps.
2, PRBS 231-1 test pattern @10.3125Gbps, BER≤10-12.

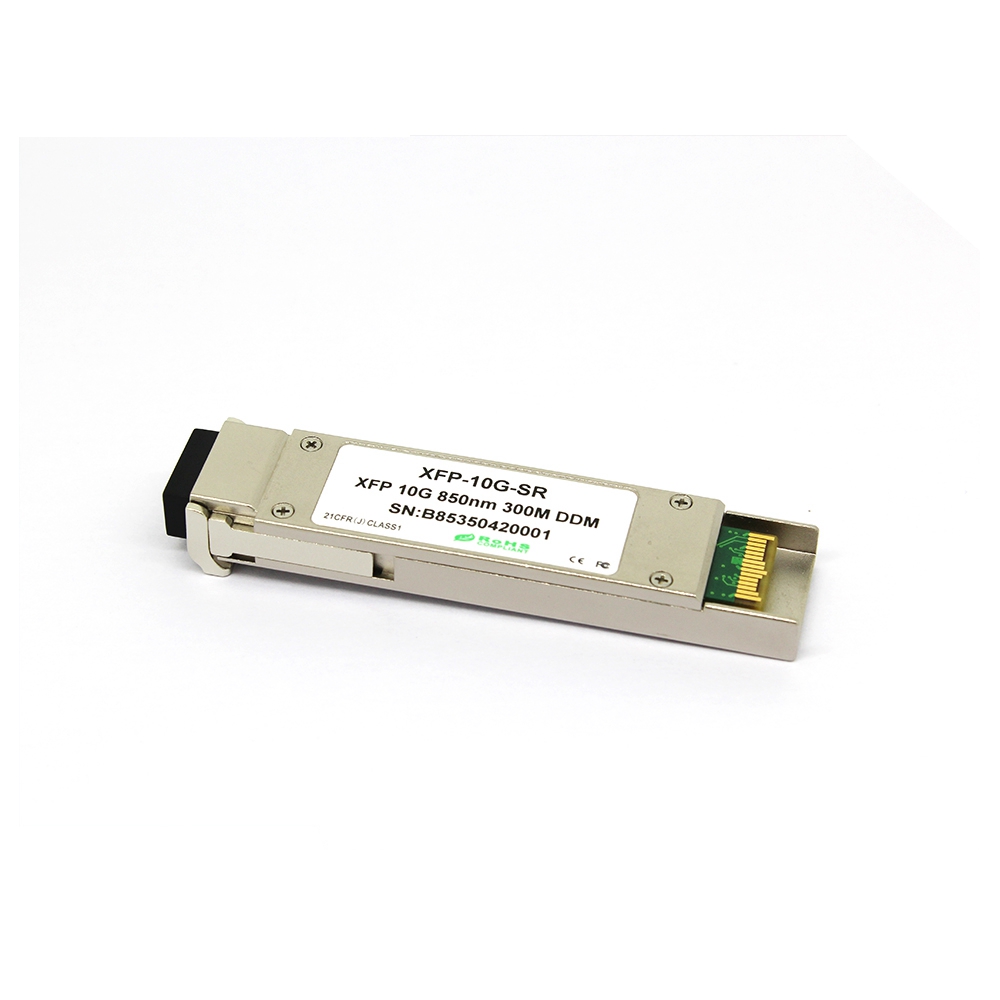

Similar Product Pictures
