    MTP MPO Fiber Optic Cleaning Products One Click Cleaning Pen

    Ask Lasest Price
    Brand Name : ANC
    Model Number : MPO Cleaning Pen
    Certification : RoHS
    Price : please ask
    Payment Terms : T/T
    Supply Ability : 1000pcs per day
    Delivery Time : 3-5 working days
    • Product Details
    • Company Profile

    MTP MPO Fiber Optic Cleaning Products One Click Cleaning Pen

    MTP MPO Fiber Optic Cleaning Products One Click Cleaning Pen


    One-Click MTP MPO Fiber Optic Cleaner Cleaning Pen 500+ Times


    Description of MPO Cleaning Pen


    One-click MTP MPO Cleaning Pen manufactured by ANC International Co., Limited is a dry cleaner used to clean 12-fiber MPO MTP Connector at one time. By a simple one click, the MPO cleaning pen can clean multi parrel fiber at the same. Each cleaner can clean more than 500 times. The MPO cleaner can clean both female (no guide pin) and male (with steel guide pins), both PC and APC endface.

    Nowadays, high-density fiber optic networks are becoming the main stream around the world and multi-fiber MPO and MTP connectors are becoming the dominant type of connectors used in high-density networks. Consequently, connector uncleanliness has become the most common cause of network failure. Even if an MPO/MTP connector was cleaned before making the connection, improper cleaning might give poor results and not as expected. Therefore, MPO/MTP connector inspection and cleaning using the right methods and tools is very important.

    Cleaning MPO/MTP connectors is a bit trickier than most users may believe. MPO and MTP connectors have multiple fibers with a wide contact surface, and any bit of dirt on one fiber can cause signal degradation in the rest of the fibers in the connector. In addition, due to the presence of alignment pins in the male connectors, cleaning the end sides of the MPO/MTP connector surface is often overlooked by users (Figure 1). Thus, when cleaning an MPO/MTP connector, all fibers in the connector must be cleaned thoroughly to ensure proper operation; and having repeatedly cleaned a connector does not ensure reaching the expected results unless the right cleaning method is actually used.


    Features of MPO Cleaning Pen


    Clean all the dust, oil, debris effectively
    Easy clean for both female and male connectors
    Clean both UPC and APC end face
    Smart and small to access the high density panel
    Easy one push operation
    More than 500 times clean per unit.
    Compatible with FOCIS-5 (MPO) connector
    Applicable to MPO/MTP cable’s connector and QSFP/QSFP28 MPO Transceivers

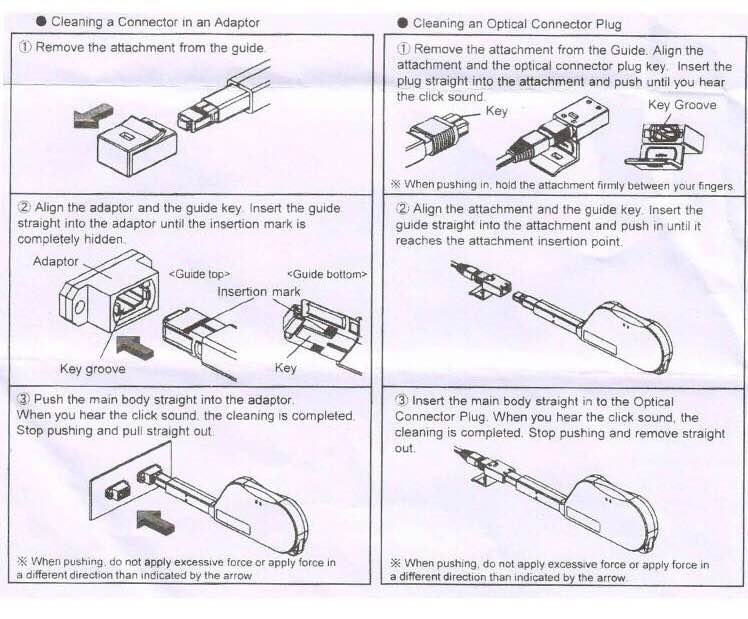

    Usage of One-click MPO Cleaner


    Clean multimode and single-mode (angled) MPO connectors
    Clean MPO connectors in panel
    Clean exposed MPO ferrules
    Clean QSFP/QSFP28 MPO Transceiver


    Specifications of One-Click MPO Cleaner


    TypeOne-Click MPO Cleaning Pen
    Cleaned ConnectorMT ferrule, female and male MPO MTP connector
    Cleaning Times500+
    Dimension223mm x 57mm x 15mm
    Weight44g

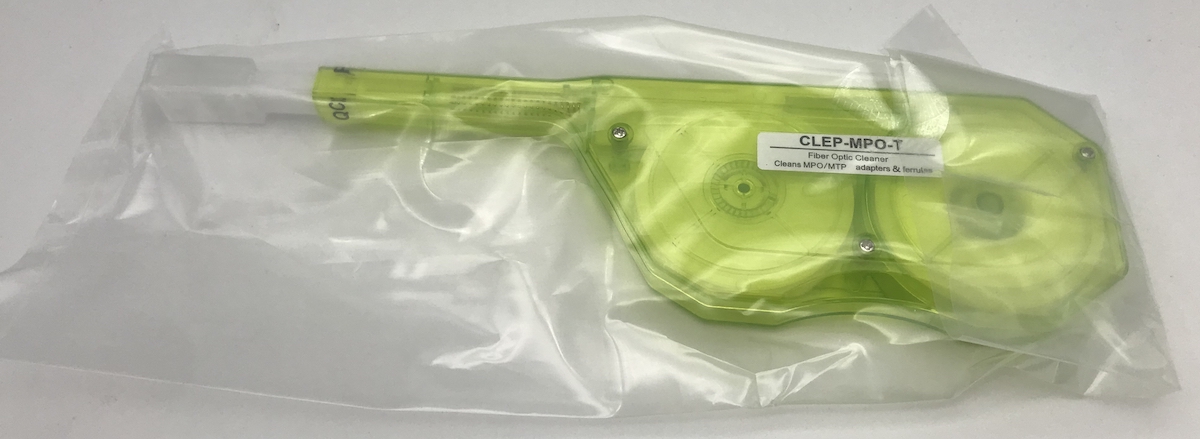

    Pictures of MPO Cleaning Pen


    Our Service


    Professional manufacturer, 100% tested.
    Full compliance with ISO 9001:2008 quality management system
    Experienced professional team
    Warmly services

    Within 24 hours on-time reply
