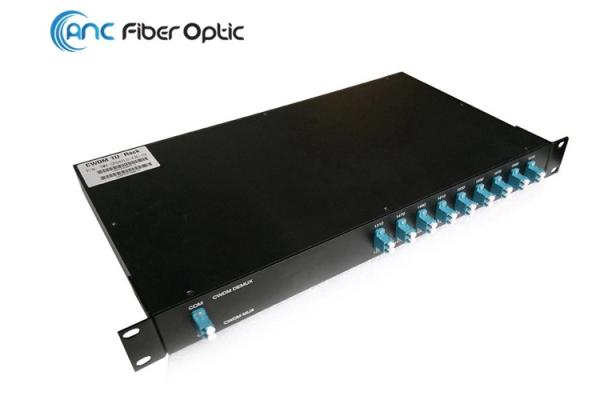

4ch 8ch 16ch 18ch WDM MUX DEMUX In 1U 19" Rack Monitor Port / Upgrade Port

Description

4ch 8ch 16ch 18ch CWDM MUX DEMUX in 1U 19" Rack with LC/PC SC/APC Connector manufactured by ANC International Co., Limited provides the flexibility to increase capacity of existing fiber infrastructure by enabling multiple channels/wavelengths over the same fiber cabling. Each channel carries data independently from each other, allowing network designers to transport different data rates. It's protocol and rate transparent supporting such applications as 1G/10G Ethernet, SDH/SONET and 8/4/2/1G Fiber Channel across the same fiber link.

CWDM is a low-cost method to maximize existing fiber by decreasing the channel spacing between wavelengths. CWDM has a lower cost per channel than dense WDM (DWDM) and no configuration is necessary. CWDM optical devices can increase bandwidth on existing fiber infrastructure and alleviate fiber exhaustion. CWDM optical devices are available as 4-channel, 8-channel or 16-channel mux/demux modules or as an add/drop module. Due to the low insertion loss is needed in WDM networks, we can also add “Skip Component” in a CWDM Mux/Demux module to reduce the IL as an option. Standard CWDM Mux/Demux package type include: ABS box package, LGX pakcage and 19” 1U rackmount.

Specification

ITU-T G.694.2 λ: 1271 nm - 1611 nm

Max. 18 channels can be used due to the water peaks

Channel spacing: 20 nm

Up to 18 CWDM wavelength over one pair of fiber

CWDM channel spacing 20 nm, 1270 nm to 1610 nm

Distances up to 120 km

Cost-effective WDM solution

Scalable by hybrid CWDM/DWDM - perfect solution for your investment

Features

Long Term Reliability

Telcordia-GR-1221 Qualified

Usage

Line Monitoring
WDM Network
Telecommunication
Cellular Application
Fiber Optical amplifier
Access Network

Technical Data

*All parameters are specified over operating temperature range.

**Insertion Loss per filter includes Ripple and PDL, without connectors.

Related Pictures:

ANC International Co., Limited is an experienced OEM & ODM manufacturer and supplier for fiber optic patch cord and pigtails, fiber optic adapters, attenuators, PLC Splitters, CWDM, DWDM, OADM, fiber switch, fiber isolator, circulator, SFP transceiver, media converter, fiber optic patch panel, termination boxes, fiber optic cleaners and tools in Shenzhen, China.

Established in year 2005, ANC has been growing with clients over pass 10 years. Right now, ANC has plastic and adapter production plant in Hangzhou, has patch cord & attenuator assembly line in Shenzhen. Its products have been selling to big companies in China and reputed clients worldwide.

ANC focus on fiber optic products only. It aims to provide high quality and low lost customized products to meet client request.
