0.5~100m 10Gb/s SFP+ to SFP+ Active Optical Cable for Cisco SFP-10G-AOC

Description

The SFP-10G-AOCxM family manufactured by ANC International Co., Limited is SFP+ active optical cables (AOC) for 10Gb Ethernet (10GbE) applications. The 10G SFP+ AOC cables provide an ideal alternative solution to SFP+ direct attach copper cables (DAC) and SFP+ transceivers of short reach while providing improved signal integrity, exceptional cost, and performance value. They are designed expressed for high speed, high density and low power consumption for today’s data center networking applications.

The SFP+ AOC cables are composed of SFP+ optical transceivers in both ends and OM2 or OM3 multimode fiber cable in different cable length from 1 to 100 meters. This integrated optical transceiver removes the complicated optical fiber interface and brings a friendly and intuitive electrical-to-electrical interface to users.

Features

Truly broadband operates from 1 to 10.5 Gb/s
850nm high-speed VCSEL and PIN receiver
Support 10 Gb/s transmission distance up to 100 meters with OM2 MM fiber
Operating case temperature 0°C to +70°C
Single 3.3V power supply
Mechanical specifications compliant with SFF-8432
Electrical specifications compliant with SFF-8431
Support digital diagnostics monitoring for module temperature, Vcc, Rx input power, Tx_Disable and Rx_LOS
Typical power consumption 200mW
I2C communication bus
Hot pluggable
RoHS-6 compliance

Applications

1G/10G Ethernet
Switch to Switch Interface
Router/Server Interface
High performance computing interconnect

Specifications

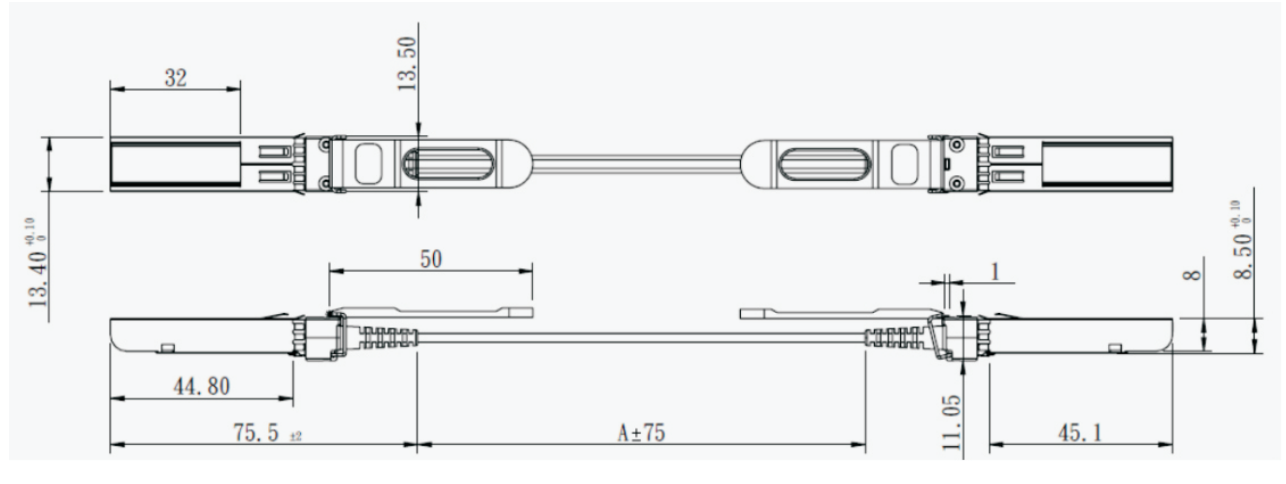

Mechanical Dimension

Electrical Characteristics (TOP=25°C, Vcc=3.3Volts)

Platform Support

Cisco Nexus 7000 N77-F348XP-23
Cisco UCSB-5108-AC2
Cisco WS-C3850-12XS
Cisco Nexus 9000 N9K-C92160YC-X
Cisco WS-C2960XR-48FPD-I
Cisco WS-C3850-24T
Cisco WS-C3650-48TD
Cisco WS-C3850-16XS
Cisco WS-C3850-48XS
Cisco WS-C2960X-48FPD-L
Cisco Nexus 9000 N9K-C9396PX
Cisco WS-C3750X-48PF
Cisco Nexus 9000 N9K-C9372PX
Cisco WS-C2960S-24PD-L
Cisco WS-C3560X-24T
Cisco C6800-SUP6T-XL
Cisco Nexus 7000 N77-F348XP-25
Cisco WS-C3750X-12S
Cisco WS-C3750X-24S
Cisco 6800 C6880-X
Cisco WS-C3560CX-12PD-S
Cisco WS-C3750X-48T
Cisco Nexus 3000 N3K-C3048
Cisco C6800-16P10G(-XL)
Cisco 4500 WS-X4712-SFP+E
Cisco WS-C3850-24P
Cisco WS-C4500X-F-32SFP+
Cisco Nexus 7000 N7K-F132XP-15
Cisco WS-C3850-48F
Cisco 4500 WS-X45-SUP8L-E
Cisco WS-C3560X-48T
Cisco WS-C3650-48FQ
Cisco WS-C3850-48T
Cisco Nexus 3000 N3K-C3064PQ
Cisco WS-C2960XR-24TD-I
Cisco C6800-SUP6T
Cisco WS-C3650-48FD
Cisco WS-C4500X-16SFP+
Cisco WS-C3750X-24T
Cisco WS-C2960S-48LPD-L
Cisco WS-C3850-48XS-F-E
Cisco WS-C2960XR-48LPD-I
Cisco Nexus 9000 N9K-X9464PX
Cisco C6800-32P10G(-XL)
Cisco WS-C4500X-32SFP+
Cisco WS-C3560CX-8XPD-S
Cisco 4500 WS-X45-SUP7-E
Cisco WS-C3650-48PQ
Cisco Nexus 7000 N7K-M224XP-23L
Cisco C6800-SUP6T-XL
Cisco WS-C2960X-24TD-L
Cisco WS-C4500X-24X-ES
Cisco 4500 WS-X4606-X2-E
Cisco WS-C3750X-48P
Cisco WS-C2960X-24PD-L
Cisco Nexus 7000 N7K-F248XP-25
Cisco Nexus 3000 N3k-C3132Q-X
Cisco WS-C3650-24TD
Cisco WS-C3650-48PD
Cisco WS-C3850-32XS
Cisco C6800-SUP6T
Cisco Nexus 9000 N9K-C9372PX-E
Cisco Nexus 9000 N9K-X9564PX
Cisco WS-C2960S-24TD-L
Cisco WS-C2960XR-24PD-I
Cisco 4500 WS-X45-SUP7L-E
Cisco C6800-32P10G(-XL)
Cisco WS-C3650-24PD
Cisco WS-C3750X-24P
Cisco WS-C3850-12S
Cisco WS-C3850-48XS-F-S
Cisco WS-C3850-48P
Cisco WS-C2960X-48TD-L
Cisco Nexus 2000 N2K-2348UPQ
Cisco WS-C4500X-F-16SFP+
Cisco 4500 WS-X45-SUP6-E
Cisco 4500 WS-X45-SUP8-E
Cisco Nexus 9000 N9K-C9396PX
Cisco Nexus 3000 N3K-C3064PQ-10GE
Cisco WS-C3850-24S
Cisco WS-C3850-48XS-S
Cisco Nexus 3000 N3K-C3172PQ
Cisco UCS-IOM-2208XP
Cisco Nexus 7000 N7K-M132XP-12L
Cisco WS-C3850-24XS
Cisco Nexus 3000 N3K-C3132Q
Cisco WS-C3560X-24P
Cisco 4500 WS-X45-SUP6L-E
Cisco WS-C3560X-48P
Cisco Nexus 7000 N77-F248XP-23E
Cisco C6800-16P10G(-XL)
Cisco WS-C4500X-40X-ES
Cisco WS-C2960S-48FPD-L
Cisco UCS-IOM-2204XP
Cisco Nexus 9000 N9K-C9372PX
Cisco WS-C2960X-48LPD-L
Cisco WS-C3850-48XS-E
Cisco C4KX-NM-8SFP+
Cisco Nexus 3000 N3K-C3064X
Cisco Nexus 3000 N3K-C31128PQ-10GE
Cisco WS-C3560X-48PF
Cisco Nexus 9000 N9K-C9372PX-E
Cisco WS-C3650-48TQ
Cisco Nexus 7000 N7K-F248XP-25E
Cisco WS-C2960XR-48TD-I
Cisco C6800-8P10G(-XL)
Cisco WS-C2960S-48TD-L
Cisco C6800-8P10G(-XL)
