100G QSFP28 DAC Direct Attached Cable Passive up to 7meters
100GBASE-CR4 cables
Description
100G QSFP28 DAC Direct Attach Copper cable manufactured by ANC
International Co., Limited is compliant with 100G Ethernet
(100GBASE-CR4) specifications. So sometimes it is called
100GBASE-CR4 QSFP Cable. It contains four high-speed copper pairs,
each operating at data rates of up to 25GbE. The QSFP28 DAC cable
assembly is suitable for power-efficient connectivity for short
distance interconnects, such as data center, networking, and
high-performance computing application.
The 100G QSFP28 cables are compliant with InfiniBand Architecture,
SFF-8636 specifications and provide connectivity between devices
using QSFP28 ports. The QSFP28 cable is an assembly of 4
full-duplex lanes, where each lane is capable of transmitting data
at rates up to 25Gb/s per direction, providing an aggregated rate
of 100Gb/s. 100G QSFP28 Direct Attach Cables are available with 30
AWG, 28 AWG, 26 AWG and 24 AWG cables . Standard lengths are 0.5m,
1m, 2m, 3m, 5m, and 7m.
QSFP28 DAC cable is available in two main types, QSFP28 direct
attach cable and QSFP28 breakout copper cable. 100G QSFP28 DACs
delivers aggregate data bandwidth up to 100 Gbps (4x 25 Gbps) with
passive copper assemblies. They provide an ideal solution that
allows 100G switches and routers to be used within the data center,
with low power consumption and a maximum port count. ANC
manufactures and supplies a wide line of 100G copper cables with
high quality and very competitive pricing. We are ready to be one
of a reliable vendor for data center solution.
Features
Available in length of 0.5m to 7m
24AWG, 26AWG, 28AWG, 30AWG is optional upon request
Connector A: 1x QSFP28 100Gbps Rated Connector
Connector B: 1x QSFP28 100Gbps Rated Connector
Compliant with SFF-8636
Compliant with IEEE802.3bj
Support 0.5~7m distance
All-metal housing for superior EMI performance
Low crosstalk
Low power consumption
Operating temperature range: 0 to 70°C
RoHS Compliant and Lead-Free
Applications
Data/Servers/ Routers
Networked storage systems
External storage systems
Data Center networking
Communications Switches
InfiniBand SDR, DDR, QDR, FDR,EDR
Specifications
| Data Rate | Connector | Connector | Signal | Cable | Cable Specification | Length |
| 100Gbps | QSFP28 | QSFP28 | Passive | Copper | AWG30 | 1M~2M |
| 100Gbps | QSFP28 | QSFP28 | Passive | Copper | AWG26 | 3M~5M |
| 100Gbps | QSFP28 | QSFP28 | Passive | Copper | AWG24 | 5M |
| 100Gbps | QSFP28 | 4*SFP28 | Passive | Copper | AWG30 | 1M~3M |
| 100Gbps | QSFP28 | 4*SFP28 | Passive | Copper | AWG26 | 3M~5M |
Mechinical Drawing
Mechanical Dimension

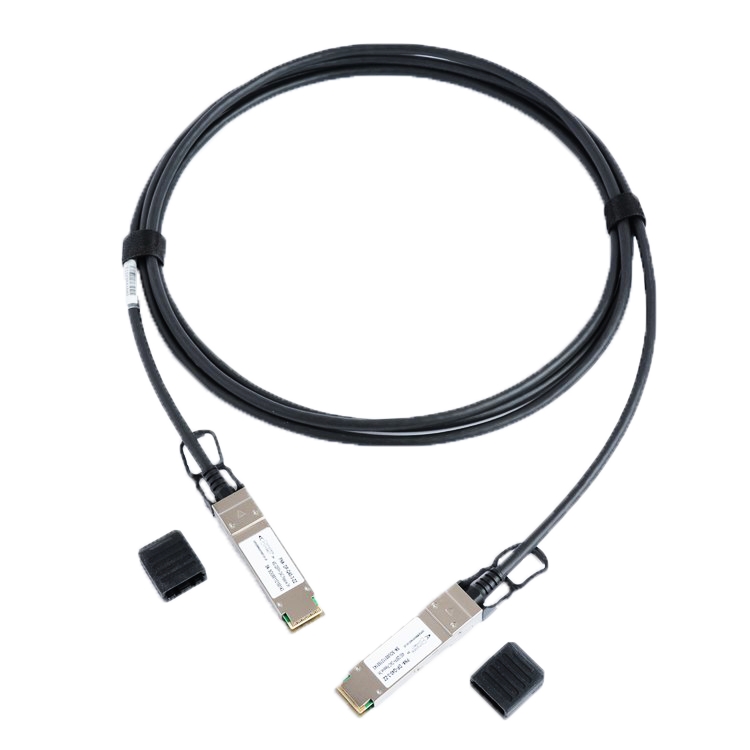

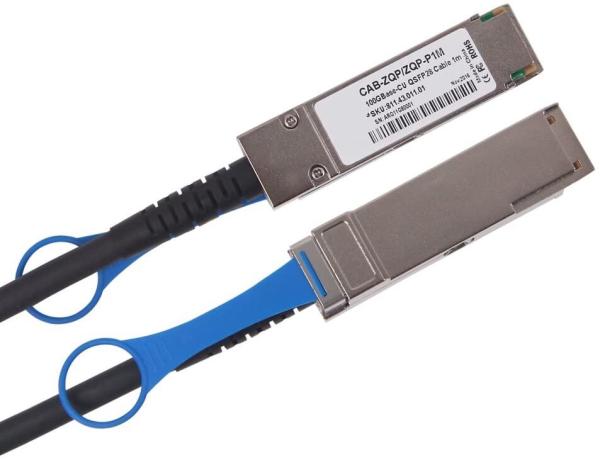

Product Picture
Platform Support
100G QSFP28 DAC cable cisco compatible is supported on a wide range
of Cisco equipment.Cisco Nexus N9K-C92304QC (NX-OS Mode)
Cisco NCS-5502-SE
Cisco Nexus N9K-C93180YC-EX (NX-OS Mode)
Cisco Nexus N9K-X9732C-EX(ACI Mode)
Cisco Nexus N9K-X9432C-S(NX-OS Mode)
Cisco Nexus N9K-C93180YC-EX(ACI Mode)
Cisco Nexus N3K-C31108TC-V
Cisco Nexus N9K-X9732C-EX(NX-OS Mode)
Cisco NCS-5502
Cisco Nexus N9K-C93108TC-X (ACI Mode)
Cisco NCS-5501-SE
Cisco NCS-5501
Cisco Nexus N9K-X97160YC-EX
Cisco Nexus N3K-C31108PC-V
Cisco Nexus N9K-C93180YC-EX(uplinks) (NX-OS Mode)
Cisco Nexus N9K-C9236C (NX-OS Mode)
Cisco Nexus N9K-C93108TC-X (NX-OS Mode)
