40G QSFP+ to QSFP+ DAC Cable Passive Direct Attach Copper Cable upto 10M

Description
40G QSFP+ DAC Direct Attach Copper cable manufactured by ANC International Co., Limited is suitable for very short distances and offers a highly cost-effective way to establish a 40 Gigabit link connectivity between devices using QSFP ports. The QSFP+ DAC cable is designed for 40Gb/s high-speed interconnecting networking applications such as high-performance computing (HPC), enterprise networking including top-of-rack switching and network storage markets.
The QSFP-40G-DAC cable fully complies with QSFP+ Multi-Source Agreement (MSA) standards SFF-8436 and IEEE 802.3ba 40GBASE-CR4. It is developed specifically as a cost-effective and lower-power alternative to QSFP+ optical transceivers and QSFP+ active optical fiber (QSFP+ AOC). Cable has been tested and found compatible with most major brand networking vendors (including Cisco, Juniper, H3C, Alcatel and Edge-Core TOR switches).

40G Passive Twinax Cable is CE/RoHS certified and it is Compliant with product safety standards. 40G-PDAC-QSFP is fully compliant to QSFP+ Multi Source Agreement SFF-8436. Consequently, it means that module is compatible with 80% of networking equipment, where is not implemented a special algorithm for protection against third party modules. However – we can provide 40G Passive Twinax Cable with custom-encoded firmware in order to make it work almost in any equipment and we can support encoding of each end to support different vendor equipment, allowing using 40G Passive Twinax Cable as cross-platform interconnection medium. We will be glad to hear Your requirements and our sales team will check all relevant details with You during ordering procedure. Our focus is providing top quality service, we are performing serious quality checks before delivery of our products.

Features

Available in length of 0.5m to 10m
24AWG, 28AWG, 30AWG is optional upon request
4 independent full-duplex channels upto 10.3Gbps data rate per wavelength
Lower cost than QSFP+ transceiver and active optical cable (AOC)
Maximum aggregate data rate: 40 Gb/s (4 x 10Gb/s)
Hot-pluggable QSFP+ 38-PIN footprint
Compliant with IEEE 802.3ba 40GBASE-CR4 standard
Compliant with QSFP+ MSA SFF-8436
Compliant with Infiniband QDR/DDR data rates
Maximum 1.5W operation power
Operating temperature range: 0 to 70°C
RoHS Compliant and Lead-Free

Applications
InfiniBand QDR (4 x 10G), DDR (4 x 5G) and SDR (4 x 2.5G) interconnects
10G/40G Ethernet (10G/40GbE)
2G/4G/ 8G/ 10G Fibre Channel
Networked storage systems
External storage systems
Data Center networking
Hubs, Switches, Routers, Servers

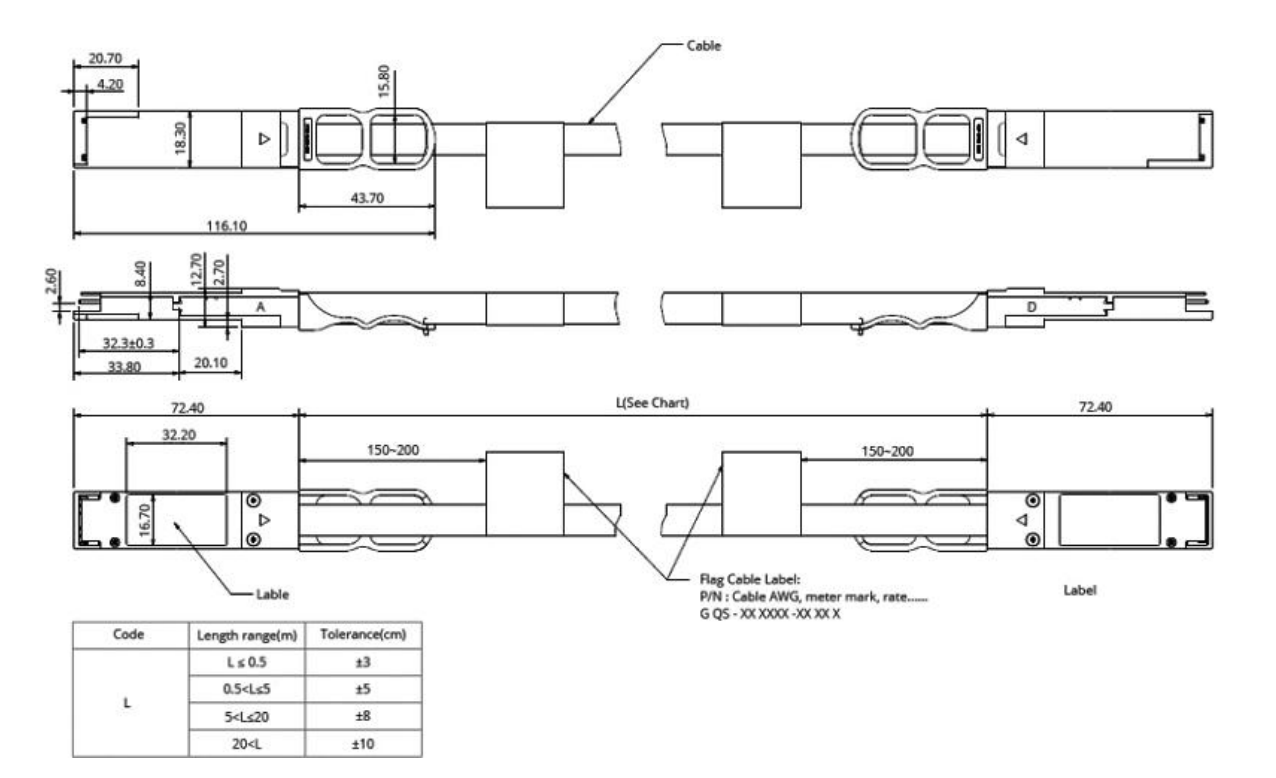

Mechanical Dimension

Product Picture

Platform Support

Cisco Nexus 3000 Series
Cisco Nexus 5000 Series
Cisco Nexus 6000 Series
Cisco Nexus 7000 Series
Cisco Nexus 9000 Series (Modular 9500)
Cisco Nexus 9000 Series (Fixed 9300)
Cisco Nexus 9000 Series (Modular 9500)ACI Mode
Cisco Nexus 9000 Series (Fixed 9300)ACI Mode
Catalyst 6500 Series
Catalyst 4500 Series
Catalyst 4500-X Series
Catalyst 3850 Series
Cisco Unified Computing System
Router
CRS Router Series
ASR 9000 Series Router
NCS 6000 Router
