100G QSFP28 AOC Active Optical Cable OM3 OM4 Fiber Upto 100M, Cisco Compatible

Description

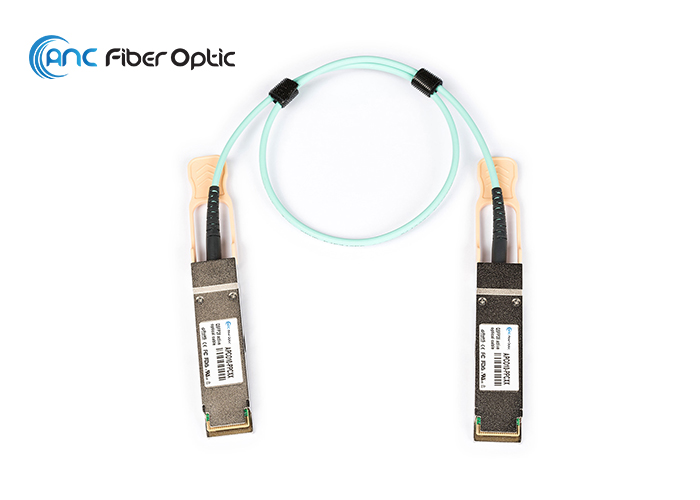

100G QSFP28 AOC Active Optical Cable manufactured by ANC International Co., Limited is an assembly of 4 full-duplex lanes and each lane is capable of transmitting data at rates up to 25.78Gb/s, providing an aggregated rate of 103Gb/s. The length is up to 70 meters using OM3 MMF and 100 meters using OM4 MMF. This 100G QSFP28 AOC cables provide an ideal alternative solution to QSFP28 DAC (direct attach copper cables) and QSFP28 transceivers of short reach while providing improved signal integrity, lower cost, and performance value. They are designed expressed for high speed, high density and low power consumption for today’s data center networking applications.

The QSFP28 AOC cables are composed of QSFP28 transceivers in both ends and OM3(OM4) multimode fiber cable in different cable length from 1 to 100 meters. This QSFP+28 AOC is one kind of parallel transceiver which provides increased port density and total system cost savings.

Features

Hot-pluggable QSFP28 form-factor connectors
4 channels full-duplex active optical cables
4x 850nm VCSEL array and PIN photo-detector array
Internal CDR circuits on both receiver and transmitter channels
Data rate up to 103.1Gbps
Power consumption < 3.5W per end
Length up to 70m (OM3) or 100m (OM4) over MMF
Operating case temperature range from 0°C to 70°C
3.3V power supply voltage
RoHS compliant (lead free)

Compliant with QSFP28 MSA and IEEE 802.3bm 100GBASE-SR4
Compliant with IEEE 802.3ba 40GBASE-SR4 and InfiniBand 4x FDR/EDR

Applications

100GBASE-SR4 Ethernet
40GBASE-SR4 Ethernet
InfiniBand 4x FDR/EDR

Cable Length

Platform Support
QSFP-100G-AOC Cisco Compatible is supported on a wide range of Cisco equipment.
Cisco Nexus N9K-X9732C-EX(NX-OS Mode)
Cisco Nexus N9K-X9432C-S(NX-OS Mode)
Cisco NCS NC55-24X100G-SE
Cisco Nexus N9K-X97160YC-EX(uplinks) (NX-OS Mode)
Cisco Nexus N9K-X9636C-R(NX-OS Mode)
Cisco Nexus N3K-C3232C
Cisco Nexus N3K-C31108PC-V
Cisco NCS-5502-SE(Fixed)
Cisco NCS-5502
Cisco NCS-5501
Cisco Nexus N3K-C31108TC-V
Cisco Nexus N9K-C9236C (NX-OS Mode)
Cisco Nexus N9K-C93108TC-X (NX-OS Mode)
Cisco NCS-5501-SE
Cisco NCS NC55-24H12F-SE(modular line cards)
Cisco NCS NC55-36X100G
Cisco Nexus N9K-C92304QC (NX-OS Mode)
Cisco Nexus N9K-C93180YC-EX (NX-OS Mode)
Cisco NCS NC55-18H18F
Cisco Nexus N9K-C92160YC-X (NX-OS Mode)
